  2. X13 4U 4GPU,X13DEG-QT-P,749TS-R2K05B,RoHS

X13 4U 4GPU,X13DEG-QT-P,749TS-R2K05B,RoHS

SYS-741GE-TNRT

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10489/image_1920?unique=f7d9088

kr 43,459.65 43459.65 NOK kr 43,459.65

kr 43,459.65

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-741GE-TNRT SuperWorkstation offers unparalleled performance for high-performance computing, AI/Deep Learning training, and advanced graphics rendering. Featuring dual 5th/4th Gen Intel® Xeon® Scalable processors, up to 4TB DDR5 RAM, and support for up to 4 double-width GPUs, this system is designed to meet the most demanding performance requirements.

    Key Features

    • 5th/4th Gen Intel®  Xeon® Scalable processor support
    • 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
    • Up to 4x double width, full length GPUs4x PCIe 5.0 x16 (double-width) slots,   3x PCIe 5.0 x16 (single-width) slots

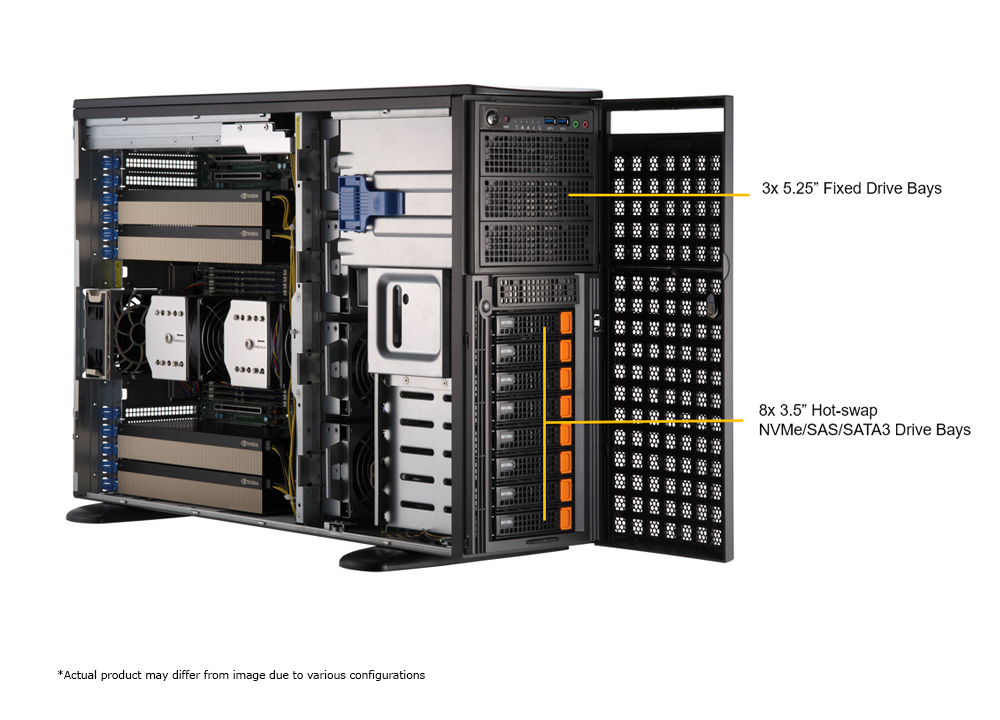

    • Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays2x M.2 NVMe  for boot drive onlyUp to 8x NVMe drives (8 NVMe drives supported by default)
    • 4 Removable heavy duty fans w/ Optimal Fan Speed Control
    • 2x 2000W (1+1) Redundant Power Supplies, Titanium Level

    Key Applications

    • High Performance Computing
    • VDI
    • AI/Deep Learning Training
    • Media/Video Streaming
    • Cloud Gaming
    • Animation and Modeling
    • Design & Visualization
    • 3D Rendering
    • Diagnostic Imaging
    • AI Training

    Description

    Accelerate your AI and deep learning training with the Supermicro SYS-741GE-TNRT SuperWorkstation. It's optimized for HPC, action-oriented AI, 3D simulation, and advanced graphic design. Powered by dual 5th/4th Gen Intel® Xeon® Scalable processors, ultra-fast M.2 NVMe PCIe 5.0 storage, and up to 4TB of DDR5 RAM, it offers flexibility to tackle complex high-performance computing demands. This workstation is ideal for design and visualization, diagnostic imaging, VDI, 3D rendering, animation, and modeling, supporting up to 4 double-width GPUs.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-741GE-TNRT
    Motherboard
    Installed Motherboard
    • Super X13DEG-QT
    Processor
    CPU
    • Dual Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 64C/128T; Up to 320MB Cache per CPU
    Note
    • Supports up to 350W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 4 double-width or 4 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: H100 NVL, H100, RTX 4000 Ada Generation, L40, RTX A5500, RTX A6000, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A30, A100
    • AMD PCIe: Instinct MI210
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional)
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
    • Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® C741
    Network Connectivity
    • 2 RJ45 10GbE with Intel® X550-AT2
    Input / Output
    Video
    • 1 VGA port(s) (Rear)
    Serial
    • 1 COM port(s) (Rear)
    Audio
    • Front Audio
    TPM
    • 1 TPM Onboard/port 80
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 8+4 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • Tower Rackmount
    Model
    • CSE-749TS-R2K05BP
    Dimensions and Weight
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29" (737 mm)
    Package
    • 27" (H) x 13" (W) x 38" (D)
    Weight
    • Gross Weight: 62 lbs (28.1 kg)
    • Net Weight: 46 lbs (20.9 kg)
    Available Color
    • Black Front & Silver Body
    Front Panel
    LED
    • Hard drive activity LED
    • Network activity LEDs
    • Power status LED
    • System Overheat & Power Fail LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 7 PCIe 5.0 x16 FHFL slots

    M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 8 bays:
    • 8 front hot-swap 3.5" NVMe/SAS/SATA drive bays

    Option A: Total 8 bays:
    • 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays

    M.2
    • 2 M.2 NVMe slots (M-key)
    System Cooling
    Fans
    • 4 heavy duty fans with optimal fan speed control
    Power Supply
    2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 265 mm

    AC Input:
    • 1000W: 100-120Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 230-240Vac / 50-60Hz

    +12V:
    • Max: 83.3A / Min: 0A (100Vac-120Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166.7A / Min: 0A (230Vac-240Vac)

    12V SB:
    • Max: 2.1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Certification:
    • Titanium Level

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13DEG-QT1Super X13DEG-QT Motherboard
    CSE-749TS-R2K05BP1Tower Chassis
    Backplane
    BPN-NVME5-749N-S818-port 3.5" LFF direct-attached HDD SAS4/NVMe Gen5 backp
    Cable
    CBL-MCIO-1240M5L4MCIOx8 (STR_pTab to LE), 40cm,30AWG,RoHS
    CBL-PWEX-1142B-401MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
    CBL-SAST-1230-1002Slimline x4 (LE) to Slimline x4 (STR),INT,30CM,100 OHM,
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-PWEX-10785PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
    Parts
    MCP-260-00180-0B1STD I/O Shield for X13DEG-QT with EMI Gasket & Black Mylar
    MCP-290-74701-0B1Black plastic top cover for SC747
    MCP-290-74703-0B1fixed 3.5" dummy cover for SC747
    MCP-290-74709-0B1Plastic feet (2 pcs/set) for 4U tower chassis, black color
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0090AP424U Active CPU HS for X13 Gen. Intel Eagle Stream Platform
    *Power Supply
    PWS-2K05A-1R21U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
    *Power Distributor
    PDB-PT747-DSG14U 4GPU support redundancy 2PWS up to 3KW output pass thr
    *Fan
    FAN-0199L4-1192x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
    FAN-0199L4-2492x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
    *Front Bezel
    MCP-210-74701-0B1SC747 plastic front bezel
    *Drive Tray(s)
    MCP-220-00073-0B3Black 5.25 drive tray w/o rail (SC747)
    MCP-220-00150-0B8NVMe Panetone 159C on Latch
    *Front Panel
    MCP-280-74702-0N1SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)

    Optional Part List

    Part Number Quantity Description
    DVD Kit
    CBL-0082L1Y SPLIT SATA POWER ADAPTER, PB FREE
    CBL-PWEX-0947Y-301MicroFit 2x2,PH3.0 to 2 1X4,PH5.08,30cm,9.5A/pin,16AWG,RoHS
    DVM-TEAC-DVDRW24-HBT1BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE
    CBL-0044L1SATA CABLE 57.5CM FLAT SS PBF.26AWG flat
    Front Bezel
    MCP-210-74703-0B1Front bezel cover (for 5.25" bay) for rackmount
    GPU Kit
    MCP-320-74901-NN1SC749 chassis rear external fan for passive GPU cooling kit
    Mounting Rails
    MCP-290-00059-0B1Rail set+handles, quick/quick, optional for 4U 17.2"W tower
    Optional Storage Controller Card + Cable(s)
    AOC-S3908L-H8IR-16DD-O18 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS
    CBL-SAST-1261-1001Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM
    Trusted Platform Module Options
    AOM-TPM-9670V-O1SPI capable vertical TPM 2.0 provisioned for server,RoHS
