  2. X13DEI-T, CSE-745BTS-R1K23BP,X13 Mainstream 4U 10G

X13DEI-T, CSE-745BTS-R1K23BP,X13 Mainstream 4U 10G

SYS-741P-TRT

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10491/image_1920?unique=f7d9088

kr 25,516.66 25516.66 NOK kr 25,516.66

kr 25,516.66

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

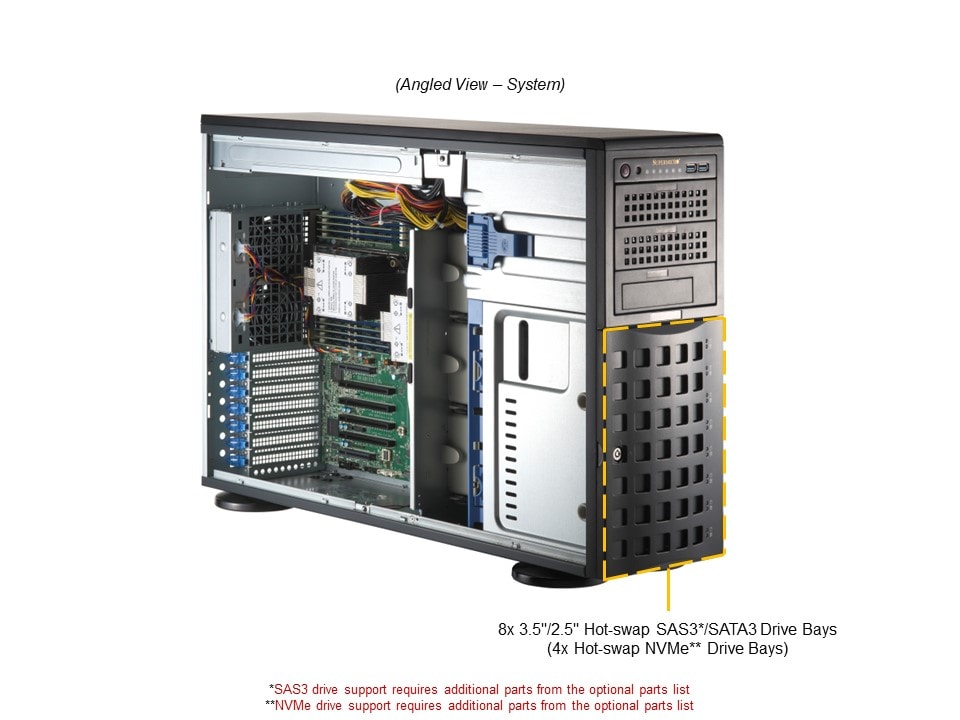

    The Supermicro SYS-741P-TRT is a highly scalable Tower/4U server, powered by Dual Socket E (LGA-4677) and supports the latest 5th/4th Gen Intel Xeon Scalable processors. Ideal for enterprise and compute-intensive applications.

    Key Features

    • Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
    • 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
    • 4 PCIe 5.0 x16 full height slot(s), 2 PCIe 5.0 x8 full height slot(s)
    • 1200W Redundant Titanium level Power Supplies

    Key Applications

    • Virtualization
    • Enterprise Server
    • Application and data serving
    • Compute Intensive Applications

    Description

    The Supermicro SYS-741P-TRT is designed for high-performance and versatile use in enterprise environments. With support for up to 4TB of DDR5 memory, multiple PCIe 5.0 slots, and powerful cooling solutions, it is ideal for virtualization, application and data serving, and compute-intensive tasks. This server comes equipped with a variety of management software to ensure optimal performance and security, including Supermicro Server Manager and Supermicro Update Manager. It also offers extensive storage options with hot-swap drive bays and redundant power supplies to maximize uptime.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-741P-TRT
    Motherboard
    Installed Motherboard
    • Super X13DEI-T
    Processor
    CPU
    • Dual Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    Note
    • Supports up to 300W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® C741
    Network Connectivity
    • 2 RJ45 10GbE
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 port(s) (front)
    • 4 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    Serial
    • 1 COM port(s) (Rear)
    DOM
    • 2 Super DOM (Disk on Module) port(s)
    TPM
    • 1 TPM Onboard/port 80
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • Tower/4U
    Model
    • CSE-745BTS-R1K23BP
    Dimensions and Weight
    Height
    • 17.8" (452 mm)
    Width
    • 7" (178 mm)
    Depth
    • 25.5" (647 mm)
    Package
    • 24.6" (H) x 14" (W) x 31.3" (D)
    Weight
    • Gross Weight: 73.5 lbs (33.9 kg)
    • Net Weight: 56 lbs (25.9 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity
    • Network activity
    • Power status
    • System information (overheat/UID)
    Buttons
    • Power On/Off
    • System Reset
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x8 FHFL slots
    • 4 PCIe 5.0 x16 FHFL slots

    M.2
    • 2 M.2 PCIe 4.0 x2 NVMe slots (M-key)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 8 bays:
    • 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays
    • 4 front hot-swap 3.5" SAS*/SATA drive bays

    Option A: Total 8 bays:
    • 4 front hot-swap 2.5" NVMe*/SAS*/SATA drive bays
    • 4 front hot-swap 2.5" SAS*/SATA drive bays

    • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 NVMe slots (M-key)
    Peripheral Bays
    • 3 5.25" DVD bays (optional)
    System Cooling
    Fans
    • 3 middle Fan(s)
    • 2 rear Fan(s)
    Power Supply
    2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1200W: 200-240Vac / 50-60Hz
    • 1200W: 200-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 100A / Min: 0A (200Vac-240Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13DEI-T1Super X13DEI-T Motherboard
    CSE-745BTS-R1K23BP1Tower/4U Chassis
    Backplane
    BPN-NVME5-745N-S818-port LFF SAS4/SAS3/SATA3 HDD / NVMe U.2 Gen5 BPN for C
    Cable
    CBL-CDAT-0845-481I2C,1x4F,PH2.5 to PH1.25,48cm,26AWG,RoHS
    CBL-SAST-1261-1001Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O
    CBL-00871CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0216L34 TO 4 PIN FAN POWER CABLE, 210MM
    CBL-0471L1USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)
    Parts
    MCP-260-00042-3N1STD I/O shield for X13 server MB with venting holes
    MCP-290-74502-0B1Plastic feet (4 pcs set) for 4U tower chassis, black color
    Manual
    MNL-2568-QRG1741P-TR(T) Quick Reference Guide
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0088P22U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
    *Power Supply
    PWS-1K23A-SQ21U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac
    *Power Distributor
    PDB-PT747-46481POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE
    *Fan
    FAN-0180L4280x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis
    FAN-0182L4380x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis
    *Drive Tray(s)
    MCP-220-00193-0N8SC743/SC745/SC822/SC823 Gen2 2.5"/3.5" 2-in-1 HDD tray
    *Air Shroud
    MCP-310-49001-0N1SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB

    Optional Part List

    Part Number Quantity Description
    4U Chassis Rail Kits
    CSE-PT26L-B14U Chassis Rail Kits SC743,745, w/ 2pcs Black Chassis Ears
    Management Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Optional 2x fixed SATA drive Kit
    1x MCP-220-00044-0N, 2xCBL-SAST-0624+1*CBL-0082L11x MCP-220-00044-0N can support 2x 2.5 inch fixed drives in 1x 5.25 inch drive bay
    Optional 8-ports SAS Raid controller kit
    1x AOC-S3908L-H8IR-16DD-O1Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
    Optional CacheVaults Kit
    1xBTR-CVPM05+1x MCP-240-00203-0N1CacheVault for Broadcom 3908/3916 with Supercap and PCI bracekt
    Optional Front Hot-Swap NVMe Kit
    1xCBL-MCIO-1260M5 for 2 U.2 NVMe Drives1NVMe Kit for front hot-swap NVMe . Max. 4 NVMe support
    Optional MCC CPU Carrier
    1x SKT-1424L-001B-FXC1CPU Carrier for Intel Socket-E ( LGA4677) E1B MCC CPU
    Optional ODD Kit
    1*DVM-TEAC-DVDRW24-HBT+1*CBL-SAST-0624+1*CBL-0082L1BLACK DVD SATA DRIVE
    Optional Trusted Platform Module
    1x AOM-TPM-9672V-FIPS-O1AOM-TPM-9672V-FIPS TPM 2.0 support FIPS
    1x AOM-TPM-9672V-O1SPI capable vertical TPM 2.0
    Optional XCC CPU Carrier
    1x SKT-1333L-0000-FXC1CPU Carrier for Intel Socket-E ( LGA4677) E1A XCC CPU
