Fanless CSE-E101-04 + X13SAN-L-WOHS

SYS-E100-13AD-L

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10393/image_1920?unique=7c1c8fe

kr 8,611.09 8611.09 NOK kr 8,611.09

kr 8,611.09

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-E100-13AD-L is engineered to handle intensive, mission-critical applications with maximum configurability and scalability. Powered by the 12th Gen Intel® Core™ i3-1215UE processor, this system supports up to 64GB DDR5 RAM, dual 2.5GbE LAN ports, and multiple display outputs, making it ideal for various industrial and IoT applications.

    Key Features

    • Alder Lake-U 12th Generation Intel® Core™i3-1215UE
    • 2x DDR5-4800MT/s Non-ECC SO-DIMM max 64GB
    • M.2 M/B/E-Key with Nano SIM Card Slot
    • 2x LAN 2.5GbE
    • Fanless (Op. Temperature 0C ~ +50C)
    • 4 Independent Displays: HDMI2.0b/1.4b + DP 1.4a (Alt mode USB Typ-C)

    Key Applications

    • Industrial Automation, Retail
    • Smart Medical Expert Systems
    • Digital Signage Kiosk, Interactive info system
    • IoT Gateway for Smart Factory
    • Smart Building, Security and Surveillance

    Description

    E100-9W-H-Front
    Despite its compact size, SYS-E100-13AD-L is designed to handle extreme in-memory computing, and mission critical apps with maximum configurability and scalability. This fanless system fits in the most compact of spaces, measuring in at only 7.6 x 1.7 x 5.9 inches and weighing slightly over 4.5lbs. This particular IoT/embedded system is optimized for industrial automation, retail, digital signage kiosk, interactive info system, smart medical expert systems, smart building, security and surveillance and more

    SYS-E100-13AD-L supports Intel’s 12th generation Intel® Celeron® 7305E, up to 64GB DDR4 non-ECC SO-DIMM, and 1 x M.2 M-Key 2242/2280 or E-Key 2230 or B-Key 2242/2280. In addition, this system comes with dual 2.5GbE LAN ports with Intel i225-IT, 2 HDMI and 2 USB Type C port, and 4 USB 2.0 ports.
    E100-9W-H-Back-Description
    This system is designed to operate in harsh environments with operating temperatures ranging from 32°F to 122°F and non-operating temperatures of -40°F to 158°F. In addition, this particular system is compliant with both IEC 60068-2-64 and IEC 60068-2-27, so they can absorb continuous vibration and shock.

    The SYS-E100-13AD-L system is perfect for those looking for an application optimized, cost-effective, and space-constrained system.

    Product Specifications

    Product SKUs
    SuperServerSYS-E100-13AD-L
    Motherboard
    Super X13SAN-L-WOHS
    Processor
    CPUSingle FCBGA-1744
    Intel® Core™ i3-1215UE
    Core CountUp to 6C/12T; Up to 10MB Cache
    NoteSupports up to 15W TDP CPUs (Air Cooled)
    System Memory
    MemorySlot Count: 2 DIMM slots/2 Channels
    Max Memory (2DPC): Up to 64GB 4800MT/s non-ECC DDR5 SO-DIMM
    View Memory Options
    Memory Voltage1.1V
    On-Board Devices
    Chipsetintel System on Chip
    Network Connectivity2 RJ45 2.5GbE with Intel® I225-IT
    View AOC Options
    Input / Output
    LAN2 RJ45 2.5 GbE LAN port(s) (Intel® I225-IT)
    USB2 USB 3.2 Gen1 Type-C port(s) (front)
    2 USB 3.2 Gen1 Type-A port(s) (front)
    4 USB 2.0 Type-A port(s) (Rear)
    Video1 HDMI 2.0b port(s) (Front)
    1 HDMI 1.4b port(s) (Front)
    2 Mini-DP 1.4 port(s) (Front)
    Serial4 COM port(s) (Rear)
    TPM1 TPM Onboard/port 80
    System BIOS
    BIOS TypeAMIUEFI
    BIOS FeaturesACPI 6.4
    SMBIOS 3.5 or later
    UEFI 2.8
    PCI F/W 3.0
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI Power Management
    CPU thermal trip support for processor protection
    Control of power-on for recovery from AC power loss
    DC 12V~24V Wide power range input
    Force power-on by jumper
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Chassis
    Form FactorFanless Embedded
    ModelCSE-E101-04

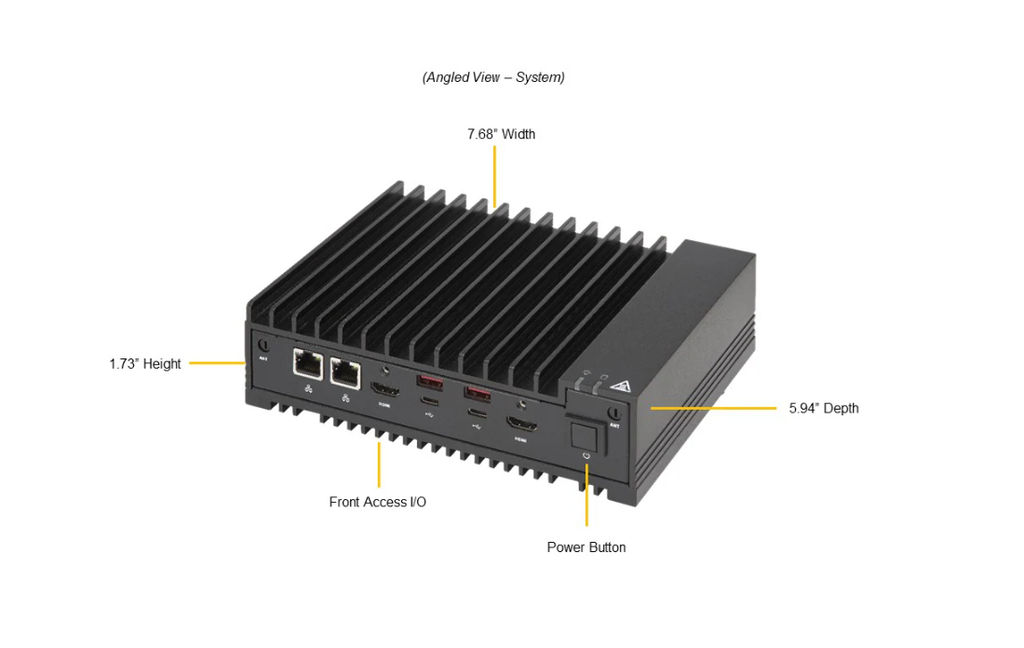

    Dimensions and Weight
    Height1.73" (44 mm)
    Width7.68" (195 mm)
    Depth5.94" (150 mm)
    Package5.12" (H) x 11.81" (W) x 11" (D)
    WeightGross Weight: 4.3 lbs (1.95 kg)
    Net Weight: 2.16 lbs (0.98 kg)
    Palletized Packing (W x H x L)54.3" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
    Available ColorBlack
    Front Panel
    LEDHDD Status
    LAN1 activity
    LAN2 activity
    Power status
    ButtonsPower On/Off
    Expansion Slots
    M.21 M.2 SATA slot(s) (B-key 2242/2280; USB 3.0)
    1 M.2 slot(s) (E-key 2230; USB 2.0)
    1 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2242/2280)
    PCI-Express (PCIe) ConfigurationView AOC Options
    Drive Bays / Storage
    M.21 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2242/2280)
    1 M.2 SATA slot(s) (B-key 2242/2280; USB 3.0)
    View M.2 Options
    System Cooling
    FansN/A
    Power Supply
    1x 84W1x 84W power supplyDimension (WxHxL)AC Input84W: 100-240Vac / 47-63Hz
    1x 84W1x 84W power supplyDimension (WxHxL)AC Input84W: 100-240Vac / 47-63Hz
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X13SAN-L-WOHS1Super X13SAN-L-WOHS Motherboard
    CSE-E101-041Fanless Embedded Chassis
    Cable
    Part NumberQuantityDescription
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    CBL-CUSB-09852USB 2.0,INT-EXT,2 PORT,TYPE-A-2X5/P2.00, 18CM
    CBL-CUSB-10471SERIAL, DB9F TO 2X5F/P2.00,INT TO EXT,FLAT, 30CM, 28AWG
    CBL-OTHR-104612x LED (green, orange) to 8P/F/P2.00 + push button switch, 32CM, 26AWG
    Power Supply
    Part NumberQuantityDescription
    MCP-250-10137-0N184W Lockable AC to DC power adapter w/o power cord - EN62368
    Heatsink / Retention
    Part NumberQuantityDescription
    MCP-350-10103-0N1for X13SAN in system
    Manual
    Part NumberQuantityDescription
    MNL-2622-QRG1E100-13AD-H/E/L/C Quick Reference Guide

    Optional Part List

    Audio Kit
    Part NumberQuantityDescription
    MCP-280-10001-0B1Audio Cable Phone Jack and Plug(3.5mm) L:100mm,HF,RoHS
    Thermal Solution
    Part NumberQuantityDescription
    MCP-270-10105-0B1FIN base bottom cover for M.2 NMVe
    MCP-270-10105-1B1FIN base bottom cover for HAILO-8 M.2 Module
