Fanless E101-01 + X11SSN-L, Core i3

SYS-E100-9S-L

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10401/image_1920?unique=a1dbe1e

kr 6,734.98 6734.9800000000005 NOK kr 6,734.98

kr 6,734.98

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E100-9S-L is a compact, fanless box PC designed for IoT edge computing applications. Powered by a 7th Generation Intel Core i3 processor, this system supports up to 32GB of DDR4 memory and provides versatile connectivity options including dual GbE LAN, multiple USB ports, and Display Port and HDMI video output.

    Key Features

    • IoT Edge Computing - Kiosk, Interactive info system - Environmental Monitor
    • 7th Generation Intel® Core™ i3-7100U Processor; Single Socket FCBGA 1356
    • System-on-Chip
    • 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E
    • Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots
    • Dual GbE LAN w/ Intel i219LM + i210IT
    • 4 COM (RS-232/422/485), 2 USB 3.0, 4 USB 2.0, 1 DIO via DB9
    • 1 Display Port, 1 HDMI port
    • Fanless design
    • Lockable 12V DC 60W power adapter

    Key Applications

    • IoT Edge Computing
    • Kiosk
    • Interactive info system
    • Environmental Monitor

    Description

    The Supermicro SYS-E100-9S-L is engineered to meet the demanding requirements of IoT edge computing, interactive kiosks, and environmental monitoring systems. Its 7th Generation Intel Core i3-7100U Processor ensures robust performance, while up to 32GB of unbuffered non-ECC DDR4 memory provides ample support for multi-tasking. This fanless design enhances reliability in various operating environments, and comprehensive connectivity options include dual LAN, various USB ports, and audio/video output capabilities. Additionally, the device features extensive I/O options such as COM ports, GPIO, and M.2 and Mini-PCIe expansion slots, making it a highly adaptable solution for multiple applications.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E100-9S-L
    • SuperServer E100-9S-L ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SSN-L-WOHS
    Processor/Cache
    CPU
    • 7th Generation Intel® Core i3-7100U Processor
    • Single Socket FCBGA 1356
    • System-on-Chip
    • CPU TDP support 15W
    System Memory
    Memory Capacity
    • Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
    Memory Type
    • DDR4 up to 2133MHz
    DIMM Sizes
    • 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Single LAN with Intel® I210IT
    • Single LAN with Intel® PHY I219LM
    Video
    • Intel® HD Graphics 620

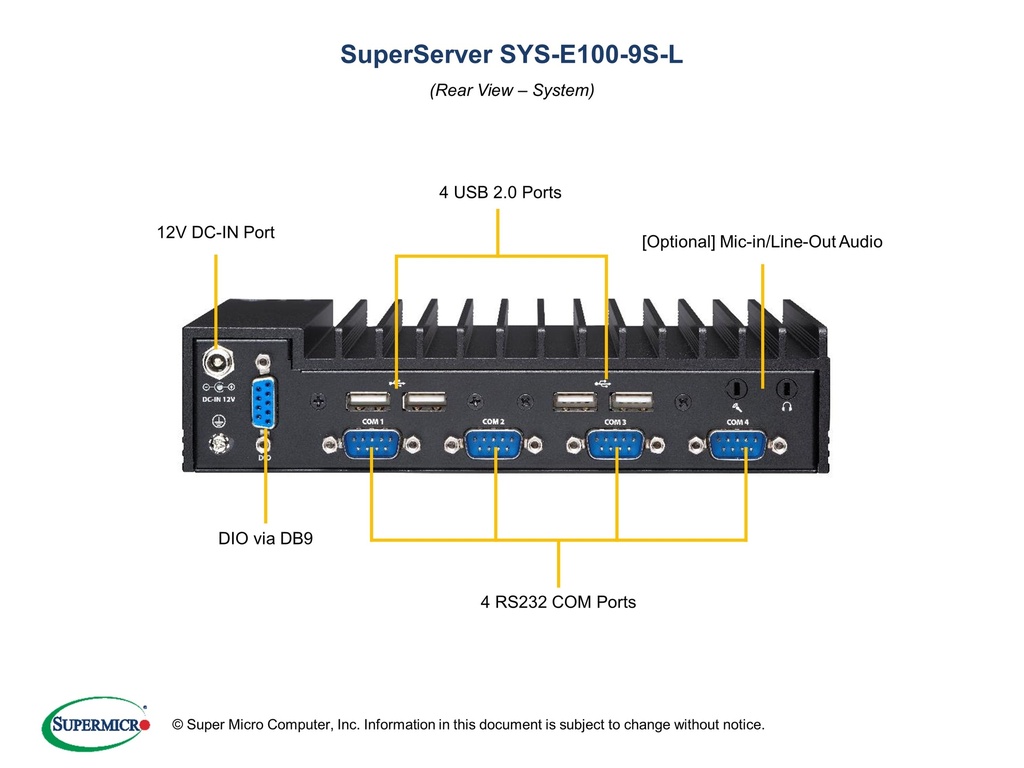

    Input / Output
    USB
    • 1 USB 3.1 (Type C)
    • 2 USB 3.0 (rear via header)
    • 4 USB 2.0 (rear via headers)
    Video Output
    • 1 DP (Display Port) port
    • 1 HDMI port
    COM Port
    • 4 COM ports (4 headers)
    • 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
    Audio
    • 1 HD Audio header (Mic-in/Line-Out) (option)
    Others
    • 8-bit configurable GPIO via DB9
    Chassis
    Form Factor
    • 3.5" SBC
    Model
    • CSE-E101-01
    Dimensions
    Width
    • 7.68" (195mm) / 11.81" (300mm) - pkg.
    Height
    • 1.73" (44mm) / 5.12" (130mm) - pkg.
    Depth
    • 5.94" (151mm) / 11" (279mm) - pkg.
    Weight
    • Net Weight: 2.65 lbs (1.2 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED and Hard drive activity LED
    Expansion Slots
    PCI-Express
    • 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2, 1 SATA Gen3)
    M.2
    • Interface: SATA and PCIe 3.0 x1 and USB 2.0
    • Form Factor: B-Key 2280
    Drive Bays
    Internal
    • 1 M.2 2280 B-Key for SATA or PCIe SSD
    System Cooling
    Fans
    • Fan-less design
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • +12V DC Power Input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    • CPU thermal trip support for processor protection
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
    General
    Power Supply
    • Lockable 12V DC 60W power adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SSN-L-WOHS1Super X11SSN-L-WOHS Motherboard
    CSE-E101-011Chassis for Embedded 3.5" SBC
    Power Adapter
    MCP-250-10134-0N160W DC power adapter with US power cord 18AWG 6ft (0-40°C)
