Fanless Industrial System X11SWN-H-WOHS + CSE-E101-IA2

SYS-E100-9W-IA-H

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10379/image_1920?unique=a1dbe1e

kr 11,767.15 11767.15 NOK kr 11,767.15

kr 11,767.15

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E100-9W-IA-H is a compact, fanless embedded system designed for industrial automation and machine control. It features the 8th Generation Intel® Core™ i7-8665UE Processor and supports various expansion options including M.2 slots.

    Key Features

    • 8th Generation Intel® Core™ i7-8665UE Processor; Single Socket FCBGA-1528
    • System-on-Chip
    • M.2: M-Key 2242/2280, E-Key 2230, B-Key 2242/2280
    • Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
    • Dual GbE LAN w/ Intel i219LM + i210IT
    • 4 COM (RS-232/422/485), 4 USB 3.1, 4 USB 2.0, 1 DIO via DB9
    • 1 HDMI and 1 Display Port
    • Fanless design

    Key Applications

    • Industrial Automation & Control
    • Machine Automation

    Description

    The Supermicro SYS-E100-9W-IA-H is engineered for industrial environments, equipped with the 8th Generation Intel® Core™ i7-8665UE Processor, and supports up to 64GB of DDR4 memory. Its fanless design ensures reliable operation in harsh conditions, while multiple COM and USB ports, dual GbE LAN, and HDMI/DisplayPort provide versatile connectivity options. Ideal for industrial automation and machine control, this system ensures robust performance and flexibility with various expansion slots and a durable chassis.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E100-9W-IA-H
    • SuperServer E100-9W-IA-H ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SWN-H-WOHS
    Processor/Cache
    CPU
    • 8th Generation Intel® Core™ i7-8665UE Processor
    • Single Socket FCBGA-1528
    • System-on-Chip
    • CPU TDP support 15W
    Note
    • BIOS version 2.0 or above is required
    System Memory
    Memory Capacity
    • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots
    Memory Type
    • DDR4 up to 2400MHz
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Single LAN with Intel® I210IT
    • Single LAN with Intel® PHY I219LM
    Audio
    • ALC 888S HD Audio
    Video
    • Intel® UHD Graphics 620
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)
    Video Output
    • 1 HDMI and 1 Display Port
    COM Port
    • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
    Audio
    • 1 HD Audio header(Mic-in/Line-Out) (option)
    Others
    • 8-bit configurable GPIO via DB9
    • 1 TPM Chip
    Chassis
    Form Factor
    • 3.5" SBC
    Model
    • CSE-E101-IA2
    Dimensions
    Width
    • 7.64" (194mm) / 11.81" (300mm) - pkg.
    Height
    • 4.52" (115mm) / 5.12" (130mm) - pkg.
    Depth
    • 4.96" (126mm) / 11" (279mm) - pkg.
    Weight
    • Gross Weight: 4.3 lbs (1.95 kg)
    • Net Weight: 3.7 lbs (1.68 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED and Hard drive activity LED
    Expansion Slots
    M.2
    • Key: B-Key, M-Key, E-Key
    • M.2 2242/3042/2280 B-Key (USB 3.0/2.0 x1, SATA Gen3 x1) with nano SIM holder
    • M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2)
    • M.2 2242/2280 M-Key (PCI-E 3.0 x4, SATA Gen 3 x1), NVMe support
    System Cooling
    Fans
    • Fan-less design
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    • vPro
    • AMT
    Power Configurations

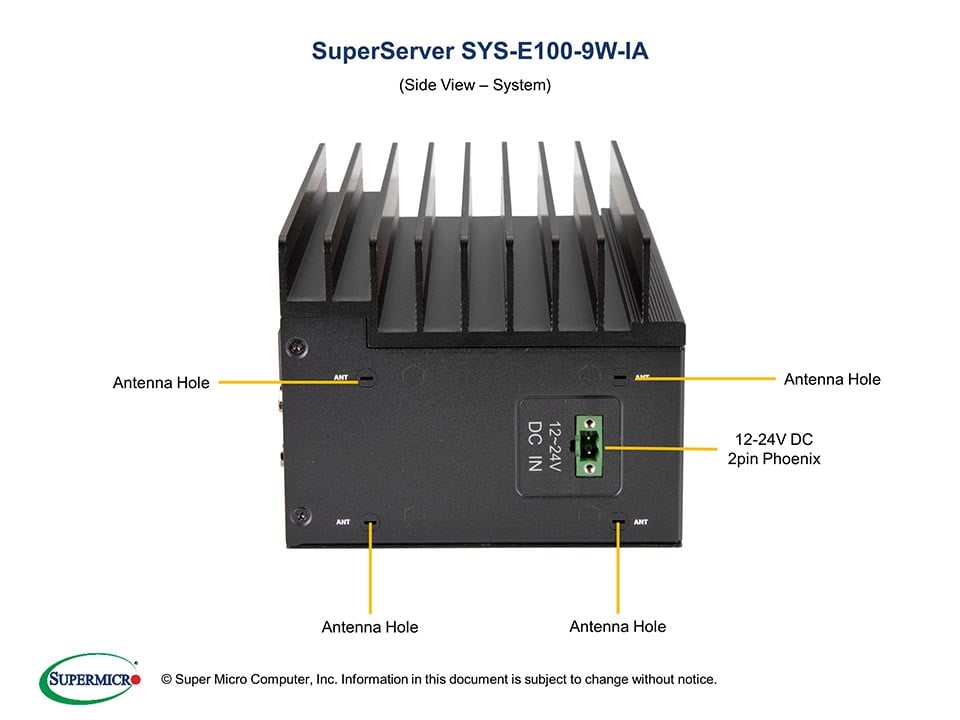

    • +12V ~ +24V DC Wide power range input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    • CPU thermal trip support for processor protection
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
    • Operational Shock, IEC 60068-2-27, 30G, half sine, 11msThe use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
    General
    Power Supply
    • 12V DC 60W power adapter with Terminal Block

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SWN-H-WOHS1Super X11SWN-H-WOHS Motherboard
    CSE-E101-IA21Fanless Industrial Enclosure for 3.5" motherboard
    Power Adapter
    MCP-250-10134-0N160W 12V 3.33A, AC to DC power adapter w/ terminal block,HF,R
