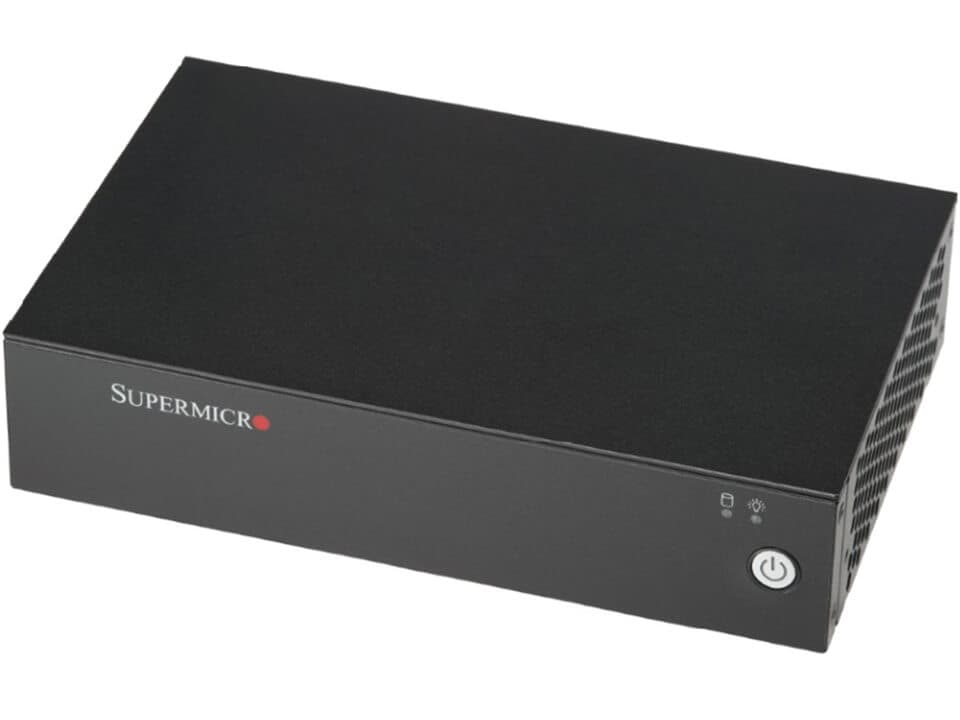

CSE-E102TF2 + X13SRN-E, cost effective Box PC.

SYS-E102-13R-E

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10403/image_1920?unique=dec9d2d

kr 9,911.14 9911.14 NOK kr 9,911.14

kr 9,911.14

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-E102-13R-E is a versatile and robust IoT gateway designed for smart retail, inference AI edge computing, and digital signage. Powered by Intel® Raptor Lake-P I5-1350PE processor, it offers reliable performance, dual channel DDR5 memory support, dual 2.5GbE LAN ports, and extensive I/O options including USB 3.2 Gen2, HDMI, and DisplayPort interfaces.

    Key Features

    • Intel® Intel® Raptor Lake-P I5-1350PE 12C/16T Processor
    • Dual Channel DDR5 4800MHz SO-DIMM, up to 64GB
    • 2x 2.5GbE LAN Ports
    • 1x 2.5” 7mm Storage Drive
    • 1x M.2 M-Key 2242/2280 (PCIe x4), 1x M.2 E Key 2230, 1x M.2 B-key 2242/3042/2280
    • 4x USB 3.2 Ports Gen2, 2x HDMI Port, 2x DisplayPort (2x USB type-C for USB & DP)

    Key Applications

    • IoT Gateway
    • Smart Retail
    • Inference AI edge compute
    • Medical/Education Signage

    Description

    The Supermicro SYS-E102-13R-E is designed to meet the demanding requirements of modern IoT applications. It features a high-performance Intel® Raptor Lake-P I5-1350PE 12C/16T processor, capable of supporting up to 28W TDP for air-cooled environments. The system supports up to 64GB of DDR5 4800MHz memory across two SO-DIMM slots. For storage, it accommodates a 2.5” SATA drive and multiple M.2 slots for NVMe drives. Connectivity options include dual 2.5GbE LAN ports provided by Intel® I226-IT, and a variety of USB and video ports. Management and security are comprehensive with trusted platform module (TPM) 2.0 and support for a range of Supermicro management software packages like SuperCloud Composer, SSM, and others. The compact fan-based chassis makes it suitable for a variety of industrial applications including smart retail, inference AI edge computing, and digital signage.

    Product Specifications

    Product SKUs
    SuperServerSYS-E102-13R-E
    Motherboard
    Super X13SRN-E-WOHS
    Processor
    CPUSingle processor(s)
    Core Count12C/24T; 12MB Cache
    NoteSupports up to 28W TDP CPUs (Air Cooled)
    System Memory
    MemorySlot Count: 2 DIMM slots
    Max Memory (2DPC): 64GB 4800MT/s non-ECC DDR5 SO-DIMM
    View Memory Options
    Memory Voltage1.1V
    On-Board Devices
    SATASATA (6Gbps)
    ChipsetIntel® System on Chip
    Network Connectivity2 RJ45 2.5GbE with Intel® I226-IT
    View AOC Options
    Input / Output
    LAN2 RJ45 2.5 GbE LAN port(s)
    USB2 USB 3.2 Gen2 Type-A port(s) (Rear)
    2 USB 3.2 Gen2 Type-C port(s) (Rear)
    Video1 HDMI 2.0b port(s) (Rear)
    1 HDMI 1.4b port(s) (Rear)
    2 DisplayPort over USB Type-C 1.4 port(s) (Rear)
    System BIOS
    BIOS TypeAMIUEFI
    BIOS FeaturesACPI 6.4
    SMBIOS 3.5 or later
    UEFI 2.8B
    PCI F/W 3.3
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsACPI Power Management
    +12-24V DC Power Input
    Control of power-on for recovery from AC power loss
    Wake-on-LAN
    Force power-on by jumper
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Chassis
    Form FactorFan-based Embedded
    ModelCSE-E102TF2
    Dimensions and Weight
    Height1.72" (44 mm)
    Width7.48" (190 mm)
    Depth4.72" (120 mm)
    Package5.12" (H) x 11.81" (W) x 11.02" (D)
    WeightGross Weight: 4.5 lbs (2 kg)
    Net Weight: 2.65 lbs (1.2 kg)
    Palletized Packing (W x H x L)46.5" (1180 mm) x 39.4" (1000 mm) x 37.4" (950 mm)
    Available ColorBlack
    Front Panel
    LEDHDD Status
    Power status
    ButtonsPower On/Off
    Expansion Slots
    M.21 M.2 NVMe slot(s) (E-key 2230)
    1 M.2 NVMe slot(s) (B-key 2242/2280/3042)
    PCI-Express (PCIe) ConfigurationView AOC Options
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 1 bay(s)1 internal fixed 2.5" SATA drive bay(s)
    M.21 M.2 NVMe slot(s) (M-key 2280)
    View M.2 Options
    System Cooling
    Fans1x 4-PIN PWM 40x40x15mm Fan(s)
    Power Supply
    1x 84W1x 84W power supplyDimension (WxHxL)AC Input84W: 100-240Vac / 47-63Hz
    1x 84W1x 84W power supplyDimension (WxHxL)AC Input84W: 100-240Vac / 47-63Hz
    Operating Environment
    Environmental Spec.Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X13SRN-E-WOHS1Super X13SRN-E-WOHS Motherboard
    CSE-E102TF21Fan-based Embedded Chassis
    Cable
    Part NumberQuantityDescription
    CBL-PWCD-0260-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    Fan
    Part NumberQuantityDescription
    FAN-0131L4140x40x15 mm, 12K RPM, Cooling Fan for SYS-E102-13R,RoHS
    Power Supply
    Part NumberQuantityDescription
    MCP-250-10137-0N184W Lockable AC to DC power adapter w/o power cord - EN62368
    Heatsink / Retention
    Part NumberQuantityDescription
    SNK-C0126PL-1168W x 128L x 18.7H mm, Al+Cu+HP, Screws, Grease, Nickel

    Optional Part List

    Cable
    Part NumberQuantityDescription
    CBL-PWEX-1030-SATA power
    CBL-SAST-0881-SATA signal
    Dual System Tray &  Sliding Rail Kit
    Part NumberQuantityDescription
    MCP-290-10119-0B-MCP-290-10119-0B:Dual System Tray
    MCP-120-10202-0B-MCP-120-10202-0B:Sliding Rail Kit
    M.2 heatsink
    Part NumberQuantityDescription
    SNK-C0160L1M.2 heatsink interferes with the 2.5" SSD, you can only choose one between M.2 heatsink and 2.5" SSD.
    Mounting Clip for DIN Rail
    Part NumberQuantityDescription
    MCP-290-10201-0N-Mounting Clip for DIN Rail
    Wall mount/VESA mount
    Part NumberQuantityDescription
    MCP-290-10113-0B-Wall mount/VESA mount
