  2. Parker Ridge, A3SPI-4C-HLN4F, 101F, RoHS

Parker Ridge, A3SPI-4C-HLN4F, 101F, RoHS

SYS-E200-12A-4C

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10418/image_1920?unique=f7d9088

kr 8,691.93 8691.93 NOK kr 8,691.93

kr 8,691.93

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E200-12A-4C offers robust performance with its Intel® Atom® Parker Ridge processor C5315, and supports up to 128GB ECC RDIMM DDR4-2400MHz memory. Featuring multiple LAN ports, IPMI management, and a lockable 12V DC 150W power adapter, it's perfect for various applications.

    Key Features

    • Optional Wall / Rack Mount Bracket, Dual System Tray
    • Intel® Atom® Parker Ridge processor C5315, TDP 38W
    • Up to 128GB ECC RDIMM DDR4-2400MHz, in 2 DIMM slots
    • 1x M.2 B-Key 3052, 1x M.2 M-Key 2280
    • 1x dedicated LAN for IPMI, 4x GbE RJ45 LAN ports, 2x 10GbE SFP+ LAN ports
    • Lockable 12V DC 150W Power Adapter
    • Intel® Quick Assist Technology
    • VGA via BMC, 2 USB 3.0 ports

    Key Applications

    • Virtualization Server
    • Virtual-CPE White Box
    • Entry-level Network Appliance

    Description

    The Supermicro SYS-E200-12A-4C is a compact mini-ITX system that caters to diverse applications such as virtualization servers, entry-level network appliances, and virtual-CPE white boxes. Powered by Intel® Atom® Parker Ridge processor C5315, it supports up to 128GB ECC RDIMM DDR4-2400MHz, ensuring high reliability and performance. The system includes 1 M.2 B-Key 3052 slot, 1 M.2 M-Key 2280 slot, and various network connectivity options including 4x GbE RJ45 LAN ports and 2x 10GbE SFP+ LAN ports, making it highly versatile. It also features IPMI management, VGA via BMC, and 2 USB 3.0 ports. The lockable 12V DC 150W power adapter ensures secure and reliable power supply, while Intel® Quick Assist Technology enhances system performance.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E200-12A-4C
    Motherboard
    Installed Motherboard
    • Super A3SPI-4C-LN6PF
    Processor
    CPU
    • Single FCBGA-2106
    • Intel® Atom® processor C5315
    Core Count
    • 4C/8T; 9MB Cache
    Note
    • Supports up to 38W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 2 DIMM slots
    • Max Memory (2DPC): 128GB 2400MT/s ECC DDR4 RDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® SoC
    Network Connectivity
    • 4 RJ45 1GbE with Intel® C5000 SoC
    • 2 SFP+ 10GbE with Intel® C5000 SoC
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 SFP+ 10 GbE LAN port(s)
    • 4 RJ45 1 GbE LAN port(s)
    USB
    • 2 USB 3.0 port(s)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB UEFI
    BIOS Features
    • UEFI 2.7
    • ACPI 6.0 or later
    • SMBIOS 3.0 or later
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • +12V DC Power Input
    • CPU thermal trip support for processor protection
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Chassis
    Form Factor
    • Mini-ITX
    Model
    • CSE-101F

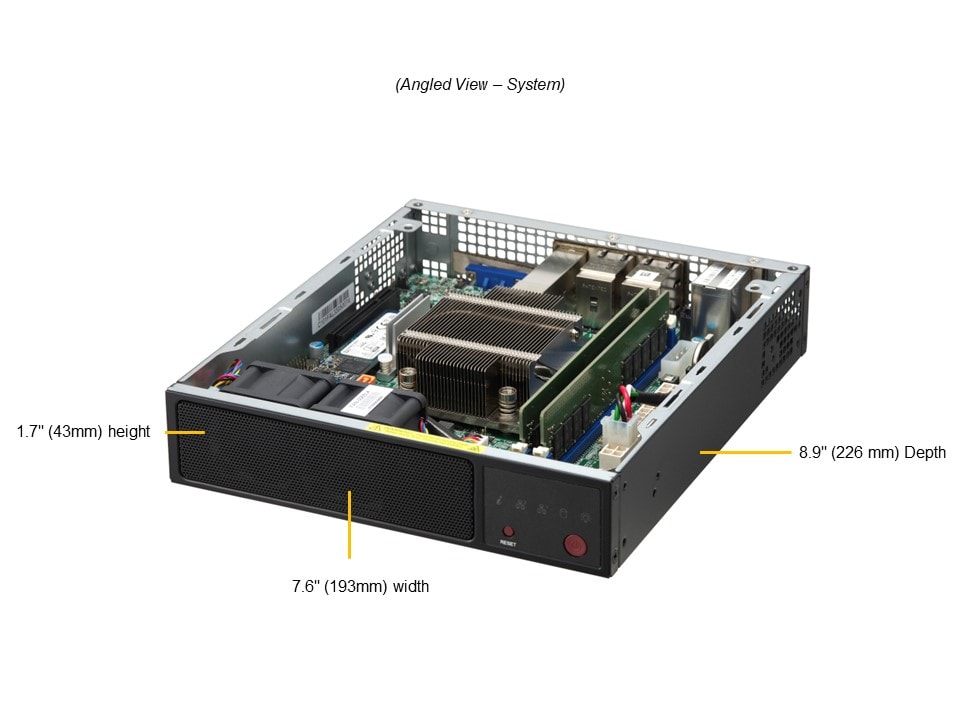

    Dimensions and Weight
    Height
    • 1.69" (43 mm)
    Width
    • 7.68" (195 mm)
    Depth
    • 8.89" (225.8 mm)
    Package
    • 11.22" (H) x 14.96" (W) x 5.47" (D)
    Weight
    • Gross Weight: 7.5 lbs (3.4 kg)
    • Net Weight: 2.76 lbs (1.25 kg)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LED
    • Unit Identification (UID) LED
    Expansion Slots
    M.2
    • 1 M.2 NVMe/SATA slot (B-key 3052)
    PCI-Express (PCIe) Configuration
    Drive Bays / Storage
    M.2
    • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280)
    Drive Bays Configuration
    System Cooling
    Fans
    • 2x 4-PIN PWM 40x40x28mm Fan(s)
    Power Supply
    1x 150W power supply
    Dimension (WxHxL):
    AC Input:
    • 150W: 100-240Vac / 47-63Hz

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A3SPI-4C-LN6PF1Super A3SPI-4C-LN6PF Motherboard
    CSE-101F1Mini-ITX Chassis
    Fan
    FAN-0065L414028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Power Supply
    MCP-250-10128-0N1150W Lockable Power Adapter with US power cord
    Parts
    MCP-260-00175-0B11U E300/E200 I/O Shield for A3SPI with EMI Gasket

    Optional Part List

    Part Number Quantity Description
    Dual System Tray Bracket
    MCP-290-10119-0B1Dual System Tray Bracket
    Mounting Brackets
    MCP-290-10111-0B1Wall-Mount Bracket Kit
    Rack Mounting Brackets
    MCP-290-10110-0B1Rack Bracket
