Xeon ICX-D, X12SDV-4C-SPT4F, 101F, RoHS

SYS-E200-12D-4C

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10397/image_1920?unique=7c1c8fe

kr 12,455.33 12455.33 NOK kr 12,455.33

kr 12,455.33

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-E200-12D-4C Mini-ITX server offers impressive performance and versatility with Intel Xeon D-1718T processor, up to 128GB DDR4 memory, and extensive networking options. Ideal for a range of embedded and security applications.

    Key Features

    • Intel® Xeon® Processor D-1718T, CPU TDP 46W
    • 2 DIMMs Slots; Up to 128GB DDR4-2666 ECC and Non-ECC RDIMM/UDIMM
    • 1x dedicated LAN for IPMI2x 10GbE Base-T LAN ports2x 25GbE SFP28 LAN ports
    • 1 M.2 PCIe 4.0 x4/SATA 3.0, M-Key 2280

    Key Applications

    • Virtualization Server
    • Firewall Applications
    • Network Security Appliance
    • Embedded Networking Applications

    Description

    Supermicro SYS-E200-12D-4C is a powerful Mini-ITX server designed for high performance and versatility. Equipped with the Intel® Xeon® Processor D-1718T (4C/8T, 10MB Cache, TDP 46W), this server supports up to 128GB DDR4-2666 ECC and Non-ECC RDIMM/UDIMM memory. The extensive network connectivity includes 1x dedicated LAN for IPMI, 2x 10GbE Base-T LAN ports, and 2x 25GbE SFP28 LAN ports. Additionally, it features 1 M.2 PCIe 4.0 x4/SATA 3.0, M-Key 2280 slot, and comprehensive system management and security features, making it suitable for virtualization servers, firewall applications, network security appliances, and embedded networking applications.

    Product Specifications

    Product SKUs
    SuperServerSYS-E200-12D-4C
    Motherboard
    Super X12SDV-4C-SPT4F
    Processor
    CPUSingle processor(s)
    Intel® Xeon® Processor D-1718T
    Core CountUp to 4C/8T; Up to 10MB Cache
    NoteSupports up to 46W TDP CPUs (Air Cooled)
    System Memory
    MemorySlot Count: 2 DIMM slots
    Max Memory (1DPC): Up to 128GB 2933MT/s ECC/non-ECC DDR4 RDIMM/UDIMM
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices
    ChipsetIntel® SoC
    Network Connectivity2 RJ45 10GbE with Intel® X550-AT2
    2 SFP28 25GbE
    1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
    View AOC Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
    2 SFP28 25 GbE LAN port(s)
    2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2)
    USB2 USB 3.0 Type-A port(s) (Rear)
    Video1 VGA port(s) (Rear)
    System BIOS
    BIOS TypeAMI 32MB SPI Flash
    BIOS FeaturesACPI 6.0
    Plug and Play (PnP)
    Riser Card audio detection support
    SMBIOS 3.0 or later
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsPower-on mode for AC power recovery
    +12V DC Power Input
    CPU thermal trip support for processor protection
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    Chassis
    Form FactorMini-ITX
    ModelCSE-101F
    Dimensions and Weight
    Height1.69" (43 mm)
    Width7.68" (195 mm)
    Depth8.89" (225.8 mm)
    Package11.22" (H) x 14.96" (W) x 5.47" (D)
    WeightGross Weight: 7.5 lbs (3.4 kg)
    Net Weight: 2.76 lbs (1.25 kg)
    Available ColorBlack

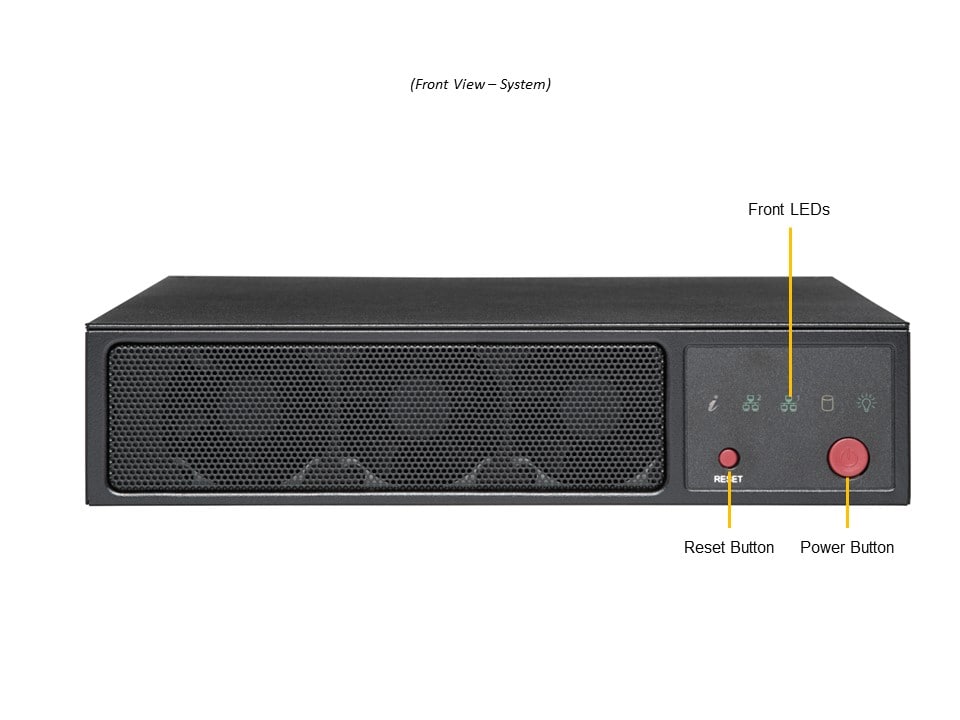

    Front Panel
    ButtonsPower On/Off button
    System Reset button
    LEDUnit Identification (UID) LED
    Drive Bays / Storage
    M.21 M.2 PCIe 4.0 x4 NVMe/SATA slot(s) (M-key 2280)
    View M.2 Options
    System Cooling
    Fans3x 4-PIN PWM 40x40x28mm Fan(s)
    Power Supply
    1x 180W1x 180W power supplyDimension (WxHxL)AC Input180W: 100-240Vac / 47-63Hz
    1x 180W1x 180W power supplyDimension (WxHxL)AC Input180W: 100-240Vac / 47-63Hz
    Operating Environment
    Environmental Spec.Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X12SDV-4C-SPT4F1Super X12SDV-4C-SPT4F Motherboard
    CSE-101F1Mini-ITX Chassis
    Fan
    Part NumberQuantityDescription
    FAN-0065L424028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Power Supply
    Part NumberQuantityDescription
    MCP-250-10133-0N1180W DC power adapter with US power cord 18AWG 6ft
    Manual
    Part NumberQuantityDescription
    MNL-2653-QRG1E200-12D-4C/8C/10C Quick Reference Guide
