Xeon D, X10SDV-6C-TLN4F, 101F
SYS-E200-8D
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-E200-8D is a high-performance and compact 1U mini-server designed for embedded networking applications, network security appliances, firewalls, and virtualization servers. Powered by the Intel® Xeon® processor D-1528, it supports up to 128GB of DDR4 ECC RDIMM memory and features comprehensive I/O options including dual 10GbE, dual GbE LAN ports, and dedicated IPMI LAN.
Key Features
- Embedded Networking Applications - Network Security Appliance - FireWall Applications - Virtualization Server
- Intel® Xeon® processor D-1528, Single socket FCBGA 1667; 6-Core, 12 Threads, 35W
- System on Chip
- 2.5" fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory)
- Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
- M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
- 2 10GbE, 2 GbE LAN ports, and dedicated LAN for IPMI 2.0
- VGA via BMC, 2 USB 3.0 ports
- Passive CPU heat sink and 2x 40mm chassis fans
- DC power adapter
Key Applications
- Embedded Networking Applications
- Network Security Appliance
- FireWall Applications
- Virtualization Server
Description
The Supermicro SYS-E200-8D offers robust performance with the Intel® Xeon® processor D-1528, featuring 6 cores and 12 threads. Its system memory supports up to 128GB DDR4 ECC RDIMM or 64GB ECC/non-ECC UDIMM across four DIMM sockets. The server includes a variety of expansion options with an M.2 PCI-E 3.0 x4 slot and numerous I/O ports such as 2 USB 3.0 ports, 2 RJ45 Gigabit Ethernet ports, 2 RJ45 10GBase-T ports, and 1 VGA port. It is housed in a mini-1U form factor and includes passive cooling with two 40mm fans and a lockable 12V DC 84W power adapter.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-E200-8D |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor/Cache | |
| CPU |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Graphics |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Display |
|
| DOM |
|
| TPM |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions | |
| Width |
|
| Height |
|
| Depth |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| M.2 |
|
| Drive Bays | |
| Internal |
|
| System Cooling | |
| Fans |
|
| System BIOS | |
| BIOS Type |
|
| BIOS Features |
|
| Management | |
| Software |
|
| Power Configurations |
|
| Fan |
|
| Operating Environment / Compliance | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Power Supply |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X10SDV-6C-TLN4F | 1 | Super X10SDV-6C-TLN4F Motherboard |
| CSE-101F | 1 | Embedded Mini-ITX Chassis |
| Power Adapter | ||
| MCP-250-10137-0N | 1 | Lockable 12V DC 84W power adapter |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Chassis Parts | ||
| MCP-290-10110-0B | - | CSE-101F Rackmount kit |
| Cable | ||
| CBL-CUSB-0975 | - | RJ45 SERIAL Cable for Console |
| Fan | ||
| FAN-0065L4 | - | 4028mm 13K RPM 4-PIN PWM FAN |

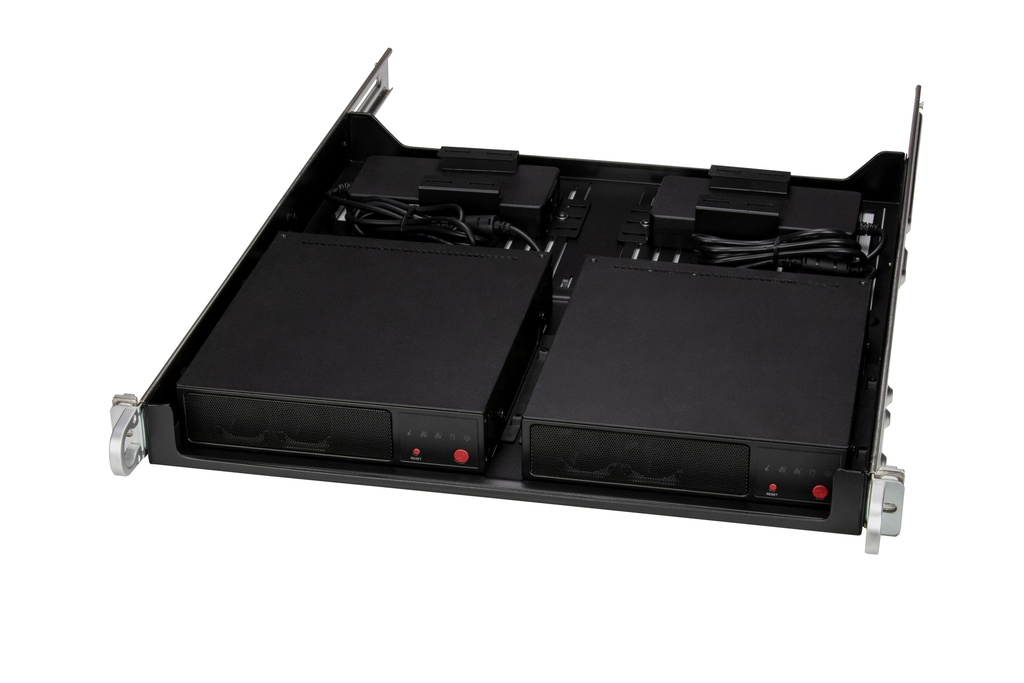

| Dual System Tray | ||
| MCP-290-10108-0B | - | Dual system tray for Mini-ITX system |
