  1. All Products
  2. Denverton, A2SDi-4C-HLN4F, 101F, RoHS

Denverton, A2SDi-4C-HLN4F, 101F, RoHS

SYS-E200-9A

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10420/image_1920?unique=f7d9088

kr 5,629.42 5629.42 NOK kr 5,629.42

kr 5,629.42

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E200-9A delivers extreme in-memory computing and mission-critical performance in a compact 7.6" x 1.7" x 8.9" chassis. Ideal for virtualization, v-CPE, and network appliance applications.

    Key Features

    • Virtualization Server - Virtual-CPE White Box - Entry-level Network Appliance
    • Intel® Atom® processor C3558, Single socket FCBGA 1310
    • System on Chip
    • 1 fixed 2.5" SSD bay with bracket (7mm drive recommended; 9.5mm drive can be used with Low- Profile Memory)
    • Up to 256GB ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
    • M.2 PCI-E 3.0 x2 and SATA, M Key 2242/2280
    • 4 GbE LAN ports with C3000 SoC, dedicated LAN for IPMI 2.0
    • VGA via BMC, 2 USB 2.0 ports
    • 2x 40mm chassis fans
    • 60W lockable power adapter

    Key Applications

    • Virtualization
    • Virtual-CPE
    • Network Appliance
    • In-memory Computing
    • Mission-critical Apps
    • Embedded Systems

    Description

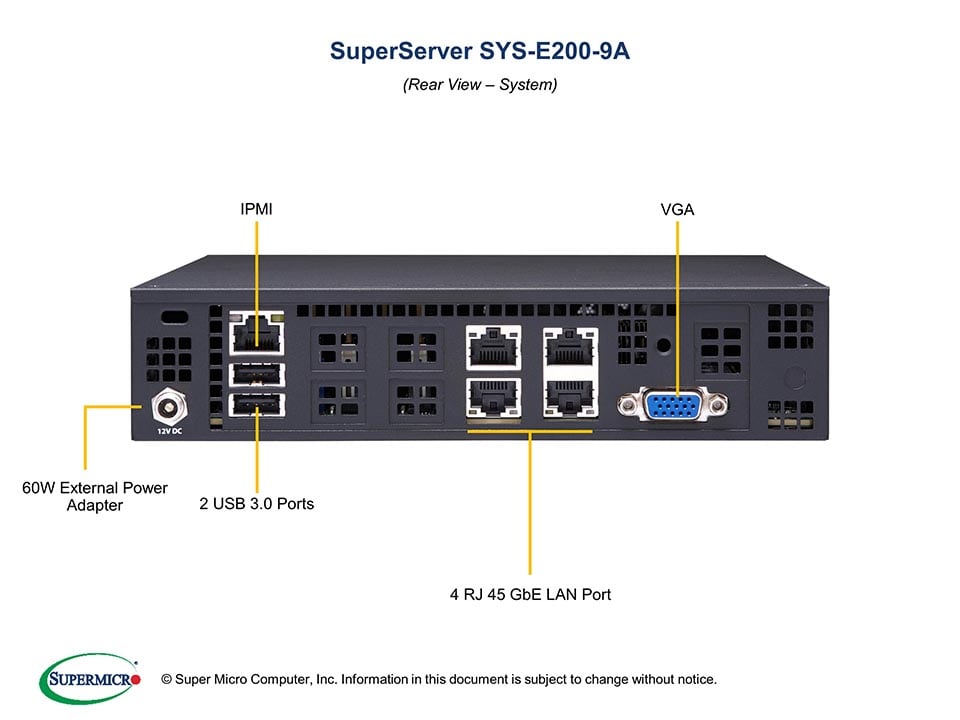

    The Supermicro SYS-E200-9A is designed for extreme in-memory computing and mission-critical applications. Ideal for virtualization, v-CPE, and network appliance, this compact system measures 7.6" x 1.7" x 8.9" and weighs 6.5 lbs. It features an Intel® Atom® processor C3558, up to 256GB DDR4 RDIMM in 4 DIMM slots, and supports 1 2.5" drive bay. It also includes quad 1GbE LAN ports with 1 dedicated LAN for IPMI, 1 VGA port, and 2 USB 3.0 ports.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E200-9A
    • SuperServer E200-9A ( Black )
    Motherboard
    Installed Motherboard
    • Super A2SDi-4C-HLN4F
    Processor/Cache
    CPU
    • Intel® Atom® processor C3558
    • FCBGA 1310
    • CPU TDP support 16W
    System Memory
    Memory Capacity
    • 4x DDR4 DIMM sockets
    • Supports up to 256GB DDR4 ECC RDIMM
    • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
    Memory Type
    • 2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors(using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 8 SATA3 (6Gbps) ports
    Network Controllers
    • Quad Gigabit Ethernet LAN via Intel® C3000 SoC
    • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    • 1 Realtek RTL8201N PHY (dedicated IPMI)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • Aspeed AST2400
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 2.0 ports (rear)
    Display
    • 1 VGA port
    DOM
    • 1 SuperDOM (Disk on Module) power connector
    TPM
    • TPM 2.0 header
    Chassis
    Form Factor
    • Mini-1U
    Model
    • CSE-101F
    Dimensions
    Width
    • 7.6" (193mm) / 15" (381mm) - pkg.
    Height
    • 1.7" (43mm) / 10.87" (276mm) - pkg.
    Depth
    • 8.9" (226mm) / 5.59" (142mm) - pkg.
    Weight
    • Gross Weight: 6.5 lbs (2.95 kg)
    • Net Weight: 3.0 lbs (1.36 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED (Hard drive activity LED)
    Expansion Slots
    M.2
    • Interface: PCI-E 3.0 x2 or SATA3
    • Form Factor: M Key 2242/2280
    Drive Bays
    Internal
    • 1 fixed 2.5" SSD bay with bracket (7mm drive recommended; 9.5mm drive can be used with Low-Profile memory)
    System Cooling
    Fans
    • 2x 40mm chassis fans
    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS
    BIOS Features
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 2.8
    • UEFI 2.4
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI / APM Power Management
    • CPU Fan auto-off in sleep mode
    • Power-on mode for AC power recovery
    Fan
    • Fans with tachometer status monitoring
    • Status monitor for speed control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Power Supply
    • 60W lockable power adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-A2SDi-4C-HLN4F1Super A2SDi-4C-HLN4F Motherboard
    CSE-101F1Embedded Server BOX for Mini-ITX 1U w/o PWS
    FAN 1
    FAN-0065L414028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Power Supply
    MCP-250-10134-0N160W DC power adapter with US power cord 18AWG 6ft

    Optional Part List

    Part Number Quantity Description
    Dual System Tray
    MCP-290-10108-0B-Dual system tray for Mini-ITX system
    Chassis Parts
    MCP-290-10110-0B-CSE-101F Rackmount kit
    Cable
    CBL-CUSB-0975-RJ45 SERIAL Cable for Console
