CSE-101S, X11SBA-LN4F

SYS-E200-9B

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10415/image_1920?unique=f7d9088

kr 4,447.63 4447.63 NOK kr 4,447.63

kr 4,447.63

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E200-9B is a high-performance, compact Embedded Mini ITX Box. It features an Intel Pentium Processor N3710, support for up to 8GB DDR3 memory, and multiple I/O ports.

    Key Features

    • Compact Embedded Mini ITX Box - Long Life Cycle Support - Digital Signage, Indoor Kiosk
    • Intel® Pentium® Processor N3710, Quad-Core (6W, 4C); Socket FCBGA 1170
    • System-on-Chip
    • 1x 2.5" internal drive bay
    • Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 socket
    • 1x SuperDOM, 1x mSATA slot, 1x TPM 1.2 header
    • I/O ports: 4x GbE, 1x HDMI, 1x Display Port, 1x VGA, 1x serial port
    • 1x IPMI 2.0 w/ dedicated Port & KVM
    • 2x USB 3.0 & 2x USB 2.0 (rear) ports
    • 1x 4cm high performance PWM fan
    • 60W DC power adapter

    Key Applications

    • Digital Signage
    • Indoor Kiosk
    • Industrial Applications

    Description

    The Supermicro SYS-E200-9B is designed for embedded applications like digital signage and indoor kiosks. It includes an Intel Pentium Processor N3710, a quad-core CPU, and supports up to 8GB of DDR3 memory. The system boasts a variety of I/O options including GbE, HDMI, Display Port, VGA, USB ports, and more. With a 60W DC power adapter and long life cycle support, the SYS-E200-9B is a reliable and versatile solution for various industrial applications.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E200-9B
    • SuperServer E200-9B ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SBA-LN4F
    Processor/Cache
    CPU
    • Socket FCBGA1170
    • Intel® Pentium® Processor N3710
    • CPU TDP 6W
    • 1.6-2.4GHz, 2MB
    System Memory
    Memory Capacity
    • 2x 204-pin SO-DIMM slot
    • Supports up to 8GB non-ECC DDR3 1600MHz memory (Dual Channel)
    Memory Type
    • 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 2GB
    Memory Voltage
    • 1.35 V
    On-Board Devices
    Chipset
    • Intel® N3710 System on Chip
    SATA
    • SATA 3.0 (6Gbps) from Intel® SoC
    Network Controllers
    • Quad Gigabit Ethernet LAN ports with Intel® I210-AT
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Graphics
    • Aspeed AST2400 BMC
    Input / Output
    Serial ATA
    • 2x SATA3 (6Gbps) ports
    LAN
    • 4x RJ45 Gigabit Ethernet LAN ports
    • 1x RJ45 Dedicated IPMI LAN port
    USB
    • 2x USB 3.0 ports (rear)
    • 2x USB 2.0 ports (rear)
    Display
    • 1x Display Port, 1x HDMI, 1x VGA (Two Independent Displays)
    DOM
    • 1x SuperDOM (Disk on Module) port with built-in power
    Others
    • TPM 1.2 header
    Chassis
    Form Factor
    • Mini-ITX
    Model
    • CSE-101S
    Dimensions
    Width
    • 7.68" (195mm) / 15" (381mm) - pkg.
    Height
    • 1.75" (44.5mm) / 10.87" (276mm) - pkg.
    Depth
    • 7.68" (195mm) / 5.59" (142mm) - pkg.
    Weight
    • Gross Weight: 5.5 lbs (2.49 kg)
    • Net Weight: 2.45 lbs (1.11 kg)
    Available Colors
    • Black

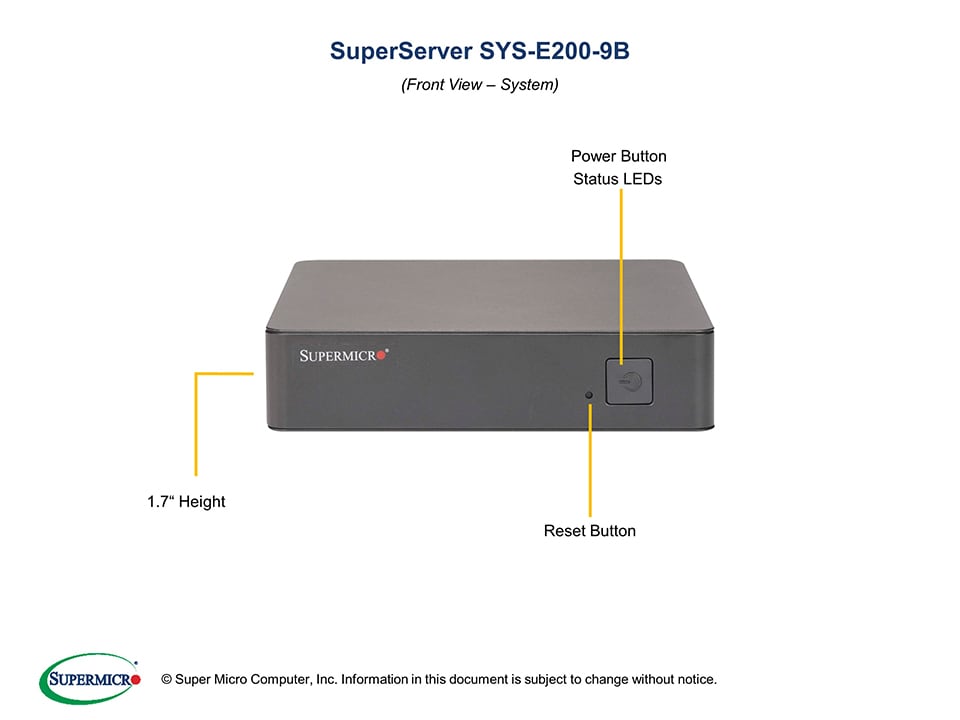

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED (Hard drive activity LED)
    Expansion Slots
    Mini-PCIe
    • 1x mini-PCIe slot with mSATA support
    Drive Bays
    Internal
    • 1x 2.5" internal drive tray
    System Cooling
    Fans
    • 1x 4cm high performance PWM fan; support up to 2 chassis fans
    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI UEFI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • ACPI 5.0
    • UEFI 2.3.1
    • SMBIOS 2.7
    • DMI 2.3
    • USB Keyboard support
    • RTC (Real time Clock) Wakeup
    • 3TB HDD Support
    Management
    Software
    • IPMI 2.0 with KVM support
    • NMI
    • SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI / ACPM Power Management
    • Main Switch Override Mechanism
    • Keyboard Wakeup from Soft-Off
    • Power-on mode for AC power recovery
    Fan
    • Fans with tachometer status monitoring
    • Status monitor for speed control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:10% to 85% (non-condensing)
    • Non-operating Relative Humidity:10% to 95% (non-condensing)
    General
    Power Supply
    • 60W DC Power Adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SBA-LN4F1Super X11SBA-LN4F Motherboard
    CSE-101S1Embedded Mini-ITX Chassis
    Power Adapter
    MCP-250-10134-0N160W Lockable Power Adapter w/o power cord - EN62368

    Optional Part List

    Part Number Quantity Description
    Dual System Tray
    MCP-290-10108-0B-CSE-101 series 1U Dual System Tray Bracket
    FAN kit
    MCP-320-10102-0N-Additional side fan kit (FAN-0170L4) for SC101S
