Comet Lake, X12SCV-LVDS + 180W power adaptor
SYS-E300-12C
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-E300-12C is a versatile compact 1U server supporting 10th Gen Intel Core and Xeon W-1200 processors. It provides optimal performance for applications requiring high reliability and power efficiency.
Key Features
- Single Socket H5 (LGA-1200) supports: 10th Gen. Intel® Core™ i9/i7/i5/i3/ Processor, Intel® Xeon® W-1200 Processors
- Intel® W480E chipset
- 2 Fixed 2.5" drive bays with bracket (when AOC area is not occupied) Or 1 Fixed 2.5" drive bay with AOC support
- Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots
- 1 PCI-E 3.0 x16 (16/NA or 8/8); 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280; 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230

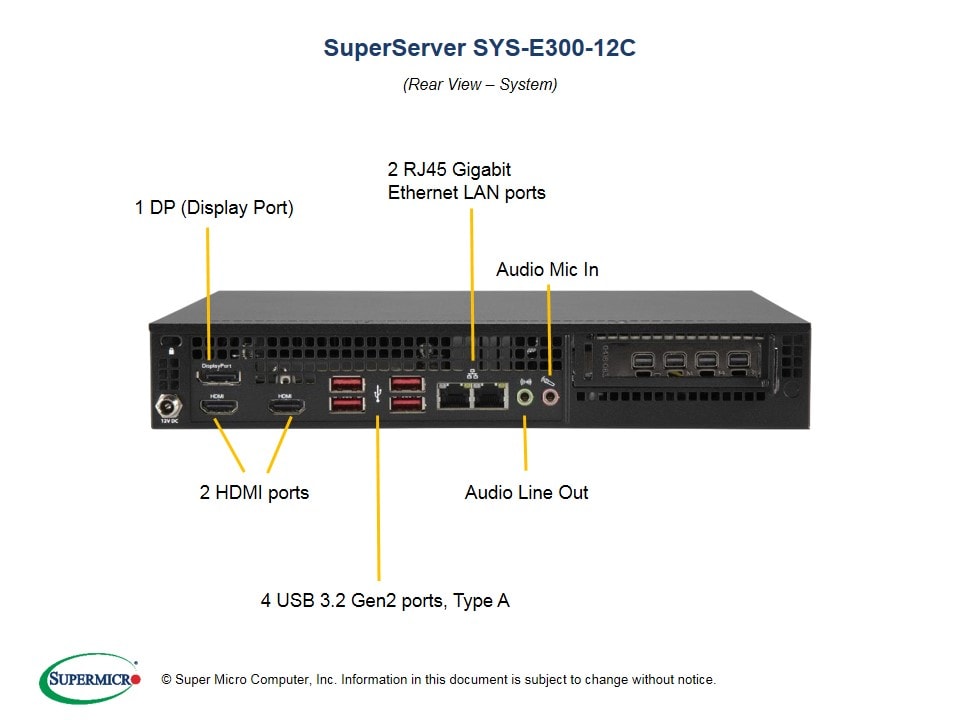

- 2x 1GbE LAN ports
- 4 USB 2.0 ports (4 via headers); 4 USB 3.2 Gen2 ports (4 Rear Type A)
- 2 HDMI, 1 DP, 1 DVI-D, HD Audio
- 2x 4028 mm 4 PIN PWM fans
- 180W DC Power Adapter
Key Applications
- Surveillance Security Server
- AI Inference and Machine Learning
- Digital Signage
- Medical Applications
Description
The Supermicro SYS-E300-12C is designed for a variety of applications including Surveillance Security Server, AI Inference and Machine Learning, Digital Signage, and Medical Applications. The server features a single socket H5 (LGA-1200) supporting 10th Gen Intel Core and Xeon W-1200 processors, an Intel W480E chipset, and up to 64GB DDR4 ECC/non-ECC SO-DIMM memory in 2 DIMM slots. It includes a wide array of I/O options, storage configurations, and advanced management tools, making it ideal for demanding environments.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-E300-12C |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| Audio |
|
| Graphics |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Display |
|
| Audio |
|
| TPM |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions | |
| Width |
|
| Height |
|
| Depth |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-E |
|
| M.2 |
|
| Drive Bays | |
| Internal |
|
| System Cooling | |
| Fans |
|
| System BIOS | |
| BIOS Type |
|
| BIOS Features |
|
| Management | |
| Software |
|
| Power Configurations |
|
| Fan |
|
| Operating Environment / Compliance | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Power Supply |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X12SCV-LVDS | 1 | Super X12SCV-LVDS Motherboard |
| CSE-E300 | 1 | Embedded Server BOX for Flex-ATX, Mini-ITX 1U height |
| Cable 1 | ||
| CBL-0473L | 1 | SATA,INT,ROUND,ST-ST,21CM,30AWG |
| Cable 2 | ||
| CBL-SAST-0886 | 1 | SATA 15pin x2 to 4pin /P2.5,40CM,22AWG |
| FAN 1 | ||
| FAN-0065L4 | 2 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M |
| Power Supply | ||
| MCP-250-10133-0N | 1 | 180W DC power adapter with US power cord 18AWG 6ft |
| Riser Card | ||
| RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output |
| Heatsink / Retention | ||
| SNK-P0073A4 | 1 | 1U Enhanced Performance Active CPU Heat Sink for Intel Socket H Series Motherboards |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Rackmount kit | ||
| MCP-290-30002-0B | - | CSE-E300 Rackmount kit (150W/180W adapter supported) |
