Ice Lake D, X12SDV-10C-SP6F, E300 + 180W power adapter

SYS-E300-12D-10CN6P

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10412/image_1920?unique=ddaceb9

kr 29,859.23 29859.23 NOK kr 29,859.23

kr 29,859.23

Not Available For Sale

    This combination does not exist.

    Summary Description

    The SYS-E300-12D-10CN6P by Supermicro is designed to handle extreme in-memory computing and mission-critical applications. It features an Intel Xeon D-1747NTE processor, supports up to 256GB DDR4 RDIMM or 128GB DDR4 UDIMM, and provides 1 2.5" drive bay along with 6 network ports.

    Key Features

    • Intel® Xeon® D Processor D-1747NTE
    • 4x DDR4-2933MHz R-DIMM max 256GB or U-DIMM 128GB
    • Support M.2 M/B/E-Key with Nano SIM Card SlotSupport PCIe 4.0 x16 Slot (Optional)
    • 4x LAN 1GbE + 2x LAN SFP28 25GbE + IPMI
    • Support 1x 2.5" drive bays (Optional)

    Key Applications

    • Universal Customer Premise Equipment (uCPE)
    • Network Security Appliance
    • Software Defined WAN (SD-WAN)
    • NFV Edge Computing Server
    • IoT Edge Computing / Gateway

    Description

    Despite its compact size, SYS-E300-12D-10CN6P is designed to handle extreme in-memory computing and mission-critical applications. It offers maximum configurability and scalability while fitting in the most compact spaces, measuring just 10.43" x 1.69" x 8.89". This IoT/embedded system is optimized for network security appliances, uCPE, SD-WAN, NFV edge computing servers, virtualization servers, and IoT edge computing/gateway. The system features an Intel Xeon processor D-1747NTE with up to 10 cores, supports up to 256GB DDR4 memory, and includes versatile networking options with 4x 1GbE RJ45 and 2x 25GbE SFP28 ports.

    Product Specifications

    Product SKUs
    SuperServerSYS-E300-12D-10CN6P
    Motherboard
    Super X12SDV-10C-SP6F
    Processor
    CPUSingle FCBGA-2227
    Intel® Xeon® Processor D-1747NTE
    Core CountUp to 10C/20T; Up to 15MB Cache
    NoteSupports up to 80W TDP CPUs (Air Cooled)
    System Memory
    MemorySlot Count: 4 DIMM slots
    Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM/UDIMM
    View Memory Options
    Memory Voltage1.2V
    On-Board Devices
    ChipsetIntel® SoC
    Network Connectivity2 SFP28 25GbE
    2 RJ45 1GbE with Intel® I210-IT
    2 RJ45 1GbE with Intel® I350-AM2
    View AOC Options

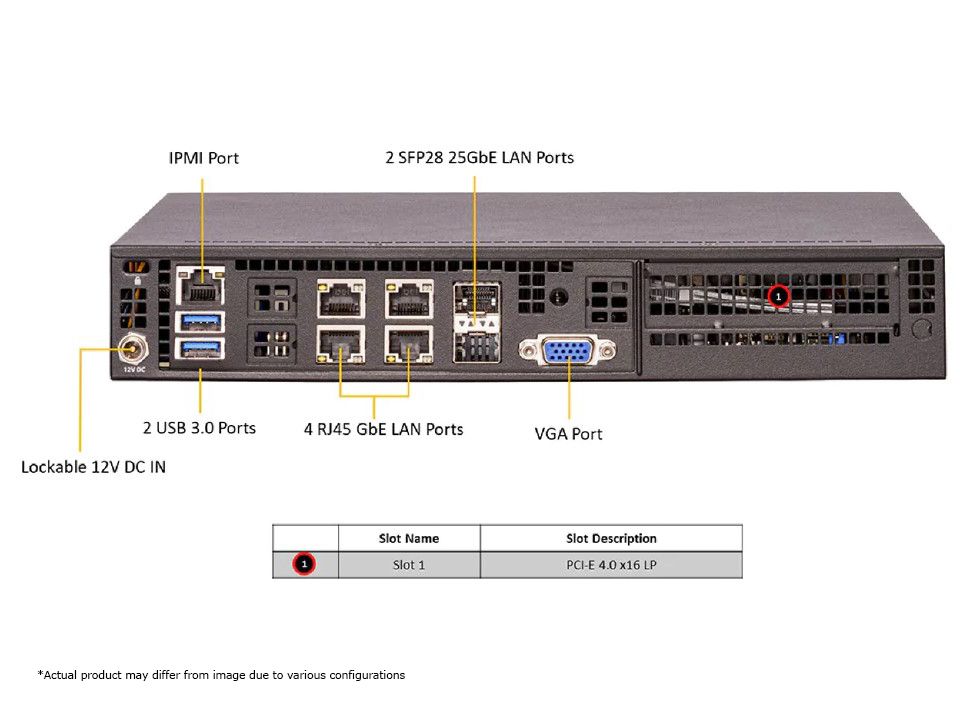

    Input / Output
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
    2 SFP28 25 GbE LAN port(s)
    2 RJ45 1 GbE LAN port(s) (Intel® I350-AM2)
    2 RJ45 1 GbE LAN port(s) (Intel® I210-IT)
    USB2 USB 3.0 Type-A port(s) (Rear)
    Video1 VGA port(s) (Rear)
    System BIOS
    BIOS TypeAMI 32MB UEFI
    BIOS FeaturesACPI 6.3
    UEFI 2.7
    SMBIOS 3.3
    PCI FW 3.0
    Management
    SoftwareSuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Update Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!
    Power configurationsPower-on mode for AC power recovery
    ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    Chassis
    Form FactorFan-based Embedded
    ModelCSE-E300
    Dimensions and Weight
    Height1.69" (43 mm)
    Width10.43" (264.8 mm)
    Depth8.89" (225.8 mm)
    Package10.87" (H) x 15" (W) x 5.59" (D)
    WeightGross Weight: 7.5 lbs (3.4 kg)
    Net Weight: 3.7 lbs (1.6 kg)
    Palletized Packing (W x H x L)54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
    Available ColorBlack
    Front Panel
    LEDHDD Status
    LAN1 activity
    LAN2 activity
    Power status
    WIFI activity
    ButtonsPower On/Off
    Expansion Slots
    PCI-Express (PCIe) ConfigurationDefault*1 PCIe 4.0 x16 LP slot(s)
    (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
    View AOC Options
    M.21 M.2 PCIe 3.0 x1 slot(s) (E-key 2230; USB 2.0)
    Drive Bays / Storage
    Drive Bays ConfigurationDefault: Total 1 bay(s)1 internal fixed 2.5" SATA* drive bay(s)
    (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    View Drive Options
    M.21 M.2 PCIe 3.0 x2 SATA slot(s) (B-key 2280/3042/3052; USB 3.0)
    1 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280)
    View M.2 Options
    System Cooling
    Fans3x 4-PIN PWM 40x40x28mm Fan(s)
    Power Supply
    1x 180W1x 180W power supplyDimension (WxHxL)AC Input180W: 100-240Vac / 47-63Hz
    1x 180W1x 180W power supplyDimension (WxHxL)AC Input180W: 100-240Vac / 47-63Hz
    Operating Environment
    Environmental Spec.Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Standard Part List

    Motherboard / Chassis
    Part NumberQuantityDescription
    MBD-X12SDV-10C-SP6F1Super X12SDV-10C-SP6F Motherboard
    CSE-E3001Fan-based Embedded Chassis
    Cable
    Part NumberQuantityDescription
    CBL-0473L17pin SATA (STR to STR), 21cm, PBF
    CBL-PWEX-09821PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
    Fan
    Part NumberQuantityDescription
    FAN-0065L434028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Power Supply
    Part NumberQuantityDescription
    MCP-250-10133-0N1180W DC power adapter with US power cord 18AWG 6ft
    Manual
    Part NumberQuantityDescription
    MNL-2556-QRG1E300-12D-4/8/10CN6P Quick Reference Guide

    Optional Part List

    Bracket for 3050/52 M.2 module
    Part NumberQuantityDescription
    MCP-410-00021-0N1Screw and Extension Bracket kit with bag for 5G M.2 3050/52
    Expansion slot kits
    Part NumberQuantityDescription
    RSC-S-6G411U LHS Standard riser card with one PCIe 4.0 x16 slot,HF
    Rackmount kits
    Part NumberQuantityDescription
    MCP-290-30002-0B•1CSE-E300 Rackmount kit with power adapter holder
