  2. Ice Lake D, X12SDV-4C-SP6F, E300 + 180W power adapter

Ice Lake D, X12SDV-4C-SP6F, E300 + 180W power adapter

SYS-E300-12D-4CN6P

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10512/image_1920?unique=f7d9088

kr 12,084.83 12084.83 NOK kr 12,084.83

kr 12,084.83

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E300-12D-4CN6P offers robust performance with an Intel® Xeon® D-1718T processor, up to 256GB DDR4 memory, and versatile storage options. It's ideal for network security appliances, uCPE, SD-WAN, and edge computing scenarios.

    Key Features

    • Intel® Xeon® D Processor D-1718T
    • 4x DDR4-2933MHz R-DIMM max 256GB or U-DIMM 128GB
    • Support M.2 M/B/E-Key with Nano SIM Card SlotSupport PCIe 4.0 x16 Slot (Optional)
    • 4x LAN 1GbE + 2x LAN SFP28 25GbE + IPMI
    • Support 1x 2.5" drive bays (Optional)

    Key Applications

    • Universal Customer Premise Equipment (uCPE)
    • Network Security Appliance
    • Software Defined WAN (SD-WAN)
    • NFV Edge Computing Server
    • IoT Edge Computing / Gateway

    Description

    E300-9D-8CN8TP-Description
    Despite its compact size, SYS-E300-12D-4CN6P is designed to handle extreme in-memory computing, and mission critical apps with maximum configurability and scalability. This system fits in the most compact of spaces, measuring in at only 10" x 1.7 x 8.9 inches and weighing slightly over 7.5lbs. This particular IoT/embedded system is optimized for network security appliance, universal customer premise equipment (uCPE), software defined WAN (SD-WAN), NFV edge computing server, virtualization server, and IoT edge computing / gateway.

    SYS-E300-12D-4CN6P has Intel® Xeon® processor D-1718T(4-Core) embedded in the system, up to 256GB DDR4 RDIMM or 128GB DDR4 UDIMM in 4 DIMM slots, and supports 1 2.5" drive bay and 1 M.2. In addition, this system has a total of 6 networking ports (4 1GbE RJ45 + 2 SFP28 25GbE), 1 VGA port, and 2 USB 3.0 ports.

    This powerful compact system is perfect for those looking for an application optimized, cost-effective, and space-constrained system.


    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E300-12D-4CN6P
    Motherboard
    Installed Motherboard
    • Super X12SDV-4C-SP6F
    Processor
    CPU
    • Single FCBGA-2227
    • Intel® Xeon® Processor D-1718T
    Core Count
    • Up to 4C/8T; Up to 10MB Cache
    Note
    • Supports up to 46W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM/UDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® SoC
    Network Connectivity
    • 2 SFP28 25GbE
    • 2 RJ45 1GbE with Intel® I210-IT
    • 2 RJ45 1GbE with Intel® I350-AM2
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 SFP28 25 GbE LAN port(s)
    • 2 RJ45 1 GbE LAN port(s) (Intel® I350-AM2)
    • 2 RJ45 1 GbE LAN port(s) (Intel® I210-IT)
    USB
    • 2 USB 3.0 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s) (Rear)
    System BIOS
    BIOS Type
    • AMI 32MB UEFI
    BIOS Features
    • ACPI 6.3
    • UEFI 2.7
    • SMBIOS 3.3
    • PCI FW 3.0
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    Chassis
    Form Factor
    • Fan-based Embedded
    Model
    • CSE-E300
    Dimensions and Weight
    Height
    • 1.69" (43 mm)
    Width
    • 10.43" (264.8 mm)
    Depth
    • 8.89" (225.8 mm)
    Package
    • 10.87" (H) x 15" (W) x 5.59" (D)
    Weight
    • Gross Weight: 7.5 lbs (3.4 kg)
    • Net Weight: 3.7 lbs (1.6 kg)
    Palletized Packing (W x H x L)
    • 54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
    Available Color
    • Black

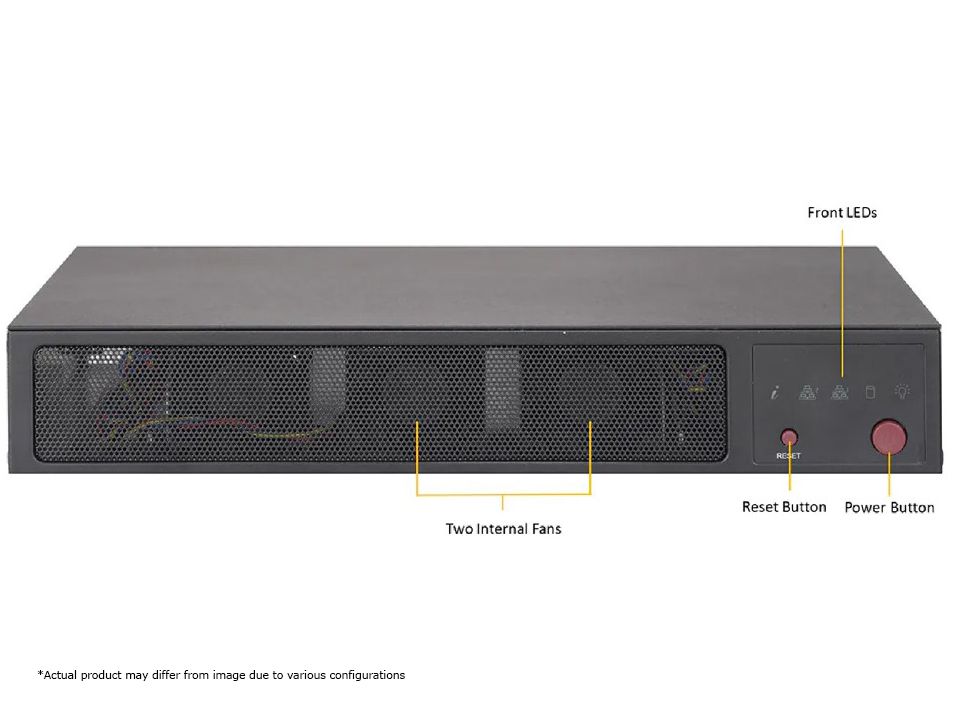

    Front Panel
    LED
    • HDD Status
    • LAN1 activity
    • LAN2 activity
    • Power status
    • WIFI activity
    Buttons
    • Power On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default*:
    • 1 PCIe 4.0 x16 LP slot

    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
    M.2
    • 1 M.2 PCIe 3.0 x1 slot (E-key 2230; USB 2.0)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 1 bay:
    • 1 internal fixed 2.5" SATA* drive bay

    • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 PCIe 3.0 x2 SATA slot (B-key 2280/3042/3052; USB 3.0)
    • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280)
    System Cooling
    Fans
    • 3x 4-PIN PWM 40x40x28mm Fan(s)
    Power Supply
    1x 180W power supply
    Dimension (WxHxL):
    AC Input:
    • 180W: 100-240Vac / 47-63Hz

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SDV-4C-SP6F1Super X12SDV-4C-SP6F Motherboard
    CSE-E3001Fan-based Embedded Chassis
    Cable
    CBL-0473L17pin SATA (STR to STR), 21cm, PBF
    CBL-PWEX-09821PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
    Fan
    FAN-0065L434028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Power Supply
    MCP-250-10133-0N1180W DC power adapter with US power cord 18AWG 6ft
    Manual
    MNL-2556-QRG1E300-12D-4/8/10CN6P Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    Bracket for 3050/52 M.2 module
    MCP-410-00021-0N1Screw and Extension Bracket kit with bag for 5G M.2 3050/52
    Expansion slot kits
    RSC-S-6G411U LHS Standard riser card with one PCIe 4.0 x16 slot,HF
    Rackmount kits
    MCP-290-30002-0B1CSE-E300 Rackmount kit with power adapter holder
