  2. Ice Lake D, X12SDV-8C-SP6F, E300 + 180W power adapter

Ice Lake D, X12SDV-8C-SP6F, E300 + 180W power adapter

SYS-E300-12D-8CN6P

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10513/image_1920?unique=f7d9088

kr 22,238.13 22238.13 NOK kr 22,238.13

kr 22,238.13

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E300-12D-8CN6P server is engineered for diverse edge computing needs, offering high performance with an Intel Xeon D Processor, expandable memory, and multiple network interfaces.

    Key Features

    • Intel® Xeon® D Processor D-1736NT
    • 4x DDR4-2933MHz R-DIMM max 256GB or U-DIMM 128GB
    • Support M.2 M/B/E-Key with Nano SIM Card SlotSupport PCIe 4.0 x16 Slot (Optional)
    • 4x LAN 1GbE + 2x LAN SFP28 25GbE + IPMI
    • Support 1x 2.5" drive bays (Optional)

    Key Applications

    • Universal Customer Premise Equipment (uCPE)
    • Network Security Appliance
    • Software Defined WAN (SD-WAN)
    • NFV Edge Computing Server
    • IoT Edge Computing / Gateway

    Description

    The Supermicro SYS-E300-12D-8CN6P is a compact and powerful server equipped with the Intel Xeon D Processor D-1736NT, up to 256GB of DDR4 memory, and a variety of network connectivity options including 2 SFP28 25GbE and 4 RJ45 1GbE ports. Designed for edge computing environments, it supports NFV, SD-WAN, and IoT applications. The system is highly customizable with options for additional PCIe slots, M.2 storage, and power supply configurations to meet specific deployment needs.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E300-12D-8CN6P
    Motherboard
    Installed Motherboard
    • Super X12SDV-8C-SP6F
    Processor
    CPU
    • Single FCBGA-2227
    • Intel® Xeon® Processor D-1736NT
    Core Count
    • Up to 8C/16T; Up to 15MB Cache
    Note
    • Supports up to 67W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM/UDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® SoC
    Network Connectivity
    • 2 SFP28 25GbE
    • 2 RJ45 1GbE with Intel® I210-IT
    • 2 RJ45 1GbE with Intel® I350-AM2
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 SFP28 25 GbE LAN port(s)
    • 2 RJ45 1 GbE LAN port(s) (Intel® I350-AM2)
    • 2 RJ45 1 GbE LAN port(s) (Intel® I210-IT)
    USB
    • 2 USB 3.0 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s) (Rear)
    System BIOS
    BIOS Type
    • AMI 32MB UEFI
    BIOS Features
    • ACPI 6.3
    • UEFI 2.7
    • SMBIOS 3.3
    • PCI FW 3.0
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    Chassis
    Form Factor
    • Fan-based Embedded
    Model
    • CSE-E300
    Dimensions and Weight
    Height
    • 1.69" (43 mm)
    Width
    • 10.43" (264.8 mm)
    Depth
    • 8.89" (225.8 mm)
    Package
    • 10.87" (H) x 15" (W) x 5.59" (D)
    Weight
    • Gross Weight: 7.5 lbs (3.4 kg)
    • Net Weight: 3.7 lbs (1.6 kg)
    Palletized Packing (W x H x L)
    • 54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
    Available Color
    • Black
    Front Panel
    LED
    • HDD Status
    • LAN1 activity
    • LAN2 activity
    • Power status
    • WIFI activity
    Buttons
    • Power On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default*:
    • 1 PCIe 4.0 x16 LP slot

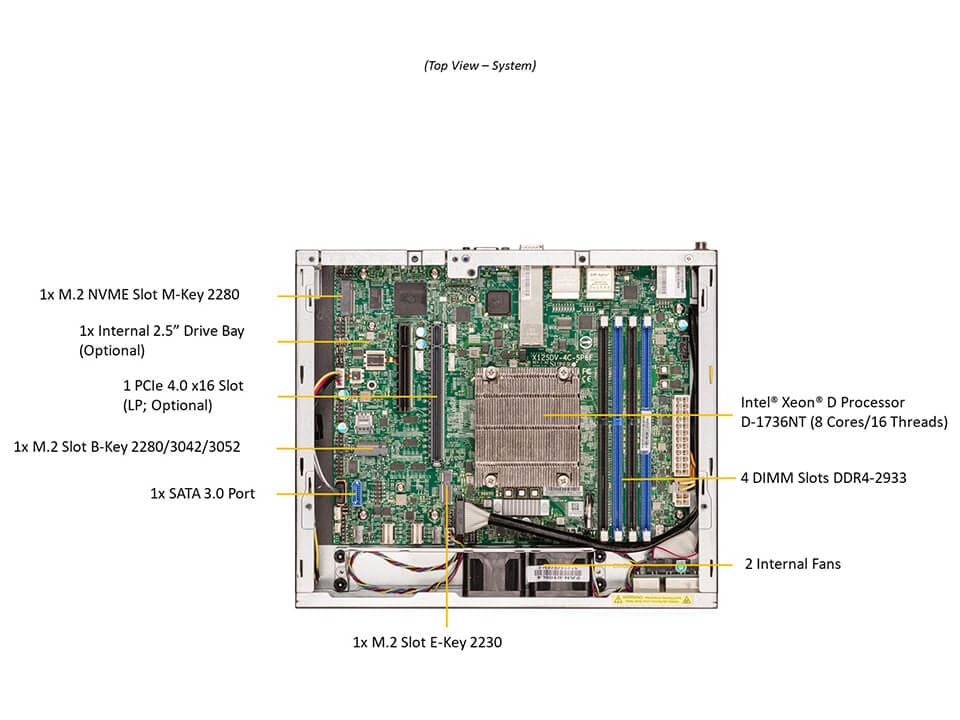

    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
    M.2
    • 1 M.2 PCIe 3.0 x1 slot (E-key 2230(default); USB 2.0)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 1 bay:
    • 1 internal fixed 2.5" SATA* drive bay

    • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 PCIe 3.0 x2 SATA slot (B-key 2280/3042/3052; USB 3.0)
    • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280)
    System Cooling
    Fans
    • 3x 4-PIN PWM 40x40x28mm Fan(s)
    Power Supply
    1x 180W power supply
    Dimension (WxHxL):
    AC Input:
    • 180W: 100-240Vac / 47-63Hz

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SDV-8C-SP6F1Super X12SDV-8C-SP6F Motherboard
    CSE-E3001Fan-based Embedded Chassis
    Cable
    CBL-0473L17pin SATA (STR to STR), 21cm, PBF
    CBL-PWEX-09821PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
    Fan
    FAN-0065L434028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Power Supply
    MCP-250-10133-0N1180W DC power adapter with US power cord 18AWG 6ft
    Manual
    MNL-2556-QRG1E300-12D-4/8/10CN6P Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    Bracket for 3050/52 M.2 module
    MCP-410-00021-0N1Screw and Extension Bracket kit with bag for 5G M.2 3050/52
    Expansion slot kits
    RSC-S-6G411U LHS Standard riser card with one PCIe 4.0 x16 slot,HF
    Rackmount kits
    MCP-290-30002-0B1CSE-E300 Rackmount kit with power adapter holder
