Alder Lake-S, CSE-E300 + X13SAV-LVDS + 180W power adapt

SYS-E300-13AD

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10487/image_1920?unique=b674791

kr 7,136.24 7136.24 NOK kr 7,136.24

kr 7,136.24

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SYS-E300-13AD is designed for extreme in-memory computing and mission-critical applications. It's optimized for AI, surveillance, medical, and digital signage applications, offering maximum configurability in a compact form factor.

    Key Features

    • 13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor (LGA-1700)
    • Intel® Q670E
    • 2x DDR4-3200MHz SO-DIMM max 64GB
    • Support M.2 M/E-KeySupport 1x PCIe 5.0 x16 Slot (Optional)
    • AMT vPro Supported
    • Support up to 2x 2.5" drive bays (Optional)
    • Quad Independent Display by 2x HDMI and 2x DP

    Key Applications

    • Digital Signage
    • Surveillance Security Server
    • Medical Applications
    • AI Inference

    Description

    Despite its compact size, the SYS-E300-13AD is designed to handle extreme in-memory computing and mission-critical applications with maximum configurability and scalability. This versatile system can fit into the most space-constrained environments, making it ideal for digital signage, AI inference, surveillance security, and medical applications. With support for a range of 13th/12th Gen Intel® Core™ processors, up to 64GB DDR4 SO-DIMM memory, and dual HDMI/DisplayPort outputs, this system is powerful and flexible. The inclusion of dual LAN ports and multiple USB connections further enhances its connectivity options.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E300-13AD
    Motherboard
    Installed Motherboard
    • Super X13SAV-LVDS
    Processor
    CPU
    • Single LGA-1700
    • 13th/12th Gen Inte®l Core i9/Core i7/Core i5/Core i3/Pentium/Celeron processor
    Core Count
    • Up to 16C/32T; Up to 30MB Cache
    Note
    • Supports up to 65W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 2 DIMM slots
    • Max Memory (2DPC): Up to 64GB 3200MT/s non-ECC DDR4 SO-DIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® Q670E
    Network Connectivity
    • 1 RJ45 1GbE with Intel® I210-AT
    • 1 RJ45 2.5GbE with Intel® I225-LM
    Input / Output
    LAN
    • 1 RJ45 2.5 GbE LAN port(s) (Intel® I225-LM)
    • 1 RJ45 1 GbE LAN port(s) (Intel® I210-AT)
    USB
    • 4 USB 3.2 Gen2 Type-A port(s) (Rear)
    Video
    • 1 HDMI 2.0b port(s) (Rear)
    • 1 HDMI 1.4 port(s) (Rear)
    • 2 DisplayPort port(s) (Rear)
    Audio
    • Line Out
    • Mic in
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash
    BIOS Features
    • ACPI 6.0
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • SPI dual/quad speed support
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Chassis
    Form Factor
    • Fan-based Embedded
    Model
    • CSE-E300
    Dimensions and Weight
    Height
    • 1.69" (43 mm)
    Width
    • 10.43" (264.8 mm)
    Depth
    • 8.89" (225.8 mm)
    Package
    • 10.87" (H) x 15" (W) x 5.59" (D)
    Weight
    • Gross Weight: 7.5 lbs (3.4 kg)
    • Net Weight: 3.7 lbs (1.6 kg)
    Palletized Packing (W x H x L)
    • 54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm)
    Available Color
    • Black

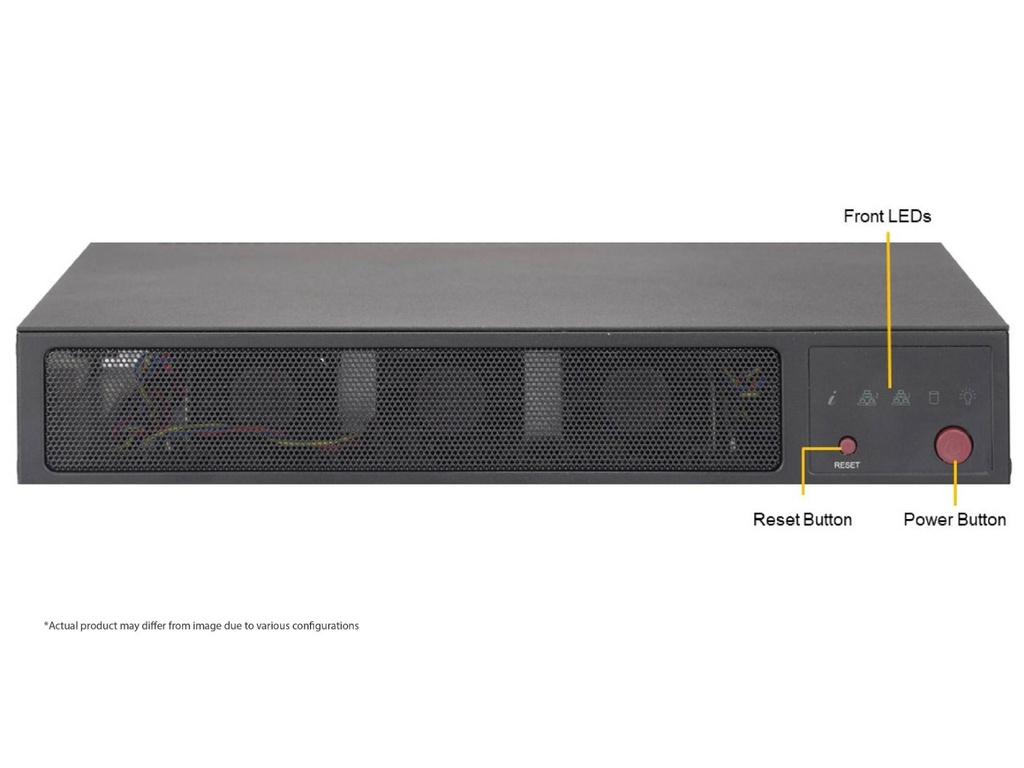

    Front Panel
    LED
    • HDD Status
    • LAN1 activity
    • LAN2 activity
    • Power status
    • WIFI activity
    Buttons
    • Power On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default*:
    • 1 PCIe 5.0 x16 (in x16) LP slot

    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
    M.2
    • 1 M.2 PCIe 3.0 x1 slot (E-key 2230; USB 2.0)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 1 bay:
    • 1 internal fixed 2.5" SATA* drive bay

    • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280)
    System Cooling
    Fans
    • 2x 4-PIN PWM 40x40x28mm Fan(s)
    • 1 CPU heatsink with Φ80x15mm Fan(s)
    Power Supply
    1x 180W power supply
    Dimension (WxHxL):
    AC Input:
    • 180W: 100-240Vac / 47-63Hz

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SAV-LVDS1Super X13SAV-LVDS Motherboard
    CSE-E3001Fan-based Embedded Chassis
    Cable
    CBL-0473L17pin SATA (STR to STR), 21cm, PBF
    CBL-PWEX-09821PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
    Fan
    FAN-0065L424028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Power Supply
    MCP-250-10133-0N1180W DC power adapter with US power cord 18AWG 6ft
    Parts
    MCP-260-00167-0B11U E300, 101F I/O Shield for X13SAV-LVDS with EMI Gasket
    Manual
    MNL-2558-QRG1E300-13AD Quick Reference Guide
    Heatsink / Retention
    SNK-P0085A411U Active CPU Heat Sink for E300-13C Embedded Server

    Optional Part List

    Part Number Quantity Description
    Dual 2.5" drive bay kits
    CBL-SAST-09331OcuLink v 1.0 to 4x SATA 7-pin,INT, 50CM,32AWG,RoHS
    CBL-SAST-08861SATA 15pin x2 to 4pin /P2.5,40CM,22AWG,RoHS
    Expansion slot kits
    RSC-S-6G511U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    GPU air shroud
    MCP-310-30001-0B1Air shroud for NVIDIA Low profile GPU card(T4/A2/L4)
    Rackmount kits
    MCP-290-30002-0B1CSE-E300 Rackmount kit with power adapter holder
