  2. Denverton, A2SDi-16C-TP8F, E300 +84W power adapter

Denverton, A2SDi-16C-TP8F, E300 +84W power adapter

SYS-E300-9A-16CN8TP

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10594/image_1920?unique=f7d9088

kr 14,054.50 14054.5 NOK kr 14,054.50

kr 14,054.50

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E300-9A-16CN8TP is a high-performance, compact Mini-1U server tailored for networking applications. It features the Intel® Atom® processor C3958, 16 cores, and up to 64GB DDR4 memory.

    Key Features

    • Embedded Networking Applications - Network Security Appliance - FireWall Applications - Virtualization Server
    • Intel® Atom® processor C3958, Single socket FCBGA 1310
    • System on Chip
    • 1 fixed 2.5" drive bay (Top drive bay area is shared with AOC. Please remove riser card when installing 2.5" drive on the top.)
    • Up to 64GB unbuffered ECC/non-ECC, DDR4-2400MHz, in 4 DIMM slots
    • 1 PCI-E 3.0 x4 AOC slot (LP), 1 M.2 M Key PCI-E/SATA3 2242/80, 1 Mini-PCI-E w/ mSATA Half Size
    • 2x 10GbE SFP+, 2x 10GbE LAN, 4x 1GbE LAN, 1 dedicated IPMI LAN
    • 2 USB 3.0, 1 VGA
    • 2x 40x28mm 4-PIN PWM Fan
    • Lockable 12V DC 84W power adapter

    Key Applications

    • Networking Applications
    • Network Security Appliance
    • Firewall Applications
    • Virtualization Server

    Description

    The Supermicro SYS-E300-9A-16CN8TP offers robust performance and versatility in a compact Mini-1U form factor. Equipped with the Intel® Atom® processor C3958, 16 cores, and supporting up to 64GB DDR4 memory, this server is ideal for network security, firewall, and virtualization applications. Key features include multiple LAN ports with both 10GbE and 1GbE connectivity, extensive I/O options including USB 3.0 and VGA ports, and advanced management capabilities with IPMI. Its design also supports a variety of expansion options and storage configurations, making it adaptable to various enterprise needs.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-E300-9A-16CN8TP
    • SuperServer E300-9A-16CN8TP ( Black )
    Motherboard
    Installed Motherboard
    • Super MBD-A2SDI-16C-TP8F
    Processor/Cache
    CPU
    • Intel® Atom® processor C3958
    • 16 Cores, 2.0GHz
    • CPU TDP support 31W
    • FCBGA 1310
    System Memory
    Memory Capacity
    • 4x DDR4 DIMM sockets
    • Supports up to 64GB DDR4 ECC/non-ECC SO-DIMM
    Memory Type
    • 2400/2133/1866MHz ECC/Non-ECC SO-DIMM
    DIMM Sizes
    • 64GB, 32GB, 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors(using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 4 SATA3 (6Gbps) ports
    Network Controllers
    • Quad LAN with Intel® C3000 SoC: 2 10GBaseT, 2 10Gb SFP+
    • Quad LAN with Intel® Ethernet Controller I350-AM4: 1GbE
    Graphics
    • Aspeed AST2400

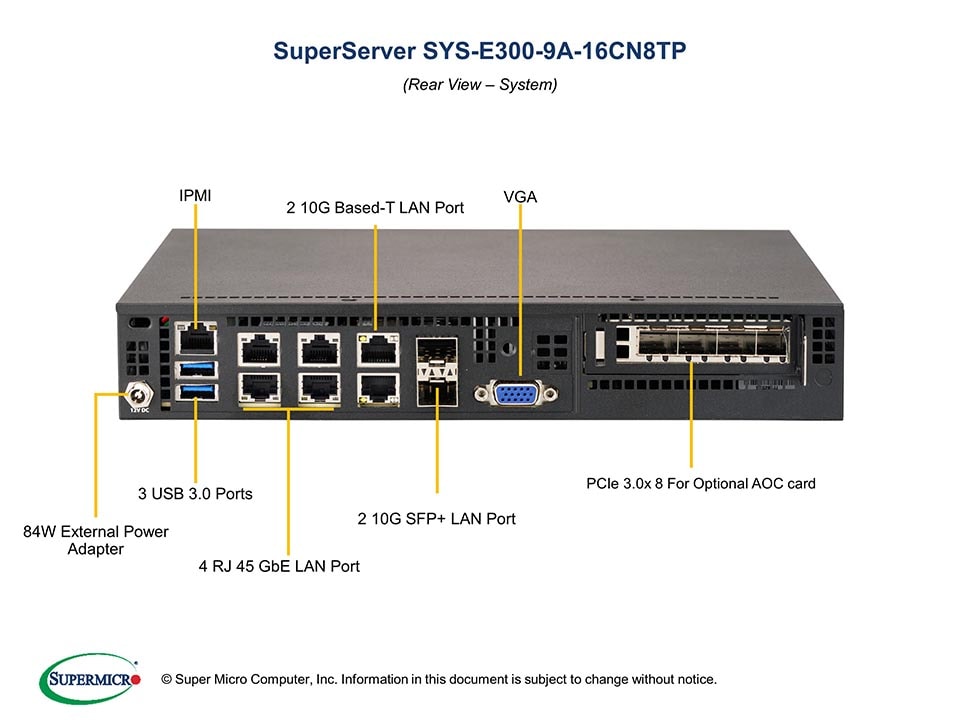

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 2x SFP+ 10G Ethernet LAN ports
    • 2x RJ45 10GBase-T Ethernet LAN ports
    • 4x RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Display
    • 1 VGA port
    DOM
    • 1 SuperDOM (Disk on Module) power connector
    TPM
    • TPM 2.0 header
    Chassis
    Form Factor
    • Mini-1U
    Model
    • CSE-E300
    Dimensions
    Width
    • 10.43" (264.8mm) / 15" (381mm) - pkg.
    Height
    • 1.7" (43mm) / 10.87" (276mm) - pkg.
    Depth
    • 8.9" (226mm) / 5.59" (142mm) - pkg.
    Weight
    • Gross Weight: 6.1 lbs (2.8 kg)
    • Net Weight: 3.45 lbs (1.56 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED (Hard drive activity LED)
    Expansion Slots
    PCI-Express
    • 1 PCI Express 3.0 x4 AOC slot (LP)
    • 1 Mini-PCI-E w/ mSATA Half Size
    Drive Bays / Storage
    Internal
    • 2 fixed 2.5" drive bays, one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)
    M.2
    • Interface: PCI-E/SATA3
    • Form Factor: M Key 2242/2280
    System Cooling
    Fans
    • 2x 40mm chassis fan
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Management
    Software
    • OOB
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI / APM Power Management
    • CPU thermal trip support for processor protection
    • Power-on mode for AC power recovery
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Power Supply
    • 84W DC power adapter

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-MBD-A2SDI-16C-TP8F1Super MBD-A2SDI-16C-TP8F Motherboard
    CSE-E3001Embedded Server BOX for Mini-ITX 1U w/o PWS
    Power Adapter
    MCP-250-10137-0N184W DC Power Adapter

    Optional Part List

    Part Number Quantity Description
    Chassis Parts
    MCP-290-30002-0B-CSE-E300 Rackmount kit (150W/180W adapter supported)
    Cable
    CBL-CUSB-0975-RJ45 SERIAL Cable for Console
    CBL-SAST-1034-SATA Splitter Cable with Power for dual SATA HDD
