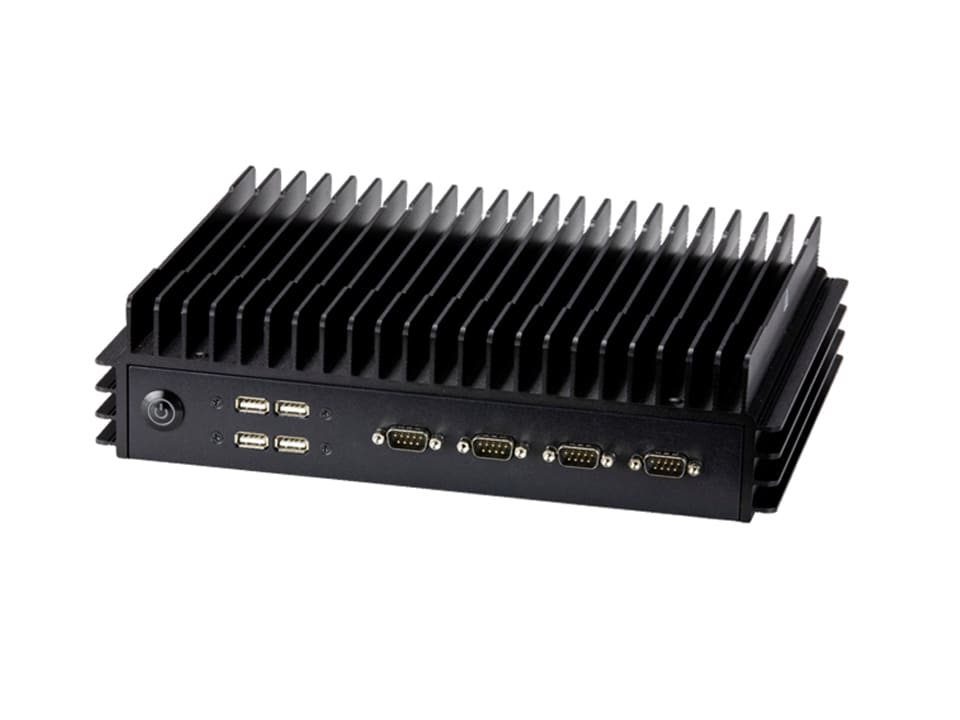

Fanless CSE-E302iL2 + MBD-A3SEV-4C-LN4-P

SYS-E302-12E

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs, 1 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10595/image_1920?unique=f7d9088

kr 9,644.99 9644.99 NOK kr 9,644.99

kr 9,644.99

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SYS-E302-12E is a robust fanless embedded system featuring Intel® Elkhart Lake processors, ideal for dynamic applications such as process automation, digital signage, and smart city solutions. Rich I/O ports, tri independent displays, and wide temperature tolerance enhance its utility.

    Key Features

    • Wall Mount Bracket
    • Intel® Elkhart Lake up to 4C/12W
    • 1x M.2 B-Key;1x M.2 E-Key
    • Rich I/O Ports: 2x USB3.1, 6x USB2.0, 4x COM, 4x LAN
    • 1 xFixed 2.5" drive bay with bracket (Wide Temp required)
    • Wide Temperature  -20°C to 60°C (-4°F to 140°F)Fanless Cooling
    • Lockable 12V DC 150W/180W Power Adapter
    • Tri Independent Displays: 1x HDMI 2.0b (4K60Hz), 1x DP 1.4, 1x VGA

    Key Applications

    • Process Automation
    • Digital Singnage&Data Visualization
    • Retail, Banking&Smart City

    Description

    The Supermicro SYS-E302-12E is engineered to deliver top performance in harsh environments. With a fanless design, it is optimal for diverse applications including process automation, digital signage, and retail solutions. The system integrates Intel® Elkhart Lake processors and offers an array of I/O ports, including USB 3.1, USB 2.0, COM, and LAN ports. It supports tri independent displays via HDMI, DP, and VGA. Additional features include a wide temperature range (-20°C to 60°C), lockable power adapter, and a wall mount bracket. This device is sold as a complete system only to ensure quality and performance.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E302-12E
    Motherboard
    Installed Motherboard
    • Super A3SEV-4C-LN4
    Processor
    CPU
    • Single FCBGA-1493
    • Intel® Atom® Processor x6425E
    Core Count
    • Up to 4C/8T; Up to 1.5MB Cache
    Note
    • Supports up to 12W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 2 DIMM slots
    • Max Memory (2DPC): Up to 32GB 3200MT/s non-ECC DDR4 SO-DIMM
    On-Board Devices
    Chipset
    • Intel® x6425E
    Network Connectivity
    • 4 RJ45 1GbE
    Input / Output
    LAN
    • 4 RJ45 1 GbE LAN port(s)
    USB
    • 2 USB 2.0 port(s) (rear)
    • 2 port(s) (rear)
    • 4 USB 2.0 port(s) (front)
    Video
    • 1 VGA port(s)
    • 1 HDMI port(s)
    • 1 DisplayPort port(s)
    System BIOS
    BIOS Type
    • AMIUEFI
    BIOS Features
    • UEFI 2.7
    • SMBIOS 3.3 or later
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Watch Dog Function
    • Power Button Function
    • AC Loss Policy Depend On
    • Boot eDP/VGA Select
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Chassis
    Form Factor
    • Fanless Embedded
    Model
    • CSE-E302iL2
    Dimensions and Weight
    Height
    • 3" (76 mm)
    Width
    • 11.6" (295 mm)
    Depth
    • 8.1" (206 mm)
    Package
    • 12" (H) x 16.45" (W) x 7.6" (D)
    Weight
    • Gross Weight: 12 lbs (5.44 kg)
    • Net Weight: 8 lbs (3.63 kg)
    Palletized Packing (W x H x L)
    • 50.79" (1290 mm) x 87.8" (2230 mm) x 34.25" (870 mm)
    Available Color
    • Black
    Front Panel
    LED
    • HDD Status
    • Power status
    Buttons
    • Power On/Off
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 1 bay:
    • 1 internal fixed 2.5" SATA drive bay

    M.2
    • 1 M.2 PCIe 3.0 x2 SATA slot (B-key 2280/3042; USB 3.0)
    System Cooling
    Fans
    • No/A
    Power Supply
    1x 150W power supply
    Dimension (WxHxL):
    AC Input:
    • 150W: 100-240Vac / 47-63Hz

    Operating Environment
    Environmental Spec.
    • Operating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condesning)
    • Non-operating Relative Humidity: 5% to 95% (con-condensing)

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-0473L17pin SATA (STR to STR), 21cm, PBF
    CBL-SAST-08861SATA 15pin x2 to 4pin /P2.5,40CM,22AWG,RoHS
    Wall mount/VESA mount
    MCP-290-30201-0B1WALL / VESA mount kit with adapter holder
