  2. [NR]A4SAP-H (Intel N97), CSE-E50-L, RoHS

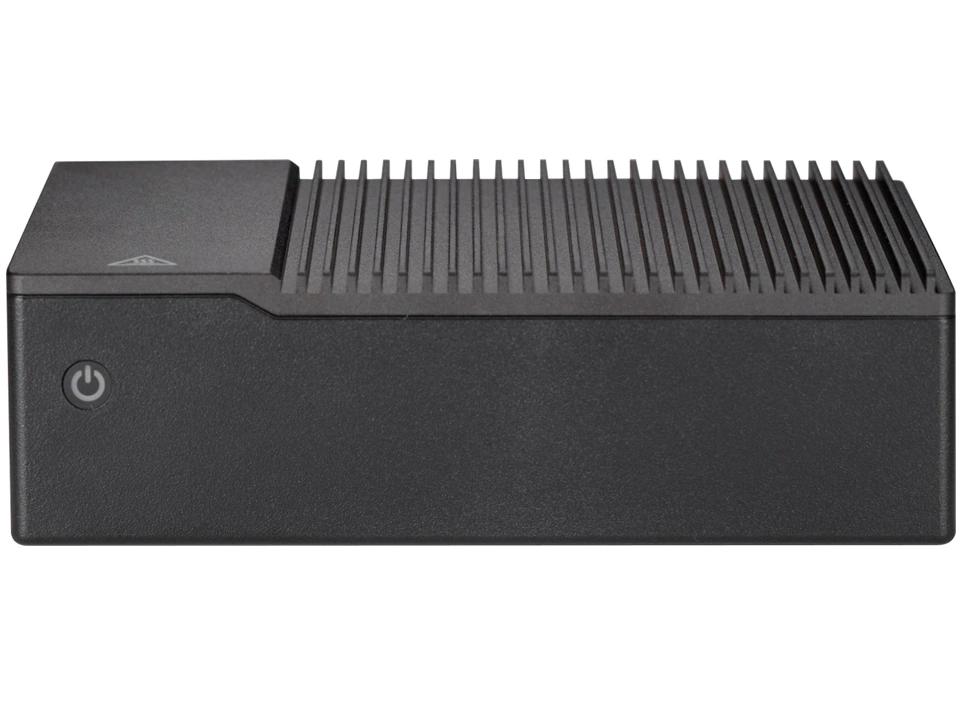

[NR]A4SAP-H (Intel N97), CSE-E50-L, RoHS

SYS-E50-14AM-L

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/13550/image_1920?unique=ce410c7

kr 4,448.19 4448.1900000000005 NOK kr 4,448.19

kr 4,448.19

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    Discover the [NR]A4SAP-H Supermicro SuperServer with Intel® N97 CPU, engineered for industrial and digital signage applications. It features robust network connectivity, extensive memory support, and fanless design to ensure reliable performance.

    Key Features

    • Intel® Atom® Alder Lake-N N97 (TDP 7W / 4C)
    • DDR5-4800MT/s 1 DIMM max 16GB
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042) 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
    • 2 RJ45 2.5GbE (Realtek)
    • Front IP 51 protection (Water/Dust proof)
    • Fanless Embedded chassis with 4.64" (118mm) depth
    • 2 USB 3.2 Gen2 Type-A port(s) (Rear), 1 HDMI 1.4 port(s) (Rear)

    Key Applications

    • Industrial / Automation
    • Healthcare
    • Digital Signage Kiosk, Interactive info system
    • Retail

    Description

    The [NR]A4SAP-H Supermicro SuperServer offers robust performance with the Intel® Atom® Alder Lake-N N97 processor, featuring a fanless embedded chassis with a compact depth of 4.64 inches. This system is designed for industrial and healthcare applications, providing enhanced connectivity with 2.5GbE LAN ports and comprehensive expansion options, including dual M.2 slots. It supports up to 16GB DDR5-4800 memory, making it suitable for data-intensive tasks in environments like digital signage and retail where reliability and efficiency are paramount. The system is RoHS compliant, boasts an easy-to-use front panel interface with IP 51 protection, and is engineered for stable operation in varied temperature and humidity ranges.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-E50-14AM-L
    Motherboard
    Installed Motherboard
    • Super A4SAP-H
    Processor
    CPU
    • Intel® Processor N97
    Core Count
    • Up to 4C/12T; Up to 6MB Cache
    Note
    • Supports up to 7W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 1 DIMM slots/1 Channels
    • Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 2.5GbE with Realtek
    Input / Output
    LAN
    • 2 RJ45 2.5 GbE LAN ports
    USB
    • 2 USB 3.2 PCIe Gen. 2 Type-A ports(Rear)
    Video
    • 1 HDMI 1.4 port(Rear)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash EEPROM
    Management
    Software
    • Supermicro SuperDoctor® 5 (SD5)
    Power configurations
    • ACPI Power Management
    • +12V DC Power Input
    • Control of power-on for recovery from AC power loss
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Features
    • Secure Boot
    Chassis
    Form Factor
    • Fanless Embedded
    Model
    • CSE-E50-L
    Dimensions and Weight
    Height
    • 1.72" (44 mm)
    Width
    • 5.82" (148 mm)
    Depth
    • 4.64" (118 mm)
    Package
    • 9.5" (H) x 5.5" (W) x 8" (D)
    Weight
    • Gross Weight: 3.52 lbs (1.6 kg)
    • Net Weight: 2.2 lbs (1 kg)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off
    LED
    • Power status
    Expansion Slots
    M.2
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042)
    • 1 M.2 PCIe 3.0 x1 slot (E-key 2230)
    Drive Bays / Storage
    M.2
    • 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/3042)
    System Cooling
    Fans
    • No/A
    Power Supply
    1x 40W power supply
    Dimension (WxHxL):
    • 110 x 32 x 50 mm

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F) with 0.7 m/s airflow
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    Din Rail Kit
    MCP-290-10201-0N1CSE-E101/E102/E50 Mounting Hardware Clip for 35mm DIN Rail
