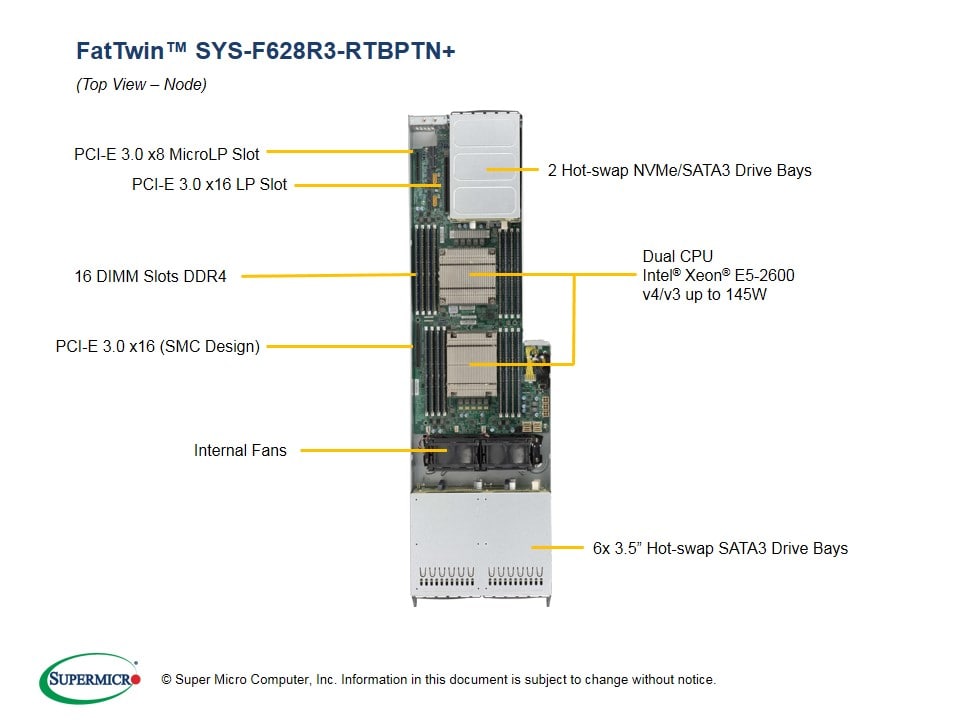

X10DRFR-NT, CSE-F424AS-R1K28BP, rear NVME drives
SYS-F628R3-RTBPTN+
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-F628R3-RTBPTN+ is designed for enterprises that demand high performance, scalability, and redundancy in their server infrastructure.
Key Features
- Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † / v3 family; QPI up to 9.6GT/s
- Up to 2TB † ECC 3DS LRDIMM , up to DDR4- 2400 † MHz ; 16x DIMM slots
- Expansion slots: 1 PCI-E 3.0 x16 (LP) 1 PCI-E 3.0 x8 (Micro Low Profile) See Cable Configuration Map
- I/O ports: 2 10GBase-T, 1 video, 2 USB 3.0 ports
- Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
- 8x 3.5" Hot-swap SATA3 OR 6x 3.5" Hot-swap SATA3 + 2x SATA/NVMe hybrid
- 2x Internal NVMe ports (4x PCI-E 3.0)
- 2x 80mm 11k RPM middle fans
- 1280W Redundant Power Supplies Platinum Level (95%)
Key Applications
- Data centers
- Cloud computing
- Enterprise applications
- High-performance computing
- Database management
Description
The Supermicro SYS-F628R3-RTBPTN+ features dual socket R3 (LGA 2011) supporting Intel® Xeon® processors, up to 2TB ECC 3DS LRDIMM, with 16x DIMM slots. It is equipped with multiple expansion slots, diverse I/O ports, built-in server management tools, and redundant power supplies, designed for optimal performance and reliability. This 4U rackmount server supports various configurations suitable for data centers and cloud environments.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-F628R3-RTBPTN+ |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor/Cache | |
| CPU |
|
| Cores / Cache |
|
| System Bus |
|
| Note |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| IPMI |
|
| Network Controllers |
|
| Graphics |
|
| Input / Output (per node) | |
| Serial ATA |
|
| NVMe |
|
| LAN |
|
| USB |
|
| VGA |
|
| Management | |
| Software |
|
| Power Configurations |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Width |
|
| Height |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots (per node) | |
| PCI-Express |
|
| Drive Bays (per node) | |
| Hot-swap |
|
| System Cooling (per node) | |
| Fans |
|
| Power Supply | |
| |
| AC Input |
|
| DC Output |
|
| Certification |
|
| System BIOS | |
| BIOS Type |
|
| BIOS Features |
|
| Operating Environment / Compliance | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Backplane |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X10DRFR-NT | 4 | Super X10DRFR-NT Motherboard |
| CSE-F424AS-R1K28BP | 1 | 4U Chassis |
| Backplane | ||
| BPN-SAS-F424-A6 | 4 | 6-port Fat Twin 6Gbps hot swappable HDD backplane, support up to 6x 3.5-inch SAS/SATA HDD |
| BPN-ADP-F418LS | 4 | Power Distribution Board for X10DRFR,RoHS/REACH,PBF |
| BPN-SAS3-F424-A2N2 | 4 | 2x-port Fat Twin SAS3 12Gbps hybrid backplane, support up to 2x 3.5-inch SAS3/SATA3/NVMe storage devices |
| Cable 1 | ||
| CBL-0486L | 8 | 2x2 to 2x2 15cm power cable HF. 18AWG |
| Cable 2 | ||
| CBL-0489L | 8 | SATA,INT,ROUND,ST-RA,70CM,30AWG |
| Cable 3 | ||
| CBL-0157L-02 | 8 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,27CM,28AWG |
| Cable 4 | ||
| CBL-0480L | 4 | 4 pins to 4 pins 40cm PDB to MB power cable HF. 18AWG |
| Cable 5 | ||
| CBL-OTHR-0022L | 4 | 20 to 20 pin cable for BPN-ADP-F418LS,7.5cm, 28AWG,RoHS/REACH,PBF |
| Cable 6 | ||
| CBL-0481L | 4 | SATA,INT,ROUND,ST-ST,81CM,30AWG |
| Cable 7 | ||
| CBL-PWCD-0900 | 4 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG |
| Cable 8 | ||
| CBL-SAST-0623 | 8 | MINI SAS HD,INT,PCIe NVMe SSD, 45CM,30AWG |
| Cable 9 | ||
| CBL-SAST-0692 | 4 | Internal cross-over mini SAS HD to 2 SATA, S. 23cm. 30AWG [Amphenol],RoHS/REACH |
| Cable 10 | ||
| CBL-0484L | 12 | SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Label | ||
| LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual | ||
| MNL-1759-QRG | 1 | Quick Reference Guide for F628R3-RTBN+/RTBPTN+ |
| Heatsink / Retention | ||
| SNK-P0048P | 4 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Square ILM MB |
| SNK-P0048PS | 4 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB |
| Power Supply | ||
| PWS-1K28P-SQ | 4 | 1U 1280W, redundant single output power supply |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Software | ||
| SFT-OOB-LIC | 4 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 4 | DataCenter Management Package (per node license) |
| Drive Carrier | ||
| MCP-220-93801-0B | 2/node | Drive carrier 3.5" to 2.5" with adapter tray |
| Additional Power Kit:Mounting BracketPower adapter Board | ||
| MCP-120-42405-0N | 1/node | 2nd power adapter mounting bracket * |
| BPN-ADP-2UPWR-O-P | 1/node | Power adapter board * |
