Summary Description
Teltonika TRB145. Product colour: Grey. Antenna connector type: SMA. Processor frequency: 1200 MHz, Internal memory: 128 MB, Flash memory: 512 MB. Cable types supported: Cat1. SIM card type: MiniSIM, Serial interface type: RS-485
Product Highlights
- Built-in processor 1200 MHz 128 MB 512 MB
- SMA
- Grey
Description

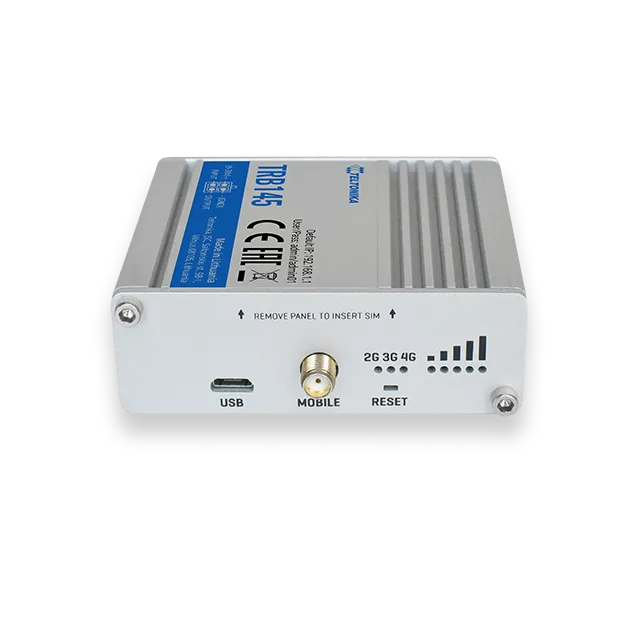

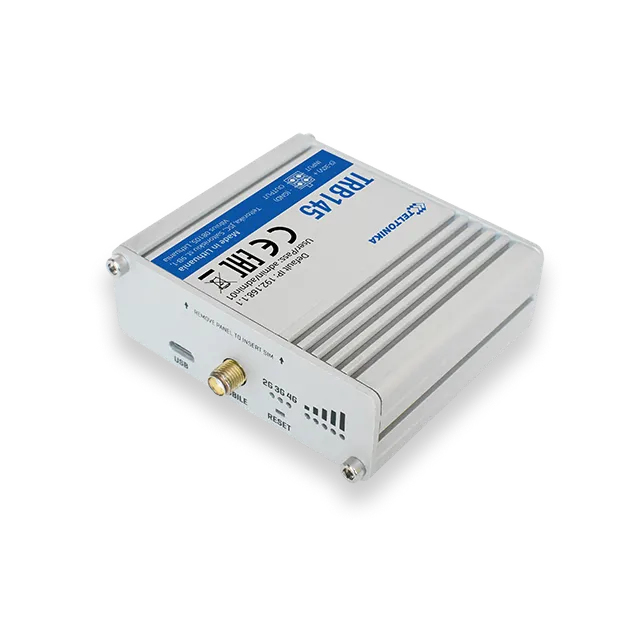

TRB145
Industrial LTE Cat 1 Gateway Board TRB145 is equipped with RS485 Interface, Digital Inputs/Outputs and micro-USB port. TRB145 compact design makes this Gateway perfect for an application where a sole gadget must be remotely controlled over RS485 interface. TRB145 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.
Industrial LTE Cat 1 Gateway Board TRB145 is equipped with RS485 Interface, Digital Inputs/Outputs and micro-USB port. TRB145 compact design makes this Gateway perfect for an application where a sole gadget must be remotely controlled over RS485 interface. TRB145 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.
Product Specifications
Design
| Specification | Details |
|---|---|
| Product colour | Grey |
| LED indicators | Yes |
Features
| Specification | Details |
|---|---|
| Antenna connector type | SMA |
Performance
| Specification | Details |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Number of processors installed | 1 |
| Internal memory | 128 MB |
| Flash memory | 512 MB |
Network
| Specification | Details |
|---|---|
| Full duplex | Yes |
| Cable types supported | Cat1 |
Security
| Specification | Details |
|---|---|
| Firewall security | Yes |
Ports & interfaces
| Specification | Details |
|---|---|
| USB 2.0 ports quantity | 1 |
| SIM card slot | Yes |
| SIM card type | MiniSIM |
| Digital output ports quantity | 2 |
| Serial interface type | RS-485 |
Management features
| Specification | Details |
|---|---|
| Reset button | Yes |
Power
| Specification | Details |
|---|---|
| DC input voltage | 9 - 30 V |
Weight & dimensions
| Specification | Details |
|---|---|
| Width | 60 mm |
| Depth | 70 mm |
| Height | 18 mm |
| Weight | 149.8 g |
Operational conditions
| Specification | Details |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
