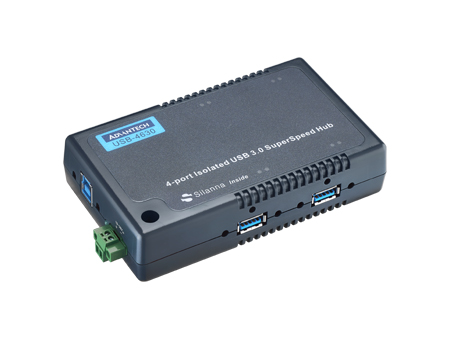

ULI-414HCL 4-Port USB3.0 Isolated Hub

SKU: USB-4630-BE
GTIN (EAN/UPC): 4719879826135
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13047/image_1920?unique=7b4a84b

kr 3,996.98 3996.98 NOK kr 3,996.98 VAT Excluded

kr 3,996.98 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ULI-414HCL is a high-performance 4-port isolated USB 3.0 hub designed for industrial applications. It offers SuperSpeed data transfer at 5 Gbps, equipped with advanced ESD protection and supports power input from 10 to 30 VDC.

    Key Features

    • Four Isolated USB 3.0 Ports
    • 5 Gbps SuperSpeed Data Transfer
    • 2,500 VDC Voltage Isolation
    • ±15 kV ESD Protection
    • Supports External and USB Bus Power
    • Operating Temperature: 0 to 70°C
    • Metal Enclosure for Durability
    • LED Indicators for Each Port
    • Compliant with USB 3.2 Gen 1
    • DIN Rail Mounting Support

    Key Applications

    • Industrial Automation
    • Data Acquisition Systems
    • Embedded System Integration

    Description

    The ULI-414HCL USB3.0 Isolated Hub features four isolated USB 3.0 SuperSpeed ports for high-speed connectivity. It offers 2,500 VDC voltage isolation to protect connected devices. The hub is equipped with ESD protection up to ±15 kV and supports external power or USB bus power. Ideal for industrial applications, it operates reliably in temperatures from 0°C to 70°C.

    Product Specifications

    Specification Details
    USB Port Specifications
    Upstream USB PortMaximum Transfer Rate:
    • SuperSpeed (5 Gbps)

    Connector Type:
    • Type B (Female)

    Port Number:
    • 1

    Downstream USB PortStandard:
    • USB 3.2 Gen 1 / USB 3.0

    Maximum Transfer Rate:
    • SuperSpeed (5 Gbps)

    Connector Type:
    • Type A (Female)

    Port Number:
    • 4

    Environment
    Operating Temperature
    • 0 ~ 70°C (32 ~ 158°F)
    ProtectionESD Protection:
    • 8 kV (Contact); 15 kV (Air)

    Isolation:
    • 2,500 VDC

    Power
    Power Input (DC)
    • 10 ~ 30 VDC
    Accessory General
    Mounting
    • DIN Rail
    Enclosure
    • Metal
