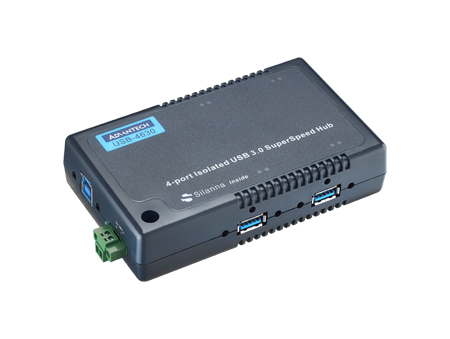

ULI-414HCL 4-Port USB3.0 Isolated Hub
| SKU: | USB-4630-BE |
| GTIN (EAN/UPC): | 4719879826135 |
| Brand: | Advantech |
Summary Description
The ULI-414HCL is a high-performance 4-port isolated USB 3.0 hub designed for industrial applications. It offers SuperSpeed data transfer at 5 Gbps, equipped with advanced ESD protection and supports power input from 10 to 30 VDC.
Key Features
- Four Isolated USB 3.0 Ports
- 5 Gbps SuperSpeed Data Transfer
- 2,500 VDC Voltage Isolation
- ±15 kV ESD Protection
- Supports External and USB Bus Power
- Operating Temperature: 0 to 70°C
- Metal Enclosure for Durability
- LED Indicators for Each Port
- Compliant with USB 3.2 Gen 1
- DIN Rail Mounting Support
Key Applications
- Industrial Automation
- Data Acquisition Systems
- Embedded System Integration
Description
The ULI-414HCL USB3.0 Isolated Hub features four isolated USB 3.0 SuperSpeed ports for high-speed connectivity. It offers 2,500 VDC voltage isolation to protect connected devices. The hub is equipped with ESD protection up to ±15 kV and supports external power or USB bus power. Ideal for industrial applications, it operates reliably in temperatures from 0°C to 70°C.
Product Specifications
| Specification | Details |
|---|---|
| USB Port Specifications | |
| Upstream USB Port | Maximum Transfer Rate:
Connector Type:
Port Number:
|
| Downstream USB Port | Standard:
Maximum Transfer Rate:
Connector Type:
Port Number:
|
| Environment | |
| Operating Temperature |
|
| Protection | ESD Protection:
Isolation:
|
| Power | |
| Power Input (DC) |
|
| Accessory General | |
| Mounting |
|
| Enclosure |
|
