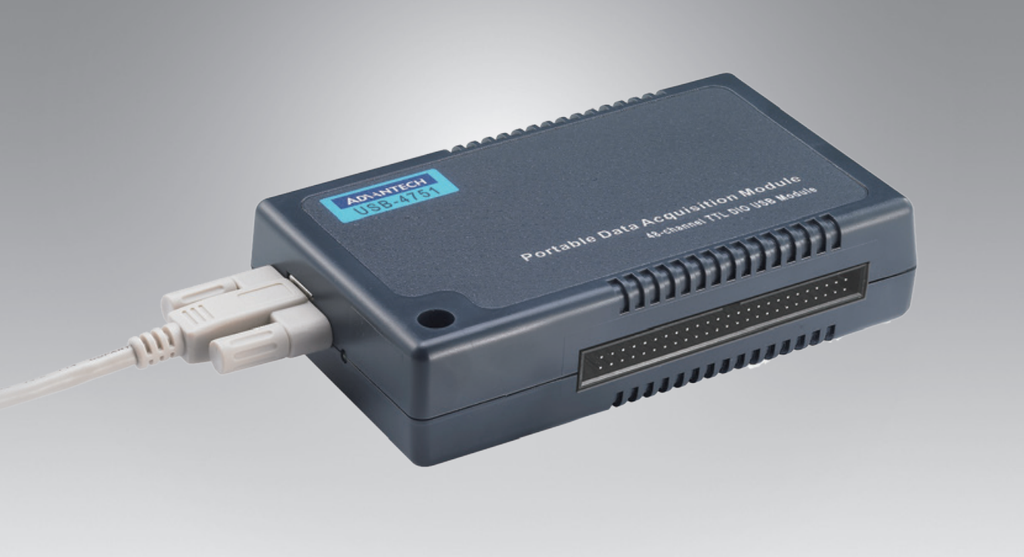

48-CH TTL DIO USB Module
| SKU: | USB-4751-AE |
| Brand: | Advantech |
Summary Description
The USB-4751 module offers 48 channels of TTL digital I/O for enhanced industrial automation. Bus-powered and easily mountable, it supports interrupt handling and is compatible with Opto-22 racks.
Key Features
- 48-channel TTL digital I/O
- Compatible with USB 1.1/2.0
- Supports both dry and wet contact
- Bus powered for portability
- Interrupt handling capability
- DIN rail mountable
- Lockable USB cable for security
- Opto-22-compatible box header
- High driving capacity buffered circuits
- Timer/Counter interrupt capability
Key Applications
- Industrial Automation
- Process Control Systems
- OEM System Integration
- Data Acquisition
- Test and Measurement
Description
The USB-4751 is a compact 48-channel digital I/O USB module, ideal for industrial automation applications. It features USB bus power, interrupt handling, and timer/counter capabilities. Compatible with all Opto-22 I/O module racks, the module supports both dry and wet contact configurations. With a rugged design suitable for DIN rail mounting, it includes a lockable USB cable for connection security.
Product Specifications
| Specification | Details |
|---|---|
| Digital Input | |
| Channels |
|
| Compatibility |
|
| Input Voltage | Logic 0:
Logic 1:
|
| Digital Output | |
| Channels |
|
| Compatibility |
|
| Output Voltage | Logic 0:
Logic 1:
|
| Output Capability | Sink:
Source: Single Channel:
All Channels High Status:
|
| Counter/Timer | |
| Channels |
|
| Resolution |
|
| Max Input Frequency |
|
| General | |
| Bus Type |
|
| I/O Connector |
|
| Dimensions |
|
| Power Consumption | Typical:
Max:
|
| Temperature | Operating:
Storage:
|
| Humidity |
|
