8ch Relay & 8ch Isolated DI USB Module

SKU: USB-4761-CE
GTIN (EAN/UPC): 4719879826784
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13050/image_1920?unique=9fe4ff9

kr 2,820.77 2820.77 NOK kr 2,820.77 VAT Excluded

kr 2,820.77 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

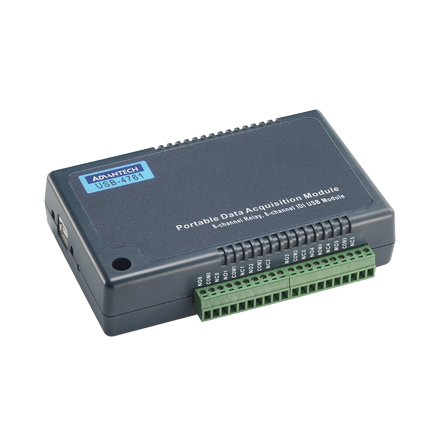

    The USB-4761-CE is an 8-channel relay and 8-channel isolated digital input USB module, offering high-voltage isolation on input channels and LED indicators for activated relays.

    Key Features

    • Portable; Compatible with USB 1.1/2.0
    • Bus-powered operation
    • 8 relay output channels, 8 isolated digital input channels
    • LED indicators for relay status
    • Input isolation protection: 2,500 VDC
    • High ESD protection: 2,000 VDC
    • Interrupt handling capability
    • DIN-rail mounting compatible
    • Lockable USB cable included

    Key Applications

    • Industrial Automation
    • Building Management
    • Factory Control Systems
    • Process Control
    • Instrumentation

    Description

    The USB-4761-CE provides high-voltage isolation on input channels (2,500 VDC) and high ESD protection (2,000 VDC). It includes 8 relay output channels with LED indicators and supports an array of programming languages. Suitable for DIN-rail mounting with a bus-powered design, it includes one lockable USB cable for secure connections.

    Product Specifications

    Specification Details
    General
    Programming Language
    • C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
    Digital Input
    Channels
    • 8 (Isolated)
    Isolation Protection
    • 2,500 VDC
    Relay Output
    Channels
    • 8 Form C
    Contact Rating (Resistive)
    • 1 A @ 30 VDC, 0.3 A @ 110 VAC, 0.5 A @ 120 VAC, 0.25 A @ 240 VAC
