  2. Aten Video HDMI HDBaseT Extender VE801

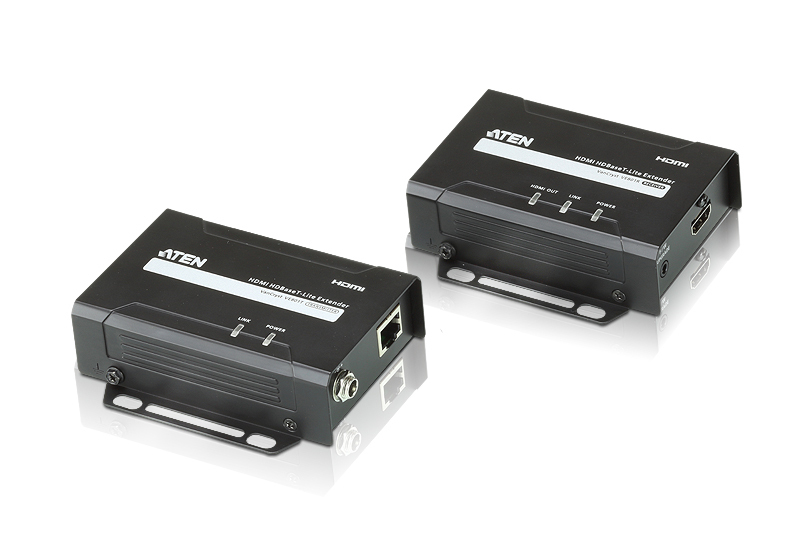

Aten Video HDMI HDBaseT Extender VE801

SKU: VE801-AT-G
Brand: Aten
https://safeconsulting.no/web/image/product.template/13934/image_1920?unique=9d3b09e

kr 2,310.00 2310.0 NOK kr 2,310.00 VAT Excluded

kr 2,310.00 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B). Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5, Cat6, Cat6a. Connectivity technology: Wired. Weight: 780 g, Receiver dimensions (WxDxH): 34.3 x 98.6 x 30 mm, Receiver weight: 250 g. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm. Master (outer) case width: 250 mm, Master (outer) case length: 325 mm, Master (outer) case height: 175 mm

    Key Features

    • AV transmitter & receiver 3840 x 2160 pixels Black
    • Maximum transfer distance: 70 m
    • HDCP
    • Wired DC-in jack

    Key Applications

    • Digital Entertainment Centers
    • Professional AV Installations
    • Long-Distance HDMI Transmission
    • Corporate Presentations
    • Conference Room Setups
    • High-Resolution Video Processing
    • Lecture Halls
    • Large Venue Displays
    • Control Rooms
    • Signage Displays

    Description

    The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
    1x VE801T/R HDMI HDBaseT-Lite Extender
    2x 0AD6-1F05-26EG Power Adapters
    1x User Instructions

    Product Specifications

    Specification Details
    Features
    Type
    • AV transmitter & receiver
    Maximum resolution
    • 3840 x 2160
    Cable types supported
    • Cat5,Cat6,Cat6a
    Maximum transfer distance
    • 70
    LED indicators
    • Yes
    Supported video modes
    • 1080p
    Bandwidth
    • 340
    HDCP
    • Yes
    Material
    • Metal
    Product colour
    • Black
    Ports & interfaces
    Connectivity technology
    • Wired
    RJ-45 input ports
    • 1
    RJ-45 output ports
    • 1
    HDMI in
    • 1
    Number of HDMI outputs
    • 1
    DC-in jack
    • Yes
    Operational conditions
    Operating temperature (T-T)
    • 0 - 50
    Storage temperature (T-T)
    • -20 - 60
    Operating relative humidity (H-H)
    • 0 - 80
    Weight & dimensions
    Weight
    • 780
    Receiver dimensions (WxDxH)
    • 34.3 x 98.6 x 30
    Receiver weight
    • 250
    Transmitter dimensions (WxDxH)
    • 34.3 x 98.6 x 30
    Transmitter weight
    • 240
    Packaging data
    Package width
    • 59
    Package depth
    • 239
    Package height
    • 160
    Package weight
    • 841
    Packaging content
    AC adapter included
    • Yes
    Technical details
    Compliance certificates
    • RoHS
    Logistics data
    Master (outer) case width
    • 250
    Master (outer) case length
    • 325
    Master (outer) case height
    • 175
    Master (outer) case gross weight
    • 4600
    Master (outer) case net weight
    • 3900
    Products per master (outer) case
    • 5
