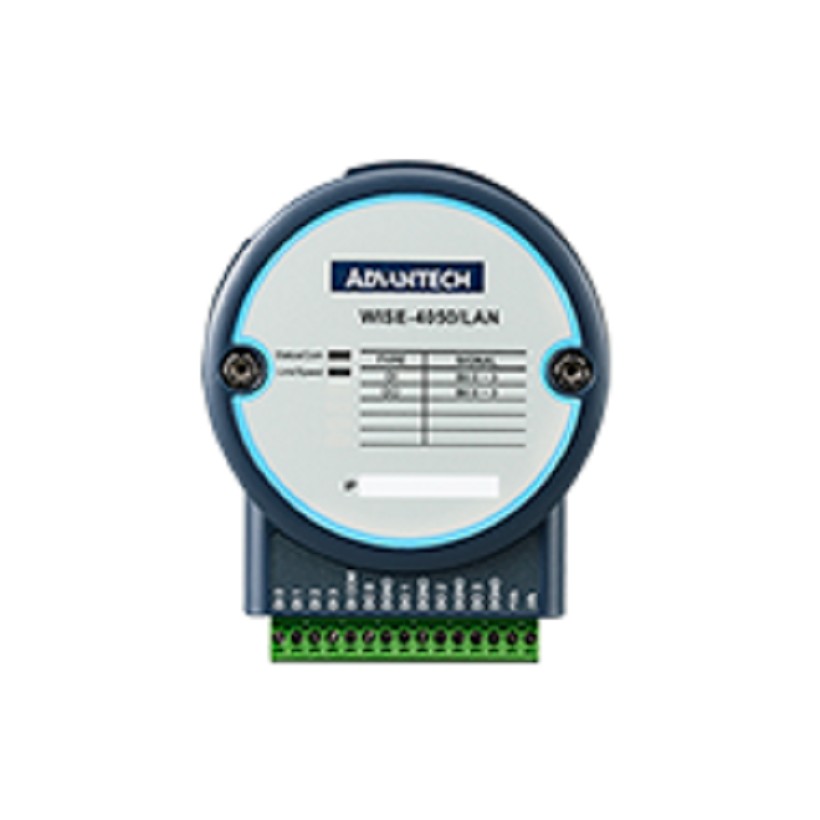

4-ch DI and 4-ch DO IoT Ethernet I/O Module

4-ch DI and 4-ch DO IoT Ethernet I/O Module

SKU:	WISE-4050LAN-B
GTIN (EAN/UPC):	4719879824926
Brand:	Advantech

kr 1,905.47 1905.47 NOK kr 1,905.47 VAT Excluded

kr 1,905.47 VAT Excluded

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The WISE-4050LAN-B is a 4-channel DI and 4-channel DO IoT Ethernet I/O module supporting Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, and MQTT. It offers local logging with RTC timestamps and is suitable for mobile web configuration.

Key Features

Supports Modbus/TCP and MQTT protocols
Local logging with RTC timestamps
Compatible with HTML5 web configurations
Reliable 10~30VDC power input
High isolation protection

Key Applications

Industrial Automation
Remote Monitoring Systems
Building Management Systems
Smart Metering
IoT Data Logging

Description

This IoT Ethernet I/O Module comes with 4 DI and 4 DO channels, offering versatile connectivity with 1 x RJ45 and a 15-pin plug-in screw terminal. It supports a broad range of protocols and can operate in harsh environmental conditions with temperature tolerance from -40 to 70°C.

Product Specifications

Specification	Details
General
Connectors	1 x RJ45, 1 x 15-pin plug-in screw terminal
Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Communications
Interface	Ethernet
Isolated Digital Input
Channels	4
Input Voltage	Dry Contact: Logic level 1: close to DI COM, Logic level 0: open; Wet Contact: Logic level 1: 10~30 VDC, Logic level 0: 0~3 VDC
Isolation Protection	3000 Vrms
Environment
Operating Temperature	-40~70 °C (-40~158 °F)
Storage Humidity	0~95% RH (non-condensing)
Storage Temperature	-40~85 °C (-40~185 °F)
Isolated Digital Output
Channels	4
Isolation Protection	3000 Vrms
Output Type	Sink
Output Voltage	0~30 VDC
Sink Current	500 mA max./channel
Power Requirements
Input Voltage	10~30 VDC
