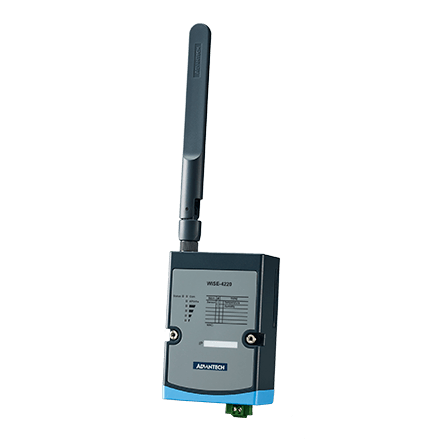

IoT WSN with Temperature & Humidity Sensor

SKU: WISE-4220-S231A
GTIN (EAN/UPC): 4719879824964
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13046/image_1920?unique=9fe4ff9

kr 2,824.83 2824.83 NOK kr 2,824.83 VAT Excluded

kr 2,824.83 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    WISE-4220-S231A is an IoT Circuit Board that includes a temperature and humidity sensor, designed to enable easy data acquisition via 2.4GHz Wi-Fi, and can extend networks by adding APs. It integrates seamlessly with existing Ethernet systems, supports configuration via mobile devices sans software, and ensures data logging with zero loss.

    Key Features

    • 2.4GHz Wi-Fi for Reduced Wiring Cost
    • Mobile Device Configuration
    • Zero Data Loss Logging
    • RESTful Web API Support
    • Automatic Data Push to Cloud

    Key Applications

    • Temperature Monitoring
    • Humidity Sensing
    • IoT Data Acquisition
    • Remote Sensor Integration
    • Industrial IoT Networks

    Description

    The WISE-4220-S231A is a versatile circuit board with a focus on IoT applications, offering built-in temperature and humidity sensors. It provides cost-effective data acquisition using 2.4GHz Wi-Fi, reducing the need for extensive wiring. The device is configurable through mobile devices without needing additional software. It supports RESTful web APIs and can automatically transfer data to Dropbox or a computer. The board is suitable for seamless integration within existing Ethernet infrastructures and offers reliable data logging with RTC timestamp.

    Product Specifications

    Specification Details
    General
    Protocol
    • Modbus/TCP
    • TCP/IP
    • UDP
    • HTTP
    • DHCP
    Hardware
    Certification
    • CE
    • FCC Class A
    • IC
    • NCC
    • SRRC
    • RCM
    • VCCI
    • TELEC
    LED Indicators
    • Status
    • Line-power
    • Wireless Com
    • Initial/Normal
    • Signal Strength
    Power Consumption
    • 1.2 W @ 24 VDC
    Power Input
    • 10~50 VDC
    Environment
    Operating Temperature
    • -25~70 °C (-13~158 °F)
    Relative Humidity
    • 20~95% RH (non-condensing)
    Storage Humidity
    • 0~95% RH (non-condensing)
    Storage Temperature
    • -40~85 °C (-40~185 °F)
    Power Requirements
    Input Voltage
    • 10~50 VDC
    Mechanical
    Dimension (W x H x D)
    • 70 x 102 x 38 mm
    Enclosure
    • PC
    Mounting
    • DIN-rail, Wall, Pole, Stack
    Weight (Net)
    • 0.5 kg
    Wireless Communication
    Frequency Band
    • IEEE 802.11 b/g/n 2.4 (GHz)
    Standard (Technology)
    • WIFI
    Thermocouple Input
    Resolution
    • 16-bit
