6 DO/6 DI Power Relay Module

SKU:	ADAM-6066-D
GTIN (EAN/UPC):	4719879820799
Brand:	Advantech

kr 2 629,65 2629.65 NOK kr 2 629,65 Ekskl. mva

kr 2 629,65 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

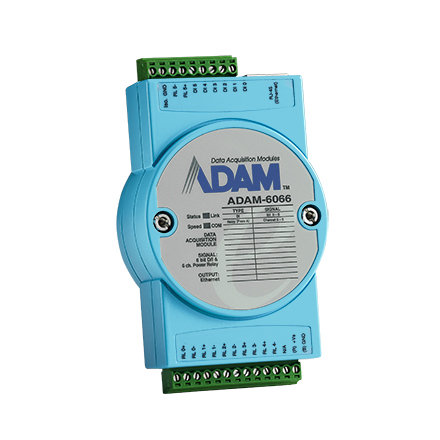

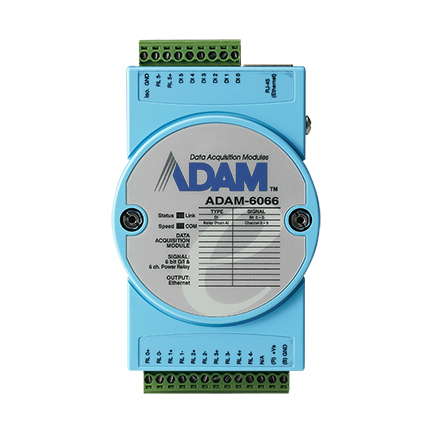

Advantech's ADAM-6066-D is an Ethernet-based smart I/O module with 6-ch DI and 6-ch Relay. It supports multiple protocols for IoT applications including Modbus/TCP, SNMP, and MQTT, allowing remote monitoring and control.

Nøkkelfunksjoner

Ethernet-based smart I/O
Supports Modbus/TCP, SNMP, MQTT
Supports multiple web languages
Flexible user-defined Modbus address
Intelligent control with peer-to-peer functionality

Viktige bruksområder

Remote IoT Control
Industrial Automation
Energy Management Systems
Building Management Systems

Beskrivelse

The ADAM-6066-D features flexible user-defined Modbus address and intelligent control via peer-to-peer and GCL functionalities. With support for various protocols and web languages, it allows active I/O messaging and group configuration setups across multiple modules. Ideal for remote IoT management.

Produktspesifikasjoner

Specification	Details
General
Connectors	1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
Protocol	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
Communications
Interface	Ethernet
Counter/Encoder Input
Channels	8
Max. Input Frequency	3 kHz
Isolated Digital Input
Channels	6
Input Voltage	Dry Contact: Logic level 0: close to GND, Logic level 1: open Wet Contact: Logic level 1: 10~30 VDC, Logic level 0: 0~3 VDC
Environment
Isolation Voltage	2,000 VDC
Operating Temperature	-40~70 °C (-40~158 °F)
Relay Output
Channels	6
Contact Rating (Resistive)	3 A @ 30 VDC, 5 A @ 250 VAC
Relay Type	1 x Form A
Power Requirements
Input Voltage	10~30 VDC
