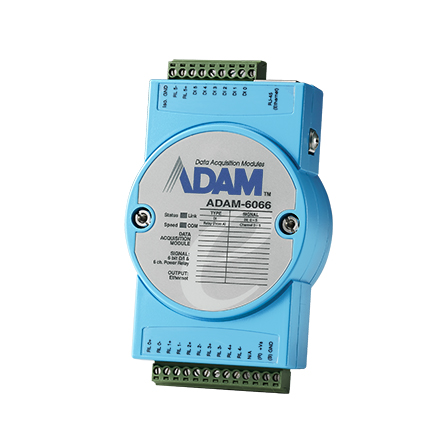

6 DO/6 DI Power Relay Module

SKU: ADAM-6066-D
GTIN (EAN/UPC): 4719879820799
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12880/image_1920?unique=1b7ede1

kr 2,621.85 2621.85 NOK kr 2,621.85 VAT Excluded

kr 2,621.85 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    Advantech's ADAM-6066-D is an Ethernet-based smart I/O module with 6-ch DI and 6-ch Relay. It supports multiple protocols for IoT applications including Modbus/TCP, SNMP, and MQTT, allowing remote monitoring and control.

    Key Features

    • Ethernet-based smart I/O
    • Supports Modbus/TCP, SNMP, MQTT
    • Supports multiple web languages
    • Flexible user-defined Modbus address
    • Intelligent control with peer-to-peer functionality

    Key Applications

    • Remote IoT Control
    • Industrial Automation
    • Energy Management Systems
    • Building Management Systems

    Description

    The ADAM-6066-D features flexible user-defined Modbus address and intelligent control via peer-to-peer and GCL functionalities. With support for various protocols and web languages, it allows active I/O messaging and group configuration setups across multiple modules. Ideal for remote IoT management.

    Product Specifications

    Specification Details
    General
    Connectors
    • 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
    Protocol
    • Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
    Communications
    Interface
    • Ethernet
    Counter/Encoder Input
    Channels
    • 8
    Max. Input Frequency
    • 3 kHz
    Isolated Digital Input
    Channels
    • 6
    Input Voltage
    • Dry Contact: Logic level 0: close to GND, Logic level 1: open
    • Wet Contact: Logic level 1: 10~30 VDC, Logic level 0: 0~3 VDC
    Environment
    Isolation Voltage
    • 2,000 VDC
    Operating Temperature
    • -40~70 °C (-40~158 °F)
    Relay Output
    Channels
    • 6
    Contact Rating (Resistive)
    • 3 A @ 30 VDC, 5 A @ 250 VAC
    Relay Type
    • 1 x Form A
    Power Requirements
    Input Voltage
    • 10~30 VDC
