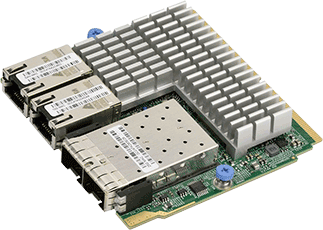

SIOM 2+2-port 25G & 10G, SFP28 & RJ45, Mellanox (Retail)

Name: SIOM 2+2-port 25G & 10G, SFP28 & RJ45, Mellanox (Retail)
Brand: supermicro
SKU: AOC-MH25G-M2S2TM-O
Price: 3953.38 NOK
Availability: OutOfStock

SKU:

AOC-MH25G-M2S2TM-O

kr 3 953,38 3953.38 NOK kr 3 953,38

kr 3 953,38

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

The Supermicro SIOM AOC-MH25G-m2S2T is a versatile 25GbE controller combining dual SFP28 and dual 10GbE RJ45 ports, designed for optimal data center connectivity.

Key Features

Dual SFP28 25GbE Ports
Dual 10GbE RJ45 Ports
Mellanox ConnectX-4 Lx EN
Intel X550 Controller
NC-SI for Remote Management
Siom Form Factor
RoCE Supported
Energy Efficient Ethernet
Jumbo Frames Support

Key Applications

Data Centers
Cloud Deployments
High-performance Computing
Networking Infrastructure
Enterprise Servers
Virtualization Environments

Description

The Supermicro AOC-MH25G-m2S2T is a high-performance 25GbE controller featuring Mellanox ConnectX-4 and Intel X550 controllers. With dual SFP28 25GbE ports and dual RJ45 10GbE ports, it ensures flexible and high-speed network connectivity for data centers. Designed for Supermicro server systems, it supports RDMA, RoCE, and enhanced virtualization features, providing superior performance and efficiency. It is ideal for data center and cloud deployments.

Product Specifications

Specification	Details
Controller Specifications
General	Super I/O Module (SIOM) Form Factor Mellanox ConnectX-4 Lx EN 25GbE Controller
Dual SFP28 Connectors	Speed: Up to 25Gbps per Port Cables Support: Direct Attach Copper Cables Fiber-optic Cables (with required optional transceivers)
Dual RJ45 Connectors	Speed: Up to 10Gbps per Port Cables Support: Category-6 up to 55m Category-6A up to 100m
Power Consumption	Maximum 25W
Operating Conditions	Operating Temperature: 0°C to 55°C (32°F to 131°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Storage Humidity: 90% non-condensing relative humidity at 35°C
Physical Dimensions	92mm (3.62in) x 87.1mm (3.43in) (W x D)
Supported Platforms	Supermicro motherboards with SIOM slot Supermicro server systems with SIOM slot
25GbE SFP28 Specifications
Ethernet	25GbE / 10GbE / 1GbE IEEE 802.3ad, 802.1AX Link Aggregation IEEE 802.1Q, 802.1P VLAN tags and priority IEEE 1588v2 Jumbo frames support (9.6KB)
Enhanced Features	Hardware-based reliable transport Collective operations offloads Vector collective operations offloads 64/66 encoding Dynamically Connected transport (DCT) Enhanced Atomic operations Support for MSI/MSI-X mechanisms
Storage Offloads	RAID offload Erasure coding (Reed-Solomon) offload
CPU Offload Features	RDMA over Converged Ethernet (RoCE) TCP/UDP/IP stateless offload LSO, LRO, checksum offload RSS (can be done on encapsulated packet) TSS, HDS, VLAN insertion/stripping Receive flow steering Intelligent interrupt coalescence
Overlay Networks	Stateless offloads for overlay networks and tunneling protocols Hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks
Hardware-Based I/O Virtualization	Single Root IOV Multi-function per port Multiple queues per virtual machine VMware NetQueue support
Virtualization	SR-IOV: Up to 256 Virtual Functions SR-IOV: Up to 16 Physical Functions per port
Management Features	Remote boot over iSCSI PXE and UEFI
OS Support	RHEL/CentOS Windows FreeBSD VMware
10GbE RJ45 Specifications
I/O Features	MXI-X Support Intel Flow Director Low Latency Multiple Queues 64 Tx and Rx per Port Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4, IPv6) Tx TCP Segmentation Offload (IPv4, IPv6)
Network Features	Jumbo frames up to 15.5KB IEEE 802.3az Energy Efficient Ethernet (EEE)
Virtualization Features	Multi-mode I/O Virtualization Operations VXLAN Stateless Offloads NVGRE Stateless Offloads Virtual Machine Device Queues (VMDq) 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port FPP 64 VFs Per Port Support for PCI-SIG SR-IOV Specification IEEE 802.1Q VLAN Support
Management Features	Preboot eXecution Environment (PXE) support iSCSI Remote Boot Support and FCoE NC-SI for remote management
OS Support	Linux RHEL, Linux SLES Windows FreeBSD VMware
Compatibility Matrices
Servers	Supermicro Servers with SIOM support
Cables & Transceivers	Networking Cables & Transceivers
Available SKUs
AOC-MH25G-m2S2T	Bracket Included: BKT-0112L Description: 2-port 25 Gigabit & 2-port 10 Gigabit Ethernet Adapter with a swappable bracket for 2U+ chassis (Storage Servers)
AOC-MH25G-m2S2TM	Bracket Included: BKT-0113L Description: 2-port 25 Gigabit & 2-port 10 Gigabit Ethernet Adapter with an internal bracket for 1U chassis (Twin Servers)
General
Compliance	RoHS Compliant 6/6, Pb Free

Optional Part List

Part Number	Quantity	Description
SFP28 Copper Cable
CBL-NTWK-0944-MS28C05M	-	0.5m 25GbE SFP28 to SFP28, Passive
CBL-NTWK-0944-MS28C10M	-	1m 25GbE SFP28 to SFP28, Passive
CBL-NTWK-0944-MS28C15M	-	1.5m 25GbE SFP28 to SFP28, Passive
CBL-NTWK-0944-MS28C20M	-	2m 25GbE SFP28 to SFP28, Passive
CBL-NTWK-0944-MS28C25M	-	2.5m 25GbE SFP28 to SFP28, Passive
CBL-NTWK-0944-MS28C30M	-	3m 25GbE SFP28 to SFP28, Passive
SFP28 Active Optical Cable
CBL-SFP28AOC-7M-EM	-	7m 25GbE SFP28 Active Optical Cable, Active, Pull
CBL-SFP28AOC-10M-EM	-	10m 25GbE SFP28 Active Optical Cable, Active, Pull
SFP28 Transceiver Module
AOM-SFP28-25GbE-SR-1-MLN	-	SFP28 Transceiver module 25G, 850nm, MMF, LC
