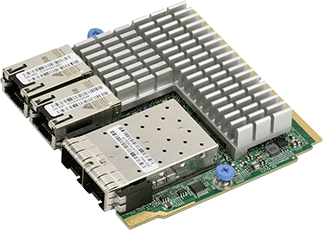

SIOM 2+2-port 25G & 10G, SFP28 & RJ45, Mellanox (Retail)

AOC-MH25G-M2S2TM-O
https://safeconsulting.no/web/image/product.template/6507/image_1920?unique=3642167

kr 3,953.38 3953.38 NOK kr 3,953.38

kr 3,953.38

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro SIOM AOC-MH25G-m2S2T is a versatile 25GbE controller combining dual SFP28 and dual 10GbE RJ45 ports, designed for optimal data center connectivity.

    Key Features

    • Dual SFP28 25GbE Ports
    • Dual 10GbE RJ45 Ports
    • Mellanox ConnectX-4 Lx EN
    • Intel X550 Controller
    • NC-SI for Remote Management
    • Siom Form Factor
    • RoCE Supported
    • Energy Efficient Ethernet
    • Jumbo Frames Support

    Key Applications

    • Data Centers
    • Cloud Deployments
    • High-performance Computing
    • Networking Infrastructure
    • Enterprise Servers
    • Virtualization Environments

    Description

    The Supermicro AOC-MH25G-m2S2T is a high-performance 25GbE controller featuring Mellanox ConnectX-4 and Intel X550 controllers. With dual SFP28 25GbE ports and dual RJ45 10GbE ports, it ensures flexible and high-speed network connectivity for data centers. Designed for Supermicro server systems, it supports RDMA, RoCE, and enhanced virtualization features, providing superior performance and efficiency. It is ideal for data center and cloud deployments.

    Product Specifications

    Specification Details
    Controller Specifications
    General
    • Super I/O Module (SIOM) Form Factor
    • Mellanox ConnectX-4 Lx EN 25GbE Controller
    Dual SFP28 ConnectorsSpeed:
    • Up to 25Gbps per Port

    Cables Support:
    • Direct Attach Copper Cables
    • Fiber-optic Cables (with required optional transceivers)

    Dual RJ45 ConnectorsSpeed:
    • Up to 10Gbps per Port

    Cables Support:
    • Category-6 up to 55m
    • Category-6A up to 100m

    Power Consumption
    • Maximum 25W
    Operating ConditionsOperating Temperature:
    • 0°C to 55°C (32°F to 131°F)

    Storage Temperature:
    • -40°C to 70°C (-40°F to 158°F)

    Storage Humidity:
    • 90% non-condensing relative humidity at 35°C

    Physical Dimensions
    • 92mm (3.62in) x 87.1mm (3.43in) (W x D)
    Supported Platforms
    • Supermicro motherboards with SIOM slot
    • Supermicro server systems with SIOM slot
    25GbE SFP28 Specifications
    Ethernet
    • 25GbE / 10GbE / 1GbE
    • IEEE 802.3ad, 802.1AX Link Aggregation
    • IEEE 802.1Q, 802.1P VLAN tags and priority
    • IEEE 1588v2
    • Jumbo frames support (9.6KB)
    Enhanced Features
    • Hardware-based reliable transport
    • Collective operations offloads
    • Vector collective operations offloads
    • 64/66 encoding
    • Dynamically Connected transport (DCT)
    • Enhanced Atomic operations
    • Support for MSI/MSI-X mechanisms
    Storage Offloads
    • RAID offload
    • Erasure coding (Reed-Solomon) offload
    CPU Offload Features
    • RDMA over Converged Ethernet (RoCE)
    • TCP/UDP/IP stateless offload
    • LSO, LRO, checksum offload
    • RSS (can be done on encapsulated packet)
    • TSS, HDS, VLAN insertion/stripping
    • Receive flow steering
    • Intelligent interrupt coalescence
    Overlay Networks
    • Stateless offloads for overlay networks and tunneling protocols
    • Hardware offload of encapsulation and decapsulation of NVGRE and VXLAN overlay networks
    Hardware-Based I/O Virtualization
    • Single Root IOV
    • Multi-function per port
    • Multiple queues per virtual machine
    • VMware NetQueue support
    Virtualization
    • SR-IOV: Up to 256 Virtual Functions
    • SR-IOV: Up to 16 Physical Functions per port
    Management Features
    • Remote boot over iSCSI
    • PXE and UEFI
    OS Support
    • RHEL/CentOS
    • Windows
    • FreeBSD
    • VMware
    10GbE RJ45 Specifications
    I/O Features
    • MXI-X Support
    • Intel Flow Director
    • Low Latency
    • Multiple Queues
    • 64 Tx and Rx per Port
    • Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4, IPv6)
    • Tx TCP Segmentation Offload (IPv4, IPv6)
    Network Features
    • Jumbo frames up to 15.5KB
    • IEEE 802.3az Energy Efficient Ethernet (EEE)
    Virtualization Features
    • Multi-mode I/O Virtualization Operations
    • VXLAN Stateless Offloads
    • NVGRE Stateless Offloads
    • Virtual Machine Device Queues (VMDq)
    • 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port
    • FPP
    • 64 VFs Per Port
    • Support for PCI-SIG SR-IOV Specification
    • IEEE 802.1Q VLAN Support
    Management Features
    • Preboot eXecution Environment (PXE) support
    • iSCSI Remote Boot Support and FCoE
    • NC-SI for remote management
    OS Support
    • Linux RHEL, Linux SLES
    • Windows
    • FreeBSD
    • VMware
    Compatibility Matrices
    Servers
    • Supermicro Servers with SIOM support
    Cables & Transceivers
    • Networking Cables & Transceivers
    Available SKUs
    AOC-MH25G-m2S2TBracket Included:
    • BKT-0112L

    Description:
    • 2-port 25 Gigabit & 2-port 10 Gigabit Ethernet Adapter with a swappable bracket for 2U+ chassis (Storage Servers)

    AOC-MH25G-m2S2TMBracket Included:
    • BKT-0113L

    Description:
    • 2-port 25 Gigabit & 2-port 10 Gigabit Ethernet Adapter with an internal bracket for 1U chassis (Twin Servers)

    General
    Compliance
    • RoHS Compliant 6/6, Pb Free

    Optional Part List

    Part Number Quantity Description
    SFP28 Copper Cable
    CBL-NTWK-0944-MS28C05M-0.5m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C10M-1m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C15M-1.5m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C20M-2m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C25M-2.5m 25GbE SFP28 to SFP28, Passive
    CBL-NTWK-0944-MS28C30M-3m 25GbE SFP28 to SFP28, Passive
    SFP28 Active Optical Cable
    CBL-SFP28AOC-7M-EM-7m 25GbE SFP28 Active Optical Cable, Active, Pull
    CBL-SFP28AOC-10M-EM-10m 25GbE SFP28 Active Optical Cable, Active, Pull
    SFP28 Transceiver Module
    AOM-SFP28-25GbE-SR-1-MLN-SFP28 Transceiver module 25G, 850nm, MMF, LC
