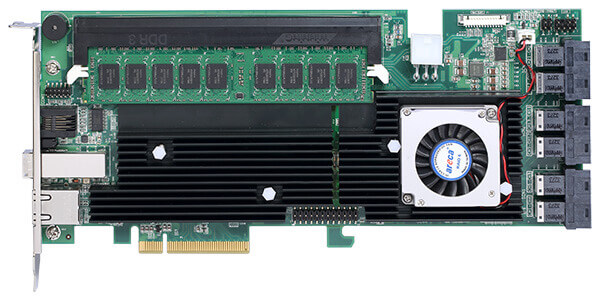

ARECA 28port 12Gb/s SAS RAID PCIe Card

Name: ARECA 28port 12Gb/s SAS RAID PCIe Card
Brand: areca
SKU: ARC-1883IX-24
Price: 15779.4 NOK
Availability: BackOrder

SKU:

ARC-1883IX-24

kr 15 779,40 15779.4 NOK kr 15 779,40

kr 15 779,40

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

The ARC-1883ix-24 offers advanced technology for increased performance and improved enterprise data protection. Designed with a 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture and PCIe 3.0 connectivity, it is ideal for the most performance-hungry data center and IT applications. The adapter provides 24 internal ports and 4 external ports with mini SAS HD connectors, delivering 12Gb/s throughput on each port.

Key Features

SES2, SMP and SGPIO Enclosure Management
Supports Up To 8GB DDR3-1866 Cache
Multiple RAID 0 and RAID 10 (1E) Support
Supports Up To 512 SAS, SATA or SSD Drives
Controller Level Hardware Encryption

Description

Product Specifications

Specification	Details
General
Host Bus Interface	8-Lane PCI Express® 3.0
Ports	24 x internal & 4 x external
Drive Connectors	6 x SFF-8643 & 1 x SFF-8644
Data Transfer Rate	Up to 12Gb/s per port
Drive Support	Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSD, using 12Gb/s SAS Expander
Cache Memory	One 240-pin DIMM socket for 2GB(default) - up to 4GB or 8GB DDR3-1866, 1RX8, or - up to 4GB or 8GB DDR3-1600, 2RX8, Unbuffered/ Registered ECC module
Physical Dimensions	Full Height: 254(L) x 98.4(H) mm
Power Dissipation	Typical: 37.4W
Operating Temperature	0 °C to 60 °C
Operating Humidity	10% to 85%, non-condensing
RAID Levels	0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
RAID-on-Chip Controller	Dual Core RAID on Chip (ROC) @ 1.2 GHz
FBM/BBM Support	ARC-1883-CAP (support cache 2GB) / ARC-1883-BAT (support cache 4~8GB) / ARC-6120BA-T121-12G
RAID Features
Features	Multiple RAID 0 and RAID 10(1E) Support (RAID 00 and RAID100) Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk Multiple RAID Selection Configurable Stripe Size Up To 1MB Support HDD Firmware Update Online Array Roaming Online RAID Level/Stripe Size Migration Online Capacity Expansion and RAID Level Migration Simultaneously Online Volume Set Growth SED (Self-Encrypting Drives) Function Support Instant Availability and Background Initialization Support Global and Dedicated Hot Spare Automatic Drive Insertion/Removal Detection and Rebuilding Support for Native 4K and 512 Byte Sector SAS and SATA Devices Support Intelligent Power Management To Save Energy and Extend Service Life Support NTP Protocol Synchronize RAID Controller Clock Over The Onboard Ethernet Port Multiple Pairs SSD/HDD Disk Clone Function SSD Automatic Monitor Clone (AMC) Support Controller Level Hardware Encryption Function Support
Operating Systems
Supported OS	Microsoft Windows Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux OpenBSD XenServer unRAID Solaris FreeBSD macOS VMware ESXi
Management Monitor
McRAID Storage Manager	Web-based GUI Management Utility Remote Configuration, Monitoring, and Notification Graphical-based Management Utility
McRAID Utility	Command-line Interface CIM Provider for VMware API Code Support
McBIOS Configuration Utility	Legacy Configuration Utility Flashable BIOS Support Firmware Built-in EFI Shell to Launch Configuration Utility
Monitors/Notification	Global HDD Activity/Fault Connector, Individual Fault Connector LCD/I²C Connector and Alarm Buzzer SNMP SMTP
