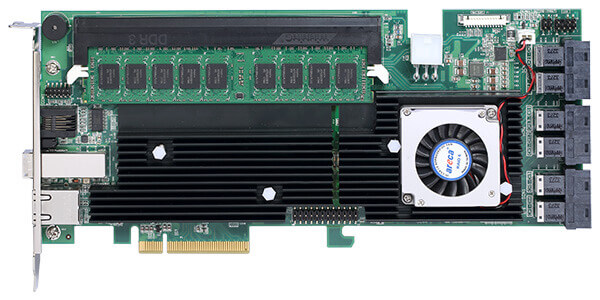

ARECA 28port 12Gb/s SAS RAID PCIe Card

ARC-1883IX-24
https://safeconsulting.no/web/image/product.template/6756/image_1920?unique=c1c7326

kr 15,779.40 15779.4 NOK kr 15,779.40

kr 15,779.40

Not Available For Sale

    This combination does not exist.

    Summary Description

    The ARC-1883ix-24 offers advanced technology for increased performance and improved enterprise data protection. Designed with a 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture and PCIe 3.0 connectivity, it is ideal for the most performance-hungry data center and IT applications. The adapter provides 24 internal ports and 4 external ports with mini SAS HD connectors, delivering 12Gb/s throughput on each port.

    Key Features

    • SES2, SMP and SGPIO Enclosure Management
    • Supports Up To 8GB DDR3-1866 Cache
    • Multiple RAID 0 and RAID 10 (1E) Support
    • Supports Up To 512 SAS, SATA or SSD Drives
    • Controller Level Hardware Encryption

    Description

    The ARC-1883ix-24 offers advanced technology for increased performance and improved enterprise data protection. Designed with a 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture and PCIe 3.0 connectivity, it is ideal for the most performance-hungry data center and IT applications. The adapter provides 24 internal ports and 4 external ports with mini SAS HD connectors, delivering 12Gb/s throughput on each port.

    Product Specifications

    Specification Details
    General
    Host Bus Interface
    • 8-Lane PCI Express® 3.0
    Ports
    • 24 x internal & 4 x external
    Drive Connectors
    • 6 x SFF-8643 & 1 x SFF-8644
    Data Transfer Rate
    • Up to 12Gb/s per port
    Drive Support
    • Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSD, using 12Gb/s SAS Expander
    Cache Memory
    • One 240-pin DIMM socket for 2GB(default) - up to 4GB or 8GB DDR3-1866, 1RX8, or - up to 4GB or 8GB DDR3-1600, 2RX8, Unbuffered/ Registered ECC module
    Physical Dimensions
    • Full Height: 254(L) x 98.4(H) mm
    Power Dissipation
    • Typical: 37.4W
    Operating Temperature
    • 0 °C to 60 °C
    Operating Humidity
    • 10% to 85%, non-condensing
    RAID Levels
    • 0, 1, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
    RAID-on-Chip Controller
    • Dual Core RAID on Chip (ROC) @ 1.2 GHz
    FBM/BBM Support
    • ARC-1883-CAP (support cache 2GB) / ARC-1883-BAT (support cache 4~8GB) / ARC-6120BA-T121-12G
    RAID Features
    Features
    • Multiple RAID 0 and RAID 10(1E) Support (RAID 00 and RAID100)
    • Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
    • Multiple RAID Selection
    • Configurable Stripe Size Up To 1MB
    • Support HDD Firmware Update
    • Online Array Roaming
    • Online RAID Level/Stripe Size Migration
    • Online Capacity Expansion and RAID Level Migration Simultaneously
    • Online Volume Set Growth
    • SED (Self-Encrypting Drives) Function Support
    • Instant Availability and Background Initialization
    • Support Global and Dedicated Hot Spare
    • Automatic Drive Insertion/Removal Detection and Rebuilding
    • Support for Native 4K and 512 Byte Sector SAS and SATA Devices
    • Support Intelligent Power Management To Save Energy and Extend Service Life
    • Support NTP Protocol Synchronize RAID Controller Clock Over The Onboard Ethernet Port
    • Multiple Pairs SSD/HDD Disk Clone Function
    • SSD Automatic Monitor Clone (AMC) Support
    • Controller Level Hardware Encryption Function Support
    Operating Systems
    Supported OS
    • Microsoft Windows
    • Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux
    • OpenBSD
    • XenServer
    • unRAID
    • Solaris
    • FreeBSD
    • macOS
    • VMware ESXi
    Management Monitor
    McRAID Storage Manager
    • Web-based GUI Management Utility
    • Remote Configuration, Monitoring, and Notification
    • Graphical-based Management Utility
    McRAID Utility
    • Command-line Interface
    • CIM Provider for VMware
    • API Code Support
    McBIOS Configuration Utility
    • Legacy Configuration Utility
    • Flashable BIOS Support
    • Firmware Built-in EFI Shell to Launch Configuration Utility
    Monitors/Notification
    • Global HDD Activity/Fault Connector, Individual Fault Connector
    • LCD/I²C Connector and Alarm Buzzer
    • SNMP
    • SMTP
