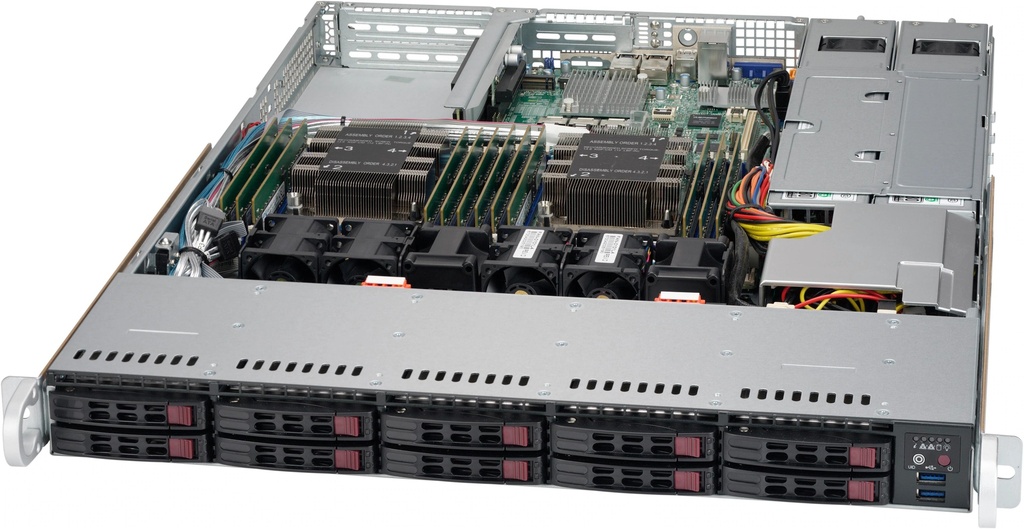

1U SC116 WIO Chassis w/ Redundant 750W Power(24 Pin PDB)

CSE-116AC2-R706WB2
https://safeconsulting.no/web/image/product.template/12673/image_1920?unique=993d255

kr 8 486,01 8486.01 NOK kr 8 486,01

kr 8 486,01

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The 1U SC116 WIO chassis features comprehensive support for E-ATX and X11 WIO motherboards. It includes 10 x 2.5" hot-swap bays and a 700/750W redundant power supply. Designed for enterprise use, it offers versatile expansion options and efficient cooling.

    Key Features

    • 1U chassis for motherboard support size of E-ATX 12"x13", 13.38"x 13.4".Optimized for X11 WIO (W series) motherboards
    • 10 x 2.5" hot-swap SAS/SATA drive bay
    • 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
    • 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
    • 2 full height expansion slot(s) , 1 low-profile expansion slot(s)
    • 4 x 40x56mm counter-rotation PWM fan(s)Optional 2 x fans for AOC cooling

    Key Applications

    • Enterprise Server Solutions
    • Data Centers
    • Cloud Computing
    • Virtualization
    • Big Data Analytics
    • Web Hosting
    • Database Management
    • High-Performance Computing
    • Content Delivery Networks
    • Virtual Desktop Infrastructure

    Description

    The Supermicro 1U SC116 WIO chassis offers support for E-ATX and various X11 WIO motherboards. It includes 10 x 2.5" hot-swap SAS/SATA drive bays, a 700/750W redundant power supply, and flexible expansion options with two full-height and one low-profile slot. Ideal for enterprise server solutions, it comes equipped with advanced cooling features and a robust power supply configuration.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 116AC2-R706WB2
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 23.5" (597 mm)
    Gross Weight
    • 40 lbs (18.14 kg)
    Packaging (W x H x L)
    • 24" (610 mm) x 8" (203 mm) x 32" (813 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    Systems Cooling
    Fans
    • Optional 2x fans for AOC cooling
    • 4x 40x56mm counter-rotation PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 750W with Input 200 - 240Vac
    • 700W with Input 100 - 140Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 320 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 62A / Min: 0.5A (200Vac - 240Vac)
    • Max: 58A / Min: 0.5A (100Vac - 140Vac)
    +5Vsb
    • Max: 3A / Min: 0A
    Power Distributor
    • PDB-PT112-S2424
    • O/P: 12V/54
    • +5V Max: 25A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-19002-0N1SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
    HD Backplane
    BPN-SAS3-116A-N21Backplane support 8x2.5" SAS3 HDD, and 2x2.5" PCIe NVMe
    Cable(s)
    CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Part(s)
    MCP-230-00038-0N1Top cover with 1 mylar for SC113, 116
    MCP-240-00099-0N11U WIO riser card bracket for SC113, SC815, SC119, SC819
    MCP-270-00023-0N11U SC116 chassis base(Redundant Power)
    MCP-290-00173-0N1SC119 Intrusion assembly upgraded version (with 3rd mounting screw hole) (cable length: 47mm)
    MCP-120-00029-0N2Blank FH L bracket without SCSI cutout for SC815,823
    MCP-120-00030-0N1Blank LP L-bracket (1 raw of capsule hole)
    Fan(s)
    FAN-0101L4440x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    Front Panel
    FPB-FP116-DU31Front control board with two USB 3.0 for SC116/SC119X
    Cooling Fan & Accessory
    MCP-320-00027-0B24Plastic pin for 40x28, 40x56 fan
    MCP-320-00028-0B1Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)
    MCP-220-00047-0B10Black gen 3rd hot-swap 2.5inch HDD tray
    Power Distributor
    PDB-PT112-S24241WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
    Power Supply & Accessory
    MCP-250-00009-0N1SC113 Redundant Power Distributor Cover
    PWS-706P-1R21U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
    Mounting Rail(s)
    MCP-290-00016-0N11U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
    MCP-290-00063-0N1setRail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
    Rear Window
    MCP-240-00098-0N1WIO rear window for SC113,SC116, SC815 Redundant PWS

    Optional Part List

    Part Number Quantity Description
    Rail
    MCP-290-00056-0N-Quick-release outer rail for square hole short-depth rack (19"~26.4")
