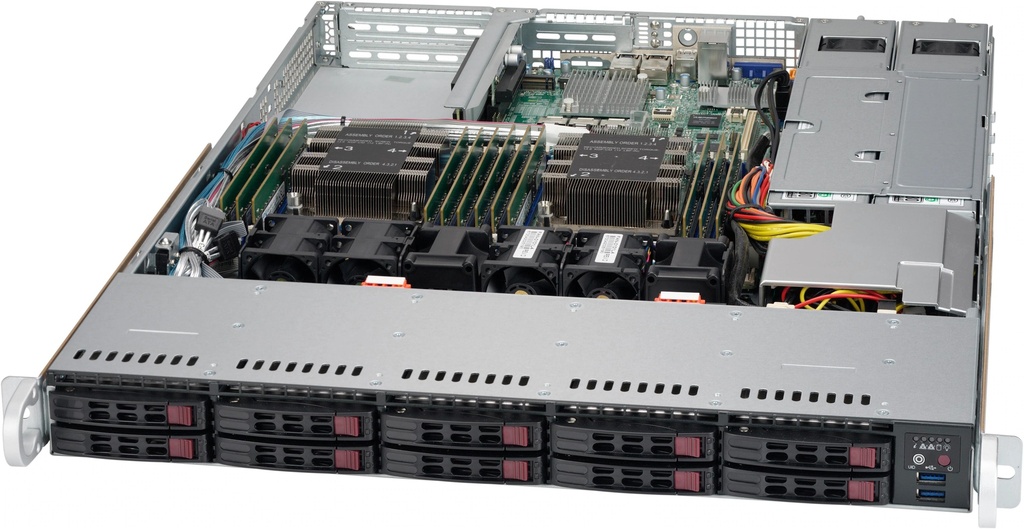

1U SC116 WIO Chassis w/ Redundant 750W Power(24 Pin PDB)

CSE-116AC2-R706WB2
https://safeconsulting.no/web/image/product.template/12673/image_1920?unique=993d255

kr 8,486.01 8486.01 NOK kr 8,486.01

kr 8,486.01

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The 1U SC116 WIO chassis features comprehensive support for E-ATX and X11 WIO motherboards. It includes 10 x 2.5" hot-swap bays and a 700/750W redundant power supply. Designed for enterprise use, it offers versatile expansion options and efficient cooling.

    Key Features

    • 1U chassis for motherboard support size of E-ATX 12"x13", 13.38"x 13.4".Optimized for X11 WIO (W series) motherboards
    • 10 x 2.5" hot-swap SAS/SATA drive bay
    • 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
    • 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
    • 2 full height expansion slot(s) , 1 low-profile expansion slot(s)
    • 4 x 40x56mm counter-rotation PWM fan(s)Optional 2 x fans for AOC cooling

    Key Applications

    • Enterprise Server Solutions
    • Data Centers
    • Cloud Computing
    • Virtualization
    • Big Data Analytics
    • Web Hosting
    • Database Management
    • High-Performance Computing
    • Content Delivery Networks
    • Virtual Desktop Infrastructure

    Description

    The Supermicro 1U SC116 WIO chassis offers support for E-ATX and various X11 WIO motherboards. It includes 10 x 2.5" hot-swap SAS/SATA drive bays, a 700/750W redundant power supply, and flexible expansion options with two full-height and one low-profile slot. Ideal for enterprise server solutions, it comes equipped with advanced cooling features and a robust power supply configuration.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 116AC2-R706WB2
    Dimensions
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 23.5" (597 mm)
    Gross Weight
    • 40 lbs (18.14 kg)
    Packaging (W x H x L)
    • 24" (610 mm) x 8" (203 mm) x 32" (813 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • HDD activity LED
    • 2 Network Activity LEDs
    • Unit Identification (UID) LED
    Systems Cooling
    Fans
    • Optional 2x fans for AOC cooling
    • 4x 40x56mm counter-rotation PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 750W with Input 200 - 240Vac
    • 700W with Input 100 - 140Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 320 x 54.5 x 40.25 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 62A / Min: 0.5A (200Vac - 240Vac)
    • Max: 58A / Min: 0.5A (100Vac - 140Vac)
    +5Vsb
    • Max: 3A / Min: 0A
    Power Distributor
    • PDB-PT112-S2424
    • O/P: 12V/54
    • +5V Max: 25A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-19002-0N1SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
    HD Backplane
    BPN-SAS3-116A-N21Backplane support 8x2.5" SAS3 HDD, and 2x2.5" PCIe NVMe
    Cable(s)
    CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Part(s)
    MCP-230-00038-0N1Top cover with 1 mylar for SC113, 116
    MCP-240-00099-0N11U WIO riser card bracket for SC113, SC815, SC119, SC819
    MCP-270-00023-0N11U SC116 chassis base(Redundant Power)
    MCP-290-00173-0N1SC119 Intrusion assembly upgraded version (with 3rd mounting screw hole) (cable length: 47mm)
    MCP-120-00029-0N2Blank FH L bracket without SCSI cutout for SC815,823
    MCP-120-00030-0N1Blank LP L-bracket (1 raw of capsule hole)
    Fan(s)
    FAN-0101L4440x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    Front Panel
    FPB-FP116-DU31Front control board with two USB 3.0 for SC116/SC119X
    Cooling Fan & Accessory
    MCP-320-00027-0B24Plastic pin for 40x28, 40x56 fan
    MCP-320-00028-0B1Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Drive Tray(s)
    MCP-220-00047-0B10Black gen 3rd hot-swap 2.5inch HDD tray
    Power Distributor
    PDB-PT112-S24241WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
    Power Supply & Accessory
    MCP-250-00009-0N1SC113 Redundant Power Distributor Cover
    PWS-706P-1R21U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
    Mounting Rail(s)
    MCP-290-00016-0N11U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
    MCP-290-00063-0N1setRail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
    Rear Window
    MCP-240-00098-0N1WIO rear window for SC113,SC116, SC815 Redundant PWS

    Optional Part List

    Part Number Quantity Description
    Rail
    MCP-290-00056-0N-Quick-release outer rail for square hole short-depth rack (19"~26.4")
