  2. 2U SC213X 11 LP Slot Chassis w/ SAS3 BPN, R.1000W,RoHS

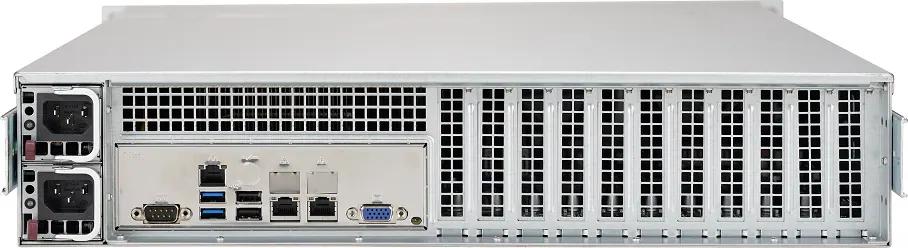

2U SC213X 11 LP Slot Chassis w/ SAS3 BPN, R.1000W,RoHS

CSE-213XAC-R1K05LP
https://safeconsulting.no/web/image/product.template/12676/image_1920?unique=b20187c

kr 14 322,48 14322.48 NOK kr 14 322,48

kr 14 322,48

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro 2U SC213X chassis is designed for high-performance computing applications. It supports up to 16 2.5" hot-swap SAS3/SATA drives and includes a powerful redundant 1000W power supply along with efficient cooling mechanisms.

    Key Features

    • 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"
    • 16 x 2.5" hot-swap SAS3/SATA drive bay
    • 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
    • 1U 800/1000W Redundant Power Supply 38mm Width
    • 11 low-profile expansion slot(s)
    • 4 x 8cm high-performance PWM fan(s)

    Key Applications

    • Data centers
    • Cloud computing
    • Enterprise storage
    • High-performance computing
    • Database servers
    • Virtualization

    Description

    The Supermicro 2U SC213X chassis provides robust performance with support for the maximum motherboard sizes up to 15.2" x 13.2". It includes 16 x 2.5" hot-swap SAS3/SATA drive bays and a 16-port 2U SAS3 backplane, ensuring high data transfer speeds. The chassis is equipped with a redundant 1000W power supply and 4 high-performance PWM fans, which offer effective cooling solutions.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 213XAC-R1K05LP
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Gross Weight
    • 58 lbs (26.31 kg)
    Packaging (W x H x L)
    • 26.4" (671 mm) x 11.3" (287 mm) x 39.8" (1011 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    LED
    • Power status LED
    • HDD activity LED
    • System Information LED
    • Power Fail LED
    • 2 Network Activity LEDs
    Systems Cooling
    Fans
    • 4x 8cm high-performance PWM fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 800/1000W Redundant Power Supply 38mm Width
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 800W with Input 100 - 127Vac
    • 1000W with Input 200 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 360 x 38 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 66.7A / Min: 0A (100Vac - 127Vac)
    • Max: 83A / Min: 0A (200Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT213X-3824
    • O/P: 12V/100A
    • +5V Max: 45A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-00078-0B1Mylar Air Shroud for SC213X (X10DRX)
    HD Backplane
    BPN-SAS3-213A1SAS3 backplane with 16x 2.5"HDD, for CSE-213AC, RoHS/REACH
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    Part(s)
    MCP-230-21302-0N1Top cover for SC213X
    MCP-290-82605-0V1826 handle
    CD-ROM & Accessory
    MCP-290-00007-011Black DVD dummy cover for SC825, 836
    Fan(s)
    FAN-0190L4480x80x38 mm, 10.5K RPM, Middle Cooling Fan for SC213X Chassis
    Front Panel
    MCP-280-00018-0N1SC826 front control board adapter
    Drive Tray(s)
    MCP-220-00009-011Black 5.25"; drive tray w/o rail (square pattern)
    MCP-220-00023-011Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
    MCP-220-00047-0B16Black gen 3rd hot-swap 2.5inch HDD tray
    Power Distributor
    PDB-PT213X-38241Power Distributor Board support stick redundant power supplies
    Power Supply & Accessory
    PWS-1K05A-1R21U 1000W Redundant Power Supply Titanium, 38X40X360mm length
    Mounting Rail(s)
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    Rear Window
    MCP-240-21302-0N111 LP Slot rear window for SC213X

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0591-cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF
    CBL-SAST-0568-Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
    CBL-SAST-0508-01-Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF
    DVD-ROM / DVD-RW
    DVM-PNSC-DVD-SBT3-BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
    MCP-220-81502-0N-Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
    Front Bezel
    MCP-210-82601-0B-Black Front Bezel for 826 chassis
    Front USB
    MCP-220-00007-01-Black USB/COM port tray for SC825, 836
    HDD Kit
    MCP-220-81506-0N-12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
    Rail
    MCP-290-00058-0N-Short rail set, quick release, 19.6"~26.9" Extendable Length
    Tray(s)
    MCP-290-00036-0B-Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
