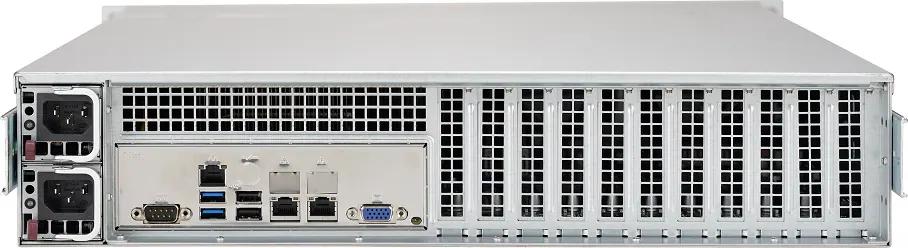

2U SC213X 11 LP Slot Chassis w/ SAS3 BPN, R.1000W,RoHS
CSE-213XAC-R1K05LP
Summary Description
The Supermicro 2U SC213X chassis is designed for high-performance computing applications. It supports up to 16 2.5" hot-swap SAS3/SATA drives and includes a powerful redundant 1000W power supply along with efficient cooling mechanisms.
Key Features
- 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"
- 16 x 2.5" hot-swap SAS3/SATA drive bay
- 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
- 1U 800/1000W Redundant Power Supply 38mm Width
- 11 low-profile expansion slot(s)
- 4 x 8cm high-performance PWM fan(s)
Key Applications
- Data centers
- Cloud computing
- Enterprise storage
- High-performance computing
- Database servers
- Virtualization
Description
The Supermicro 2U SC213X chassis provides robust performance with support for the maximum motherboard sizes up to 15.2" x 13.2". It includes 16 x 2.5" hot-swap SAS3/SATA drive bays and a 16-port 2U SAS3 backplane, ensuring high data transfer speeds. The chassis is equipped with a redundant 1000W power supply and 4 high-performance PWM fans, which offer effective cooling solutions.
Product Specifications
Specification | Details |
---|---|
Product SKUs | |
SKUs |
|
Dimensions | |
Height |
|
Width |
|
Depth |
|
Gross Weight |
|
Packaging (W x H x L) |
|
Available Color |
|
Front Panel | |
Button |
|
LED |
|
Systems Cooling | |
Fans |
|
Operating Environment (System) | |
Operating Temperature Range |
|
Non-Operating Temperature Range |
|
Operating Relative Humidity Range |
|
Non Operating Relative Humidity Range |
|
Power Supply | |
| |
Power Efficiency |
|
Total Output Power and Input |
|
AC Input Frequency |
|
Dimensions (L x W x H) |
|
Output Type |
|
+12V |
|
+5Vsb |
|
Power Distributor |
|
Certification |
|
Regulatory (Power Supply) | |
Power Supply Safety / EMC |
|
Standard Part List
Part Number | Quantity | Description |
---|---|---|
Air Shroud | ||
MCP-310-00078-0B | 1 | Mylar Air Shroud for SC213X (X10DRX) |
HD Backplane | ||
BPN-SAS3-213A | 1 | SAS3 backplane with 16x 2.5"HDD, for CSE-213AC, RoHS/REACH |
Cable(s) | ||
CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
Part(s) | ||
MCP-230-21302-0N | 1 | Top cover for SC213X |
MCP-290-82605-0V | 1 | 826 handle |
CD-ROM & Accessory | ||
MCP-290-00007-01 | 1 | Black DVD dummy cover for SC825, 836 |
Fan(s) | ||
FAN-0190L4 | 4 | 80x80x38 mm, 10.5K RPM, Middle Cooling Fan for SC213X Chassis |
Front Panel | ||
MCP-280-00018-0N | 1 | SC826 front control board adapter |
Drive Tray(s) | ||
MCP-220-00009-01 | 1 | Black 5.25"; drive tray w/o rail (square pattern) |
MCP-220-00023-01 | 1 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 |
MCP-220-00047-0B | 16 | Black gen 3rd hot-swap 2.5inch HDD tray |
Power Distributor | ||
PDB-PT213X-3824 | 1 | Power Distributor Board support stick redundant power supplies |
Power Supply & Accessory | ||
PWS-1K05A-1R | 2 | 1U 1000W Redundant Power Supply Titanium, 38X40X360mm length |
Mounting Rail(s) | ||
MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |
Rear Window | ||
MCP-240-21302-0N | 1 | 11 LP Slot rear window for SC213X |
Optional Part List
Part Number | Quantity | Description |
---|---|---|
Cable | ||
CBL-SAST-0591 | - | cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF |
CBL-SAST-0568 | - | Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF |
CBL-SAST-0508-01 | - | Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF |
DVD-ROM / DVD-RW | ||
DVM-PNSC-DVD-SBT3 | - | BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH |
MCP-220-81502-0N | - | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 |
Front Bezel | ||
MCP-210-82601-0B | - | Black Front Bezel for 826 chassis |
Front USB | ||
MCP-220-00007-01 | - | Black USB/COM port tray for SC825, 836 |
HDD Kit | ||
MCP-220-81506-0N | - | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED |
Rail | ||
MCP-290-00058-0N | - | Short rail set, quick release, 19.6"~26.9" Extendable Length |
Tray(s) | ||
MCP-290-00036-0B | - | Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 |
