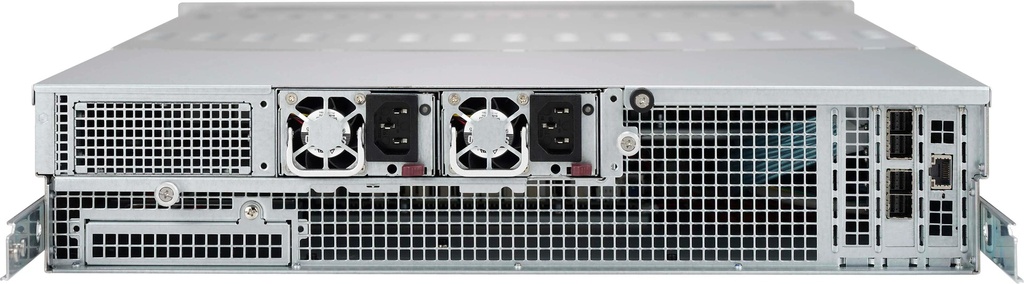

2U SC826S JBOD w/SAS3 Single Expander & 1K Redundant PWS

CSE-826SE1C-R1K02JBOD
https://safeconsulting.no/web/image/product.template/12738/image_1920?unique=cd75146

kr 30 394,65 30394.65 NOK kr 30 394,65

kr 30 394,65

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SC826S JBOD chassis provides extreme high-density storage and reliability. It features 24x SAS/SATA 12Gb/s hot-swap bays, redundant 1000W power supplies, and a JBOD control board with IPMI. Designed for professional server environments.

    Key Features

    • Extreme High Density Storage Chassis support 24x (12 front + 12 middle) 3.5" SAS/SATA 12Gb/s Hot-Swap Bays
    • Single Expander Backplane Boards support SAS/SATA HDDs with 12Gb/s throughput
    • 4x Mini-SAS HD ports for Internal/External Cascading
    • 1000W (1+1) Redundant High-efficiency Titanium Level power supplies with PMBus
    • Optimize cooling with 5x 8cm Hot-Swap redundant fans
    • JBOD Power Control Board with IPMI for remote monitor and power on-off; Internal Connection Cables Included
    • Qualified SAS HBA / controller:AOC-SAS3-9500-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9500-16E- 12Gb/s 4-external ports SAS3 HBAAOC-SAS3-9580-8I8E- 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • Data Centers
    • Enterprise Storage Servers
    • High-Density Storage Solutions
    • Backup and Archiving
    • High-Performance Computing
    • Database Management
    • Big Data Analytics
    • Cloud Storage Solutions

    Description

    The Supermicro 2U SC826S JBOD chassis offers extreme high-density storage with 24 SAS/SATA 12Gb/s hot-swap bays. Equipped with redundant 1000W power supplies and 5x 8cm hot-swap fans, it ensures optimal performance and reliability. Includes a JBOD control board with IPMI for remote monitoring and power control.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 826SE1C-R1K02JBOD
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 34" (863.6 mm)
    • 41" (1041 mm) with cable management arm installed
    Gross Weight
    • 55 lbs (24.95 kg)
    Net Weight
    • 40 lbs (18.14 kg)
    Packaging (W x H x L)
    • 29.09" (739 mm) x 11.96" (304 mm) x 51" (1295 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • 1 Network activity LEDs
    • Power Fail LED
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 5x 8cm hot-swap redundant PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 800/1000W Redundant Single Output Power Supply Titanium Level, CRPS 203mm length
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 800W with Input 100 - 127Vac
    • 1000W with Input 200 - 240Vac
    • 1000W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 203 x 73.5 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 66.7A / Min: 0A (100Vac - 127Vac)
    • Max: 83A / Min: 0A (200Vac - 240Vac)
    • Max: 83A (200Vdc - 240Vdc)
    +12Vsb
    • Max: 2.1A / Min: 0A
    Power Distributor
    • PDB-PT226S-8824
    • O/P: 12V/168A
    • +5V Max: 60A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Bracket
    MCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    MCP-120-84705-0N1LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
    HD Backplane
    BPN-SAS3-826SEL1-N422U 12-Port Expander Backplane support 8x3.5" SAS3/SATA3
    Control Board
    CSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)
    CBL-0042L124 PIN POWER CONNECTOR EXTENTION, LF
    CBL-0049L1FRONT CABLE 16 PIN TO 16 PIN, LF
    CBL-0459L2AC Power Cord Latch Clamp
    CBL-CDAT-08991I2C,1X4F/P2.5 TO 1X4F/P2.5, 65CM,26AWG,BRN/BLK-SHUNT/ORG
    CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    CBL-PWEX-09012BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,33CM,18AWG,
    CBL-PWEX-09032BPN2GPU,2X4F to 2X4F,P4.2,BK*4/YL*2/RD*2,63.5CM,18AWG,RoHS
    CBL-SAST-08364MINI SAS HD,INT,48CM,32AWG w/oSB
    CBL-SAST-08962MINI SAS HD,INT,SAS3 SSD,80CM w/SB,Flat,30AWG
    Part(s)
    MCP-120-00062-0N3Blank LP L-bracket (5x5 square hole)
    MCP-120-22601-0N12U air shroud BKT left screw-less for SC226S
    MCP-120-22602-0N12U air shroud BKT right for SC226S
    MCP-130-22602-0B1Black PDB cover for SC226S
    MCP-230-82606-0N1Top middle cover for SC826S
    MCP-240-22602-0N12U SC226S PWS & PDB housing cage
    MCP-290-00086-0N1Cable Management Arm for 1U ball bearing Chassis SC801S/801L,RoHS/REACH
    MCP-290-82615-0V12U SC226S/ 826S JBOD handle set w/o front control board
    Fan(s)
    FAN-0168L4580x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)
    Front Panel
    MCP-280-00015-0N1Front control board for SC826 (inside the left handle),FP826
    MCP-280-00018-0N1SC826 front control board adapter
    Drive Tray(s)
    MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
    MCP-220-00133-0B24Black gen 8 hot-swap 3.5" HDD tray
    Power Supply & Accessory
    PWS-1K02A-1R21U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH
    Mounting Rail(s)
    MCP-290-00139-0N1Rail set, auto-latch, quick/quick, 1U height for 2U 17.2"W SC826S
    Rear Window
    MCP-290-00132-0N1SIOM dummy cover for 226S/826S/946S
    MCP-240-82611-0N1SC826S, 226S JBOD rear window

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0677-MINI SAS HD,12G,EXT,3M,28AWG
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,28AWG
    HDD Tray Converter
    MCP-220-00140-0B-Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
    Rail
    MCP-290-11808-0N-Rail set, Quick/Quick, Auto Latch, 609.6mm Short Version, 685mm~812.8mm (Note: If short rail is used, system will not support cable management arm)
