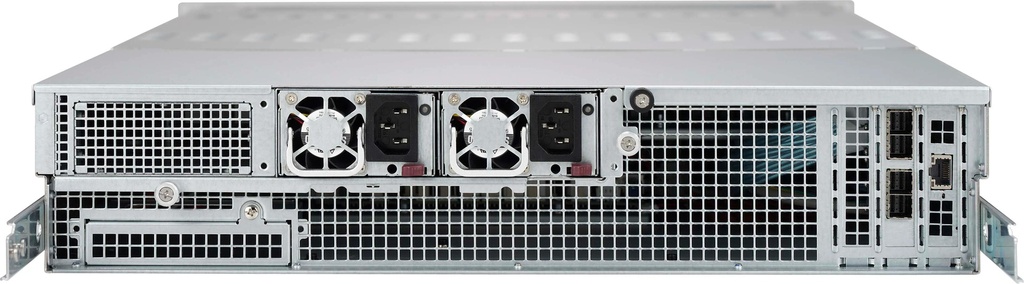

2U SC826S JBOD w/SAS3 Single Expander & 1K Redundant PWS

CSE-826SE1C-R1K02JBOD
https://safeconsulting.no/web/image/product.template/12738/image_1920?unique=b674791

kr 30,394.65 30394.65 NOK kr 30,394.65

kr 30,394.65

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro SC826S JBOD chassis provides extreme high-density storage and reliability. It features 24x SAS/SATA 12Gb/s hot-swap bays, redundant 1000W power supplies, and a JBOD control board with IPMI. Designed for professional server environments.

    Key Features

    • Extreme High Density Storage Chassis support 24x (12 front + 12 middle) 3.5" SAS/SATA 12Gb/s Hot-Swap Bays
    • Single Expander Backplane Boards support SAS/SATA HDDs with 12Gb/s throughput
    • 4x Mini-SAS HD ports for Internal/External Cascading
    • 1000W (1+1) Redundant High-efficiency Titanium Level power supplies with PMBus
    • Optimize cooling with 5x 8cm Hot-Swap redundant fans
    • JBOD Power Control Board with IPMI for remote monitor and power on-off; Internal Connection Cables Included
    • Qualified SAS HBA / controller:AOC-SAS3-9500-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9500-16E- 12Gb/s 4-external ports SAS3 HBAAOC-SAS3-9580-8I8E- 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • Data Centers
    • Enterprise Storage Servers
    • High-Density Storage Solutions
    • Backup and Archiving
    • High-Performance Computing
    • Database Management
    • Big Data Analytics
    • Cloud Storage Solutions

    Description

    The Supermicro 2U SC826S JBOD chassis offers extreme high-density storage with 24 SAS/SATA 12Gb/s hot-swap bays. Equipped with redundant 1000W power supplies and 5x 8cm hot-swap fans, it ensures optimal performance and reliability. Includes a JBOD control board with IPMI for remote monitoring and power control.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 826SE1C-R1K02JBOD
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 34" (863.6 mm)
    • 41" (1041 mm) with cable management arm installed
    Gross Weight
    • 55 lbs (24.95 kg)
    Net Weight
    • 40 lbs (18.14 kg)
    Packaging (W x H x L)
    • 29.09" (739 mm) x 11.96" (304 mm) x 51" (1295 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • Unit Identification (UID) button
    LED
    • Power status LED
    • 1 Network activity LEDs
    • Power Fail LED
    • Unit Identification (UID) LED
    • Fan Fail/System Over Heat LED
    Systems Cooling
    Fans
    • 5x 8cm hot-swap redundant PWM cooling fan(s)
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 1U 800/1000W Redundant Single Output Power Supply Titanium Level, CRPS 203mm length
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 800W with Input 100 - 127Vac
    • 1000W with Input 200 - 240Vac
    • 1000W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 203 x 73.5 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 66.7A / Min: 0A (100Vac - 127Vac)
    • Max: 83A / Min: 0A (200Vac - 240Vac)
    • Max: 83A (200Vdc - 240Vdc)
    +12Vsb
    • Max: 2.1A / Min: 0A
    Power Distributor
    • PDB-PT226S-8824
    • O/P: 12V/168A
    • +5V Max: 60A
    • +3.3V Max: 25A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL

    Standard Part List

    Part Number Quantity Description
    Bracket
    MCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    MCP-120-84705-0N1LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
    HD Backplane
    BPN-SAS3-826SEL1-N422U 12-Port Expander Backplane support 8x3.5" SAS3/SATA3
    Control Board
    CSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)
    CBL-0042L124 PIN POWER CONNECTOR EXTENTION, LF
    CBL-0049L1FRONT CABLE 16 PIN TO 16 PIN, LF
    CBL-0459L2AC Power Cord Latch Clamp
    CBL-CDAT-08991I2C,1X4F/P2.5 TO 1X4F/P2.5, 65CM,26AWG,BRN/BLK-SHUNT/ORG
    CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    CBL-PWEX-09012BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,33CM,18AWG,
    CBL-PWEX-09032BPN2GPU,2X4F to 2X4F,P4.2,BK*4/YL*2/RD*2,63.5CM,18AWG,RoHS
    CBL-SAST-08364MINI SAS HD,INT,48CM,32AWG w/oSB
    CBL-SAST-08962MINI SAS HD,INT,SAS3 SSD,80CM w/SB,Flat,30AWG
    Part(s)
    MCP-120-00062-0N3Blank LP L-bracket (5x5 square hole)
    MCP-120-22601-0N12U air shroud BKT left screw-less for SC226S
    MCP-120-22602-0N12U air shroud BKT right for SC226S
    MCP-130-22602-0B1Black PDB cover for SC226S
    MCP-230-82606-0N1Top middle cover for SC826S
    MCP-240-22602-0N12U SC226S PWS & PDB housing cage
    MCP-290-00086-0N1Cable Management Arm for 1U ball bearing Chassis SC801S/801L,RoHS/REACH
    MCP-290-82615-0V12U SC226S/ 826S JBOD handle set w/o front control board
    Fan(s)
    FAN-0168L4580x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)
    Front Panel
    MCP-280-00015-0N1Front control board for SC826 (inside the left handle),FP826
    MCP-280-00018-0N1SC826 front control board adapter
    Drive Tray(s)
    MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS
    MCP-220-00133-0B24Black gen 8 hot-swap 3.5" HDD tray
    Power Supply & Accessory
    PWS-1K02A-1R21U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH
    Mounting Rail(s)
    MCP-290-00139-0N1Rail set, auto-latch, quick/quick, 1U height for 2U 17.2"W SC826S
    Rear Window
    MCP-290-00132-0N1SIOM dummy cover for 226S/826S/946S
    MCP-240-82611-0N1SC826S, 226S JBOD rear window

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0677-MINI SAS HD,12G,EXT,3M,28AWG
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,28AWG
    HDD Tray Converter
    MCP-220-00140-0B-Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
    Rail
    MCP-290-11808-0N-Rail set, Quick/Quick, Auto Latch, 609.6mm Short Version, 685mm~812.8mm (Note: If short rail is used, system will not support cable management arm)
