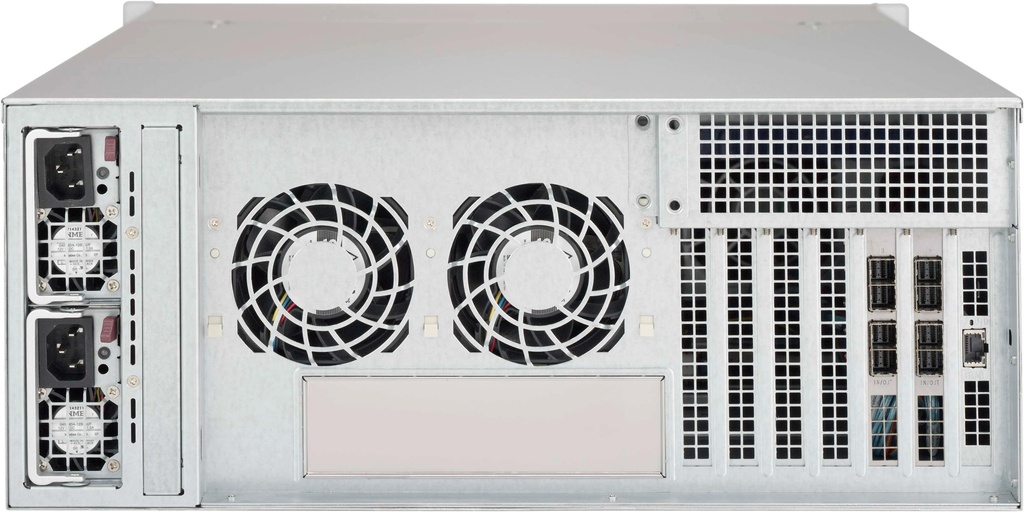

4U SC846B SAS3 24 Drive JBOD w/ Dual Expander,600W PSW

CSE-846BE2C-R609JBOD
https://safeconsulting.no/web/image/product.template/12634/image_1920?unique=4b1e99f

kr 29 710,50 29710.5 NOK kr 29 710,50

kr 29 710,50

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Summary Description

    The 4U SC846B SAS3 JBOD chassis from Supermicro offers 24 x 3.5" hot-swappable HDDs, dual expander backplane with 12Gb/s throughput, and 600W Platinum level power supplies. Ideal for cloud backup, data replication, and high-density archive storage.

    Key Features

    • Cloud Backup, Data Replication, or High Density Archive Storage Applications4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
    • Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
    • 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
    • 1x IPMI port for Remote System Power on/off and system monitoring
    • Support NTP for time synchronization & RTC battery backup
    • 600W (1+1) 94% efficient Platinum level power supplies
    • 5 hot-plug redundant cooling fans
    • Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications:
    • Qualified SAS HBA / controller:AOC-SAS3-9500-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9500-16E- 12Gb/s 4-external ports SAS3 HBAAOC-SAS3-9580-8I8E- 12Gb/s 2-external ports SAS3 RAID Controller

    Key Applications

    • High Density Archive Storage
    • Data Replication
    • Cloud Backup
    • Enterprise Storage Solutions
    • Data Centers
    • Disaster Recovery
    • IT Infrastructures
    • Large Scale Storage
    • Business Continuity
    • Redundant Storage Systems

    Description

    The Supermicro 4U SC846B SAS3 JBOD chassis offers high-density storage with capacity for 24 x 3.5" hot-swappable HDDs. Dual Expander Backplane Boards support SAS3/2 drives with 12Gb/s throughput, ideal for cloud backup, data replication, and archive storage. Features include 8 Mini-SAS HD ports, IPMI remote system monitoring, and 600W Platinum level power supplies for high efficiency.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperChassis 846BE2C-R609JBOD
    Dimensions
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 26" (660 mm)
    Gross Weight
    • 118 lbs (53.52 kg)
    Net Weight
    • 86 lbs (39 kg)
    Packaging (W x H x L)
    • 27" (686 mm) x 14.8" (376 mm) x 37.3" (947 mm)
    Available Color
    • Black
    Front Panel
    Button
    • Power On/Off button
    • System Reset button
    • Unit Identification (UID) button
    LED
    • 1 Network activity LEDs
    Systems Cooling
    Fans
    • 3x 8cm hot-swap redundant PWM cooling fan(s)
    • 2x 8cm hot-swap exhaust fan(s) & air shroud
    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 60°C (-40°F - 140°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Power Supply
    • 600W / 650W 1U Redundant Power Supply
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 650W with Input 200 - 240Vac
    • 600W with Input 100 - 127Vac
    • 650W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 54.16A / Min: 0A (200Vdc - 240Vdc)(for CCC only)
    • Max: 54.16A / Min: 0A (200Vac - 240Vac)
    • Max: 50A / Min: 0A (100Vac - 127Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT846-2824
    • O/P: 12V/135
    • +5V Max: 50A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Platinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC

    Standard Part List

    Part Number Quantity Description
    Air Shroud
    MCP-310-49003-0N1SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
    Bracket
    MCP-120-84702-0N1CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
    MCP-120-84706-0N1FH PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
    HD Backplane
    BPN-SAS3-846EL21SAS3 12G double LSI expander backplane, 4U 24x 3.5"HDD, RoHS
    Control Board
    CSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(s)
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0160L2US POWER CORD 16AWG, PB FREE
    CBL-0217L116PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
    CBL-0296L49" 4 PIN FAN PWS EXTENSION CORD, PBF
    CBL-CDAT-060114 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS
    CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    CBL-SAST-0593-018Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI]
    Part(s)
    MCP-230-82501-0N1Top cover for SC213,216,825,826,835,836,936,846
    MCP-120-00061-0N7Blank FH L-bracket (5x5 square hole)
    MCP-290-00088-0N1SC119 Intrusion assembly
    MCP-290-84603-0N1SC846 HDD Backplane Bracket
    MCP-290-84608-0N1Dual HDD opening dummy cover for 846B chassis
    MCP-260-00011-0N1I/O shield without any opening
    Fan(s)
    FAN-0125L4280x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
    FAN-0127L4380x80x38 mm 7K RPM SC846 Middle Fan w/ Housing
    Front Panel
    MCP-280-82601-0N1Front control board adapter (TB826) for SC216,826,936,846
    Drive Tray(s)
    MCP-220-00075-0B24Black gen 5.5 hot-swap 3.5" HDD tray
    Power Distributor
    PDB-PT846-28241PDB with 23pairs input connector support SC846B
    Power Supply & Accessory
    PWS-1K03A-1R21U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH
    PWS-609P-1R221U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.
    MCP-290-84604-0N1SC846 PDB Cover
    Mounting Rail(s)
    MCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2" W
    MCP-410-00007-0N1Rail screw bag
    Rear Window
    MCP-240-84602-0N1846B rear window which support 2 X 2.5" HDD module and DVD

    Optional Part List

    Part Number Quantity Description
    Cable
    CBL-SAST-0677-3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
    CBL-SAST-0573-External mini SAS HD to external mini SAS HD cable 28AWG (1M)
    CBL-SAST-0690-1-MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    Drive Trays
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
