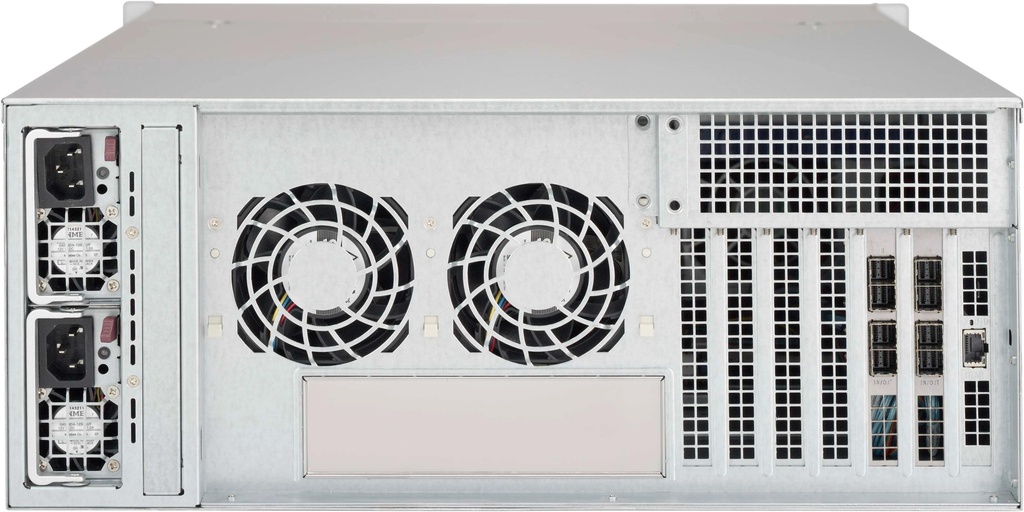

4U SC846B SAS3 24 Drive JBOD w/ Dual Expander,600W PSW
CSE-846BE2C-R609JBOD
Summary Description
The 4U SC846B SAS3 JBOD chassis from Supermicro offers 24 x 3.5" hot-swappable HDDs, dual expander backplane with 12Gb/s throughput, and 600W Platinum level power supplies. Ideal for cloud backup, data replication, and high-density archive storage.
Key Features
- Cloud Backup, Data Replication, or High Density Archive Storage Applications4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications:
- Qualified SAS HBA / controller:AOC-SAS3-9500-8E- 12Gb/s 2-external ports SAS3 HBAAOC-SAS3-9500-16E- 12Gb/s 4-external ports SAS3 HBAAOC-SAS3-9580-8I8E- 12Gb/s 2-external ports SAS3 RAID Controller
Key Applications
- High Density Archive Storage
- Data Replication
- Cloud Backup
- Enterprise Storage Solutions
- Data Centers
- Disaster Recovery
- IT Infrastructures
- Large Scale Storage
- Business Continuity
- Redundant Storage Systems
Description
The Supermicro 4U SC846B SAS3 JBOD chassis offers high-density storage with capacity for 24 x 3.5" hot-swappable HDDs. Dual Expander Backplane Boards support SAS3/2 drives with 12Gb/s throughput, ideal for cloud backup, data replication, and archive storage. Features include 8 Mini-SAS HD ports, IPMI remote system monitoring, and 600W Platinum level power supplies for high efficiency.
Product Specifications
Specification | Details |
---|---|
Product SKUs | |
SKUs |
|
Dimensions | |
Height |
|
Width |
|
Depth |
|
Gross Weight |
|
Net Weight |
|
Packaging (W x H x L) |
|
Available Color |
|
Front Panel | |
Button |
|
LED |
|
Systems Cooling | |
Fans |
|
Operating Environment (System) | |
Operating Temperature Range |
|
Non-Operating Temperature Range |
|
Operating Relative Humidity Range |
|
Non Operating Relative Humidity Range |
|
Power Supply | |
| |
Power Efficiency |
|
Total Output Power and Input |
|
AC Input Frequency |
|
Dimensions (L x W x H) |
|
Output Type |
|
+12V |
|
+5Vsb |
|
Power Distributor |
|
Certification |
|
Regulatory (Power Supply) | |
Power Supply Safety / EMC |
|
Standard Part List
Part Number | Quantity | Description |
---|---|---|
Air Shroud | ||
MCP-310-49003-0N | 1 | SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB |
Bracket | ||
MCP-120-84702-0N | 1 | CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF |
MCP-120-84706-0N | 1 | FH PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF |
HD Backplane | ||
BPN-SAS3-846EL2 | 1 | SAS3 12G double LSI expander backplane, 4U 24x 3.5"HDD, RoHS |
Control Board | ||
CSE-PTJBOD-CB3 | 1 | JBOD chassis power control board with IPMI remote on/off feature |
Cable(s) | ||
CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
CBL-0217L | 1 | 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF |
CBL-0296L | 4 | 9" 4 PIN FAN PWS EXTENSION CORD, PBF |
CBL-CDAT-0601 | 1 | 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS |
CBL-NTWK-0587 | 1 | INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD |
CBL-SAST-0593-01 | 8 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI] |
Part(s) | ||
MCP-230-82501-0N | 1 | Top cover for SC213,216,825,826,835,836,936,846 |
MCP-120-00061-0N | 7 | Blank FH L-bracket (5x5 square hole) |
MCP-290-00088-0N | 1 | SC119 Intrusion assembly |
MCP-290-84603-0N | 1 | SC846 HDD Backplane Bracket |
MCP-290-84608-0N | 1 | Dual HDD opening dummy cover for 846B chassis |
MCP-260-00011-0N | 1 | I/O shield without any opening |
Fan(s) | ||
FAN-0125L4 | 2 | 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing |
FAN-0127L4 | 3 | 80x80x38 mm 7K RPM SC846 Middle Fan w/ Housing |
Front Panel | ||
MCP-280-82601-0N | 1 | Front control board adapter (TB826) for SC216,826,936,846 |
Drive Tray(s) | ||
MCP-220-00075-0B | 24 | Black gen 5.5 hot-swap 3.5" HDD tray |
Power Distributor | ||
PDB-PT846-2824 | 1 | PDB with 23pairs input connector support SC846B |
Power Supply & Accessory | ||
PWS-1K03A-1R | 2 | 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH |
PWS-609P-1R2 | 2 | 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac. |
MCP-290-84604-0N | 1 | SC846 PDB Cover |
Mounting Rail(s) | ||
MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2" W |
MCP-410-00007-0N | 1 | Rail screw bag |
Rear Window | ||
MCP-240-84602-0N | 1 | 846B rear window which support 2 X 2.5" HDD module and DVD |
Optional Part List
Part Number | Quantity | Description |
---|---|---|
Cable | ||
CBL-SAST-0677 | - | 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
CBL-SAST-0573 | - | External mini SAS HD to external mini SAS HD cable 28AWG (1M) |
CBL-SAST-0690-1 | - | MINI SAS HD,12G,EXT,2M,30AWG,RoHS |
Drive Trays | ||
MCP-220-00118-0B | - | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH |
