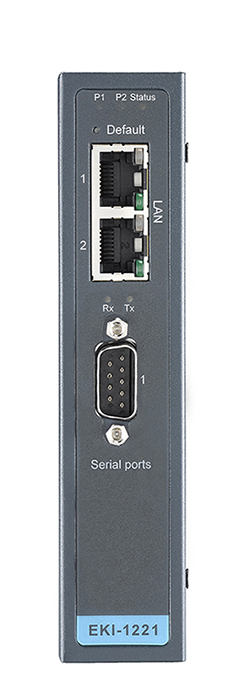

1-port Modbus Gateway

SKU: EKI-1221-CE
GTIN (EAN/UPC): 4719879822540
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12921/image_1920?unique=9fe4ff9

kr 3 705,16 3705.16 NOK kr 3 705,16 Ekskl. mva

kr 3 705,16 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Beskrivelsesammendrag

    The EKI-1221-CE is a 1-Port RS-232/422/485 Serial Modbus Gateway designed to integrate Modbus TCP and Modbus RTU/ASCII networks, offering LAN redundancy.

    Nøkkelfunksjoner

    • Redundant Ethernet ports for reliability
    • Integration of Modbus TCP and RTU/ASCII
    • Supports up to 921.6 kbps baud rate
    • DIN-rail and wall mounting options
    • Built-in surge and ESD protection

    Viktige bruksområder

    • Industrial Automation
    • Remote Monitoring
    • Data Collection Systems

    Beskrivelse

    The EKI-1221-CE 1-Port Modbus Gateway provides dual 10/100 Mbps Ethernet ports for LAN redundancy. It supports Modbus TCP and Modbus RTU/ASCII integration, with selectable RS-232/422/485 communication settings. The gateway supports up to 921.6 kbps baud rate, with protection against surges and ESD for enhanced reliability and mounting flexibility.

    Produktspesifikasjoner

    Specification Details
    Power
    Power Consumption
    • 3.2W
    Power Input (DC)
    • 12 ~ 48 VDC, redundant dual inputs
    Power Operating Current
    • 0.7A @ 24 V
    Redundant Dual Inputs
    • Yes
    Protection
    Port to Port Isolation
    • -
    Reverse Polarity
    • Present
    Serial Communication
    RS-232
    • Yes
    RS-422
    • Yes
    RS-485
    • Yes
    Serial Port Connector Type
    • DB9 male
    Serial Port Number
    • 1
    Software
    Baud Rate
    • 50 ~ 921.6 Kbps
    Configuration
    • Windows utility, Web Browser
    Driver
    • Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
    Operation Mode
    • Modbus RTU Client/Server, Modbus ASCII Client/Server
    Environment
    Operating Temperature
    • -10 ~ 60°C (14 ~ 140°F)
    Storage Temperature
    • -40 ~ 85°C (-40 ~ 185°F)
    Mechanism
    Dimensions (W x H x D)
    • 36.6 x 140 x 95 mm (1.44 x 5.51 x 3.74 in.)
    Enclosure (Metal)
    • Metal with solid mounting hardware
    IP Rating
    • IP30
    Mounting (DIN-rail)
    • Yes
    Mounting (Wall)
    • Yes
    Weight
    • 0.472 kg
    Ethernet Communication
    Ethernet Standard
    • IEEE 802.3 , 802.3ab , 802.3u
    RJ-45 Port Connector Type
    • RJ-45
    RJ-45 Port Number
    • 2
    RJ-45 Transmission Speed
    • 10/100 Mbps
    Certification
    EMC
    • CE, FCC
    EMI
    • EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
    EMS
    • EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
    Freefall
    • IEC 60068-2-32
    Safety
    • IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX
    Shock
    • IEC 60068-2-27
    Vibration
    • IEC 60068-2-6
    Warranty
    Warranty Period
    • 5 years
    Protocol Support
    Modbus ASCII
    • Yes
    Ethernet
    • Yes
    Modbus RTU
    • Yes
    Modbus TCP
    • Yes
