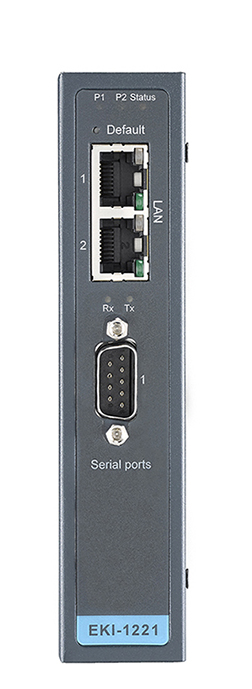

1-port Modbus Gateway

SKU: EKI-1221-CE
GTIN (EAN/UPC): 4719879822540
Brand: Advantech
https://safeconsulting.no/web/image/product.template/12921/image_1920?unique=35ab79b

kr 3,716.18 3716.1800000000003 NOK kr 3,716.18 VAT Excluded

kr 3,716.18 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Summary Description

    The EKI-1221-CE is a 1-Port RS-232/422/485 Serial Modbus Gateway designed to integrate Modbus TCP and Modbus RTU/ASCII networks, offering LAN redundancy.

    Key Features

    • Redundant Ethernet ports for reliability
    • Integration of Modbus TCP and RTU/ASCII
    • Supports up to 921.6 kbps baud rate
    • DIN-rail and wall mounting options
    • Built-in surge and ESD protection

    Key Applications

    • Industrial Automation
    • Remote Monitoring
    • Data Collection Systems

    Description

    The EKI-1221-CE 1-Port Modbus Gateway provides dual 10/100 Mbps Ethernet ports for LAN redundancy. It supports Modbus TCP and Modbus RTU/ASCII integration, with selectable RS-232/422/485 communication settings. The gateway supports up to 921.6 kbps baud rate, with protection against surges and ESD for enhanced reliability and mounting flexibility.

    Product Specifications

    Specification Details
    Power
    Power Consumption
    • 3.2W
    Power Input (DC)
    • 12 ~ 48 VDC, redundant dual inputs
    Power Operating Current
    • 0.7A @ 24 V
    Redundant Dual Inputs
    • Yes
    Protection
    Port to Port Isolation
    • -
    Reverse Polarity
    • Present
    Serial Communication
    RS-232
    • Yes
    RS-422
    • Yes
    RS-485
    • Yes
    Serial Port Connector Type
    • DB9 male
    Serial Port Number
    • 1
    Software
    Baud Rate
    • 50 ~ 921.6 Kbps
    Configuration
    • Windows utility, Web Browser
    Driver
    • Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
    Operation Mode
    • Modbus RTU Client/Server, Modbus ASCII Client/Server
    Environment
    Operating Temperature
    • -10 ~ 60°C (14 ~ 140°F)
    Storage Temperature
    • -40 ~ 85°C (-40 ~ 185°F)
    Mechanism
    Dimensions (W x H x D)
    • 36.6 x 140 x 95 mm (1.44 x 5.51 x 3.74 in.)
    Enclosure (Metal)
    • Metal with solid mounting hardware
    IP Rating
    • IP30
    Mounting (DIN-rail)
    • Yes
    Mounting (Wall)
    • Yes
    Weight
    • 0.472 kg
    Ethernet Communication
    Ethernet Standard
    • IEEE 802.3 , 802.3ab , 802.3u
    RJ-45 Port Connector Type
    • RJ-45
    RJ-45 Port Number
    • 2
    RJ-45 Transmission Speed
    • 10/100 Mbps
    Certification
    EMC
    • CE, FCC
    EMI
    • EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
    EMS
    • EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
    Freefall
    • IEC 60068-2-32
    Safety
    • IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX
    Shock
    • IEC 60068-2-27
    Vibration
    • IEC 60068-2-6
    Warranty
    Warranty Period
    • 5 years
    Protocol Support
    Modbus ASCII
    • Yes
    Ethernet
    • Yes
    Modbus RTU
    • Yes
    Modbus TCP
    • Yes
