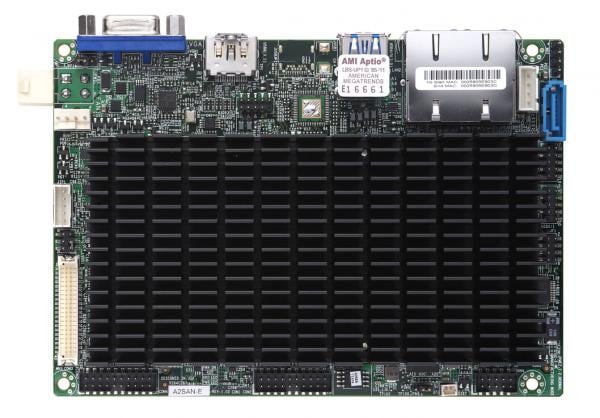

A2SAN-E,Embed 3.5"SBC,Apollo Lake Atom SoC,4 Core-BULK

• Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
• Intel® Atom processor E3940 (9.5W, 4C)
• Dual LAN with Intel® Ethernet Controller I210-IT
• 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
• Intel® Goldmont microarchitecture 14nm System-on-Chip
• 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
• Supports 12V DC power input
• 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays
• Supports on board TPM 2.0
• Wide temperature suppot from -30°C to 75°C

• Industrial automation
• Embedded systems
• IoT
• Medical devices
• Digital signage

The Supermicro MBD-A2SAN-E-B is engineered for reliable performance in a compact 3.5" SBC form factor. It features an Intel Atom processor E3940, which is ideal for various embedded applications. The motherboard supports up to 8GB of DDR3L non-ECC SO-DIMM memory and provides extensive connectivity options including dual LAN, multiple USB ports, serial communication interfaces, and a variety of expansion slots such as Mini-PCIe and M.2. Designed with Intel HD Graphics, it supports up to three independent displays. The board also includes onboard TPM 2.0 and can operate in temperatures ranging from -30°C to 75°C, making it suitable for a wide range of industrial and embedded applications.
