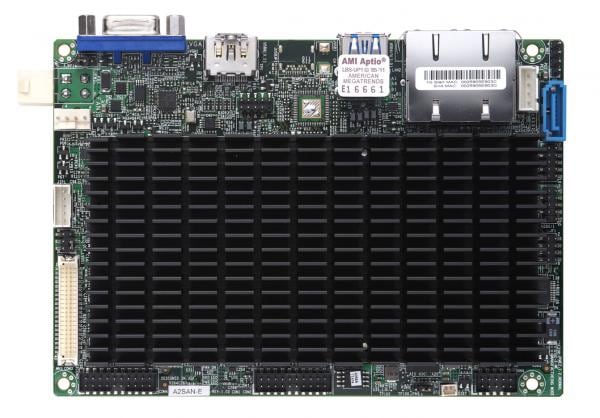

A2SAN-E,Embed 3.5"SBC,Apollo Lake Atom SoC,4 Core-BULK

MBD-A2SAN-E-B
https://safeconsulting.no/web/image/product.template/10180/image_1920?unique=5e77b27

kr 2,424.57 2424.57 NOK kr 2,424.57

kr 2,424.57

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-A2SAN-E-B motherboard offers robust performance and versatile functionality with its Intel Atom processor E3940. Designed for 3.5" SBC form factor, it supports up to 8GB DDR3L memory, dual LAN, multiple USB and serial ports, along with comprehensive power input and temperature support.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3940 (9.5W, 4C)
    • Dual LAN with Intel® Ethernet Controller I210-IT
    • 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
    • Supports 12V DC power input
    • 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays
    • Supports on board TPM 2.0
    • Wide temperature suppot from -30°C to 75°C

    Key Applications

    • Industrial automation
    • Embedded systems
    • IoT
    • Medical devices
    • Digital signage

    Description

    The Supermicro MBD-A2SAN-E-B is engineered for reliable performance in a compact 3.5" SBC form factor. It features an Intel Atom processor E3940, which is ideal for various embedded applications. The motherboard supports up to 8GB of DDR3L non-ECC SO-DIMM memory and provides extensive connectivity options including dual LAN, multiple USB ports, serial communication interfaces, and a variety of expansion slots such as Mini-PCIe and M.2. Designed with Intel HD Graphics, it supports up to three independent displays. The board also includes onboard TPM 2.0 and can operate in temperatures ranging from -30°C to 75°C, making it suitable for a wide range of industrial and embedded applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAN-E
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP
    Core
    • Up to 4 cores, 4 threads
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210IT
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s), 1 HDMI port(s), 1 LVDS port(s)
    Serial Port
    • 4 COM Port(s) (4 header),
    TPM
    • 1 TPM Chip
    Others
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    • 1 Panel backlight power header
    • 1 HD Audio header Mic-in/Headphone-out(Audio only support at 0~60C)
    Expansion Slots
    PCIe
    • 1 Full size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1)
    • 1 M.2 2280 B-Key (PCIe Gen2 x 1,SATA x 1)
    M.2
    • M.2 Interface: SATA; PCIe 2.0 x1; USB 2.0
    • Form Factor: 2280
    • Key: B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.5
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • -30°C - 75°C (-22°F - 167°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    A2SAN-E Heatsink
    SNK-C0107L1A2SAN-E Heatsink Height 29mm
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    Retail Package
    A2SAN-E Heatsink
    SNK-C0107L1A2SAN-E Heatsink Height 29mm
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CUSB-09841COM Cable 20cm
    QRG
    MNL-1935-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    M.2 Module bracket
    MCP-290-00161-0N1Bracket for add 2242/3042 module support
    Mini PCIe extended bracket
    MCP-110-00097-0N1Mini PCIe extended bracket to extend half size to full size
