Embedded Apollo Lake-I mITX,7 Year,Dual 1GbE,M.2, 2x

Name: Embedded Apollo Lake-I mITX,7 Year,Dual 1GbE,M.2, 2x
Brand: supermicro
SKU: MBD-A2SAV-2C-L-O
Price: 2147.57 NOK
Availability: OutOfStock

SKU:

MBD-A2SAV-2C-L-O

kr 2 147,57 2147.57 NOK kr 2 147,57

kr 2 147,57

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

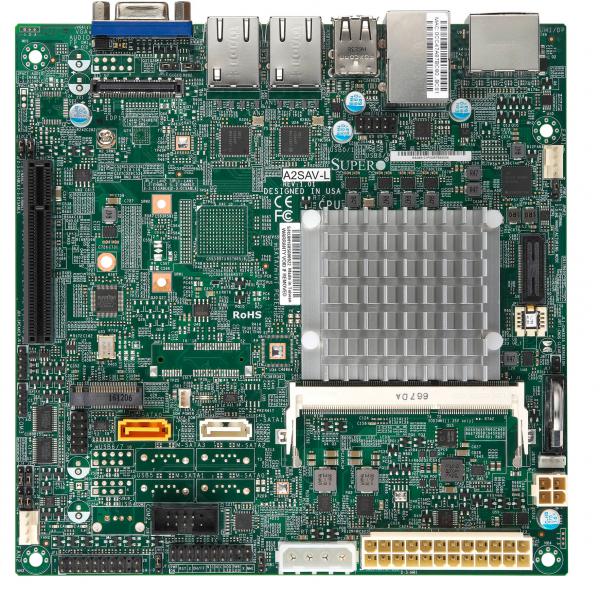

Supermicro MBD-A2SAV-2C-L offers high performance with Intel® Atom E3930 processor in a compact Mini-ITX form factor, supporting up to 8GB DDR3L memory, dual GbE LAN, and multiple expansion options.

Key Features

Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
Intel® Atom processor E3930 (6.5W, 2C)
1 PCIe 2.0 x2 (in x8), and 2 SATA 3.0
Dual GbE LAN with Intel® i210-AT
Intel® Goldmont microarchitecture 14nm System-on-Chip
1 M.2 M-key with SATA
12V DC Input and ATX Power Source
1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays
2 USB 3.0 ports, 4 USB 2.0 ports, 3 COM ports, and 1 DOM connector

Key Applications

Embedded Systems
Networking Devices
Industrial Computing
Digital Signage
IoT Applications

Description

The Supermicro MBD-A2SAV-2C-L Mini-ITX motherboard delivers robust performance and flexible connectivity for a wide range of applications. Leveraging Intel® Atom processor E3930, it supports up to 8GB of 1866 MHz DDR3L memory, ensuring efficient multitasking and responsiveness. This motherboard features a comprehensive set of input/output options, including dual GbE LAN, multiple USB ports, and various video outputs for versatile use cases.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-A2SAV-2C-L
Physical Stats
Form Factor	Mini-ITX
Dimension	6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU	Intel® Atom® Processor E3930
System Memory
Memory Capacity
Memory Type	1866 MT/s DDR3L up to 8GB
DIMM Sizes	2GB, 4GB, 8GB
Memory Voltage	1.35V
On-Board Devices
Chipset	System on Chip
SATA	SoC controller for 2 SATA3 (6 Gbps) ports
Graphics	1 Intel® HD Graphics port(s)
Network Controllers	Dual LAN with Intel® Ethernet Controller I210IT
Input / Output
USB	4 USB 2.0 port(s) (2 via header; 2 rear) 2 USB 3.0 port(s) (2 rear)
Video Output	1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
Serial Port	3 COM Port(s) (1 rear; 2 header)
Others	1 COM in RJ45 1 COM in RS232 1 COM in RS485
Expansion Slots
PCIe	1 PCIe 2.0 x2 (in x8 slot)
M.2	Form Factor: 2280, 2242 Double Height Connector
System BIOS
BIOS Type	AMI UEFI
Management
Software	SuperDoctor® 5, Watchdog
Power Configurations	ACPI Power Management
PC Health Monitoring
Voltage	+5V standby, +5V, +12V
FAN	2x 4-pin fan headers (up to 2 fans) PWM fan speed control Low noise fan speed control Fan speed control
Other Features	WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range	-30°C - 70°C (-22°F - 158°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Cables
CBL-0044L	1	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00058-0N	1	A2SAV-L standard 2U I/O Shield
Retail Package
I/O Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00058-0N	1	A2SAV-L standard 2U I/O Shield

Optional Part List

Part Number	Quantity	Description
1U I/O Shield
MCP-260-00068-0B	1	1U I/O Shield for A2SAV-L with EMI Gasket in CSE-510/505/504
