    Summary Description

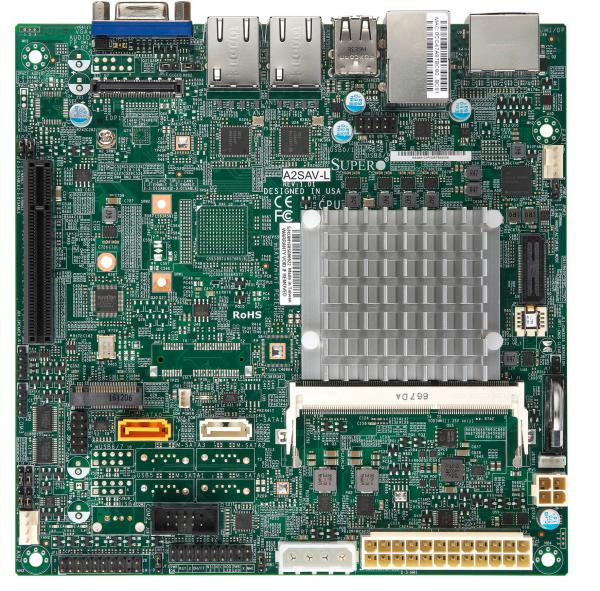

    Supermicro MBD-A2SAV-2C-L offers high performance with Intel® Atom E3930 processor in a compact Mini-ITX form factor, supporting up to 8GB DDR3L memory, dual GbE LAN, and multiple expansion options.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3930 (6.5W, 2C)
    • 1 PCIe 2.0 x2 (in x8), and 2 SATA 3.0
    • Dual GbE LAN with Intel® i210-AT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 M.2 M-key with SATA
    • 12V DC Input and ATX Power Source
    • 1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays
    • 2 USB 3.0 ports, 4 USB 2.0 ports, 3 COM ports, and 1 DOM connector

    Key Applications

    • Embedded Systems
    • Networking Devices
    • Industrial Computing
    • Digital Signage
    • IoT Applications

    Description

    The Supermicro MBD-A2SAV-2C-L Mini-ITX motherboard delivers robust performance and flexible connectivity for a wide range of applications. Leveraging Intel® Atom processor E3930, it supports up to 8GB of 1866 MHz DDR3L memory, ensuring efficient multitasking and responsiveness. This motherboard features a comprehensive set of input/output options, including dual GbE LAN, multiple USB ports, and various video outputs for versatile use cases.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAV-2C-L
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Atom® Processor E3930
    System Memory
    Memory Capacity
    Memory Type
    • 1866 MT/s DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 2 SATA3 (6 Gbps) ports
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210IT
    Input / Output
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
    Serial Port
    • 3 COM Port(s) (1 rear; 2 header)
    Others
    • 1 COM in RJ45
    • 1 COM in RS232
    • 1 COM in RS485
    Expansion Slots
    PCIe
    • 1 PCIe 2.0 x2 (in x8 slot)
    M.2
    • Form Factor: 2280, 2242
    • Double Height Connector
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    Voltage
    • +5V standby, +5V, +12V
    FAN
    • 2x 4-pin fan headers (up to 2 fans)
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • -30°C - 70°C (-22°F - 158°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L157.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1A2SAV-L standard 2U I/O Shield
    Retail Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1A2SAV-L standard 2U I/O Shield

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00068-0B11U I/O Shield for A2SAV-L with EMI Gasket in CSE-510/505/504
