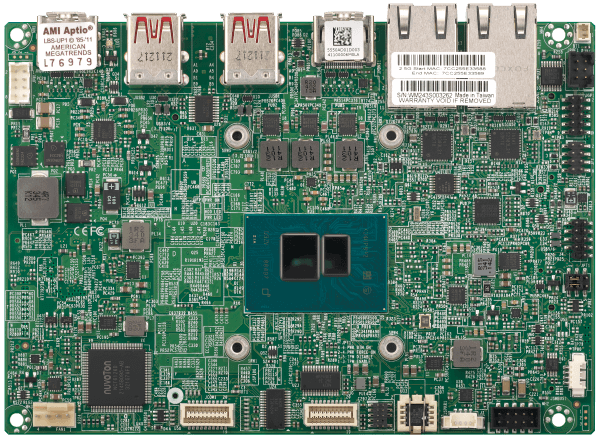

[NR]A4SAN-H w/o HS,3.5"SBC,ASL,UP IoT,x7835RE,SOC,8C,TDP12W,

Name: [NR]A4SAN-H w/o HS,3.5"SBC,ASL,UP IoT,x7835RE,SOC,8C,TDP12W,
Brand: supermicro
SKU: MBD-A4SAN-H-WOHS-B
Price: 3901.2 NOK
Availability: OutOfStock

SKU:

MBD-A4SAN-H-WOHS-B

kr 3 901,20 3901.2000000000003 NOK kr 3 901,20

kr 3 901,20

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Terms and Conditions

Summary Description

The Supermicro MBD-A4SAN-H-WOHS-B features the Intel Atom x7835RE Processor, supporting DDR5 memory, dual 2.5GbE, multiple USB ports, HDMI, LVDS, and wide temperature support, designed for embedded and industrial applications.

Key Features

Intel® Atom® Processor x7835RE (12W, 8C)
DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported
M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
9-36V wide range power with RVP and TVS
Wide temperature suppot from -40°C to 75°C
4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
2 HDMI, 1 48bit LVDS, Intel HD Graphics 3 independent displays

Key Applications

Industrial Automation
Edge Computing
Embedded Systems
IoT Gateways
Network Appliances
Medical Devices

Description

The Supermicro MBD-A4SAN-H-WOHS-B motherboard offers a robust solution enhanced by Intel Atom x7835RE Processor, dual 2.5GbE, DDR5 RAM support, multiple I/O ports, and a wide operating temperature range. Ideal for embedded and industrial use, it ensures reliable performance in harsh environments.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-A4SAN-H-WOHS
Physical Stats
Form Factor	3.5" SBC
Dimension	5.7" x 4" (14.6cm x 10.16cm)
Processor
CPU	Intel® Atom® Processor x7835RE Single Socket FCBGA-1264 supported, CPU TDP supports Up to 12W TDP
Core	Up to 8 cores / 6MB Cache
System Memory
Memory Capacity	1 DIMM slots Up to 16GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
Memory Type	4800 MT/s non-ECC DDR5 SODIMM Unbuffered DDR5 up to 16GB
DIMM Sizes	8GB, 16GB SODIMM: 8GB, 16GB
Memory Voltage	1.1V
On-Board Devices
Chipset	System on Chip
Audio	ALC 888S HD Audio
Graphics	1 Intel® UHD Graphics port(s)
Network Controllers	Dual LAN with Intel® Ethernet Controller I226-AT
Input / Output
USB	4 USB 3.2 Gen2 port(s) (4 rear) 1 USB 2 port(s) (1 via header)
Video Output	2 HDMI port(s), 1 48-bit LVDS port(s)
TPM	1 TPM Chip
Others	1 8-bit GPIO header 1 System Fan 1 HD Audio header (Mic-in/Headphone-out) 1 SMBus/I2C header 1 Speaker w/ 3W amp.
Expansion Slots
PCIe	No/A
M.2	M.2 Interface: 1 SATA/PCIe3.0 x1/USB3/USB2; 1 SATA/PCIe3.0 x1; 1 PCIe3.0 x1/USB2 Form Factor: 2242/3052/2280, 2242/2280, 2230 Key: B-Key, M-Key, E-Key
System BIOS
BIOS Type	32MB AMI UEFI
BIOS Features	ACPI 6.4 SMBIOS 3.3 UEFI 2.7 PCI FW3.0 RTC (Real Time Clock) Wakeup
PC Health Monitoring
FAN	1x 4-pin fan header (up to 1 fan)
Operating Environment
Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
DC IN Power cable
CBL-PWEX-1029	1	DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
Retail Package
Audio Cable
CBL-OTHR-0986	1	Audio Cable 20cm
COM Cable
CBL-CDAT-0665	2	COM Cable 20cm
DC IN Power cable
CBL-PWEX-1029	1	DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
QRG
MNL-2690-QRG	1	Motherboard Quick Reference Guide
USB Cable
CBL-CUSB-0983	1	USB2.0 cable 20cm

Optional Part List

Part Number	Quantity	Description
DC IN Power Cable (DC Jack)
CBL-PWEX-1110-15	1	DC power jack,vertical to 2x4, 2.0mm, 15cm
Heatspreader
MCP-350-10105-0B	1	Aluminum block Heatspreader for A4SAN
Power Adapter
MCP-250-10134-0N	1	60W Lockable AC to DC power adapter without power cord
