[NR]A4SAN-H w/o HS,3.5"SBC,ASL,UP IoT,x7835RE,SOC,8C,TDP12W,

MBD-A4SAN-H-WOHS-B
https://safeconsulting.no/web/image/product.template/10114/image_1920?unique=7c1c8fe

kr 4,291.57 4291.57 NOK kr 4,291.57

kr 4,291.57

Not Available For Sale

    This combination does not exist.

    Summary Description

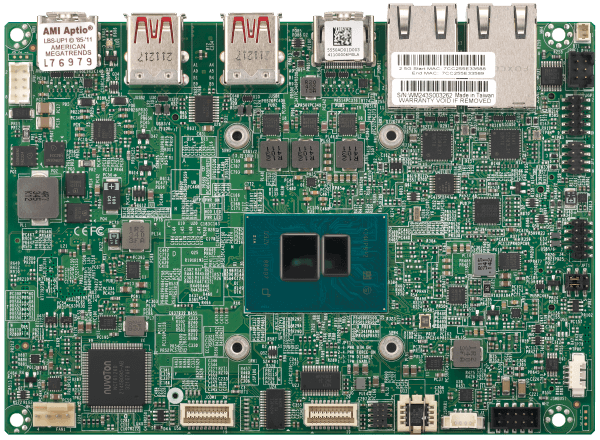

    The Supermicro MBD-A4SAN-H-WOHS-B is a robust 3.5-inch SBC motherboard that features the Intel® Atom® Processor x7835RE with 8 cores. It supports DDR5 memory, dual 2.5GbE, multiple M.2 slots, and a wide range of power and temperature operations.

    Key Features

    • Intel® Atom® Processor x7835RE (12W, 8C)
    • DDR5 4800 MHz, SODIMM x 1, Up to16GB, In-Band ECC supported
    • M.2 M-Key 2242/2280, M.2 E-key 2230, M.2 B-key 2240/3052/2280
    • Dual 2.5GbE, M.2 B-key w/ nano SIM & 5G module supported
    • 9-36V wide range power with RVP and TVS
    • Wide temperature suppot from -40°C to 75°C
    • 4 USB3.2, 2 USB2.0, 4COM ports, audio with AMP, SMBus/I2C, 8bit GPIO
    • 2 HDMI, 1 48bit LVDS, Intel  HD Graphics 3 independent displays

    Description

    The Supermicro MBD-A4SAN-H-WOHS-B is a versatile 3.5-inch SBC ideal for industrial and edge computing applications. It features an Intel® Atom® Processor x7835RE with up to 8 cores, support for DDR5 SODIMM memory up to 16GB, multiple M.2 slots, and dual 2.5GbE ports. The board supports a wide voltage range from 9V to 36V and operates in extreme temperatures from -40°C to 75°C. I/O options include multiple USB ports, HDMI, LVDS, serial interfaces, and comprehensive expansion capabilities.

    Product Specifications

    Product SKUs
    MBD-A4SAN-H-WOHS
    Physical Stats
    Form Factor3.5" SBC
    Dimension5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPUIntel® Atom® Processor x7835RE
    Single Socket FCBGA-1264 supported, CPU TDP supports Up to 12W TDP
    CoreUp to 8 cores / 6MB Cache
    System Memory
    Memory Capacity1 DIMM slots
    Up to 16GB Unbuffered non-ECC SODIMM, DDR5-4800MT/s
    Memory Type4800 MT/s non-ECC DDR5 SODIMM Unbuffered DDR5 up to 16GB
    DIMM Sizes8GB, 16GB
    SODIMM: 8GB, 16GB
    Memory Voltage1.1V
    On-Board Devices
    ChipsetSystem on Chip
    AudioALC 888S HD Audio
    Graphics1 Intel® UHD Graphics port(s)
    Network ControllersDual LAN with Intel® Ethernet Controller I226-AT
    Input / Output
    USB4 USB 3.2 Gen2 port(s) (4 rear)
    1 USB 2 port(s) (1 via header)
    Video Output2 HDMI port(s), 1 48-bit LVDS port(s)
    TPM1 TPM Chip
    Others1 8-bit GPIO header
    1 System Fan
    1 HD Audio header (Mic-in/Headphone-out)
    1 SMBus/I2C header
    1 Speaker w/ 3W amp.
    Expansion Slots
    PCIeN/A
    M.2M.2 Interface: 1 SATA/PCIe3.0 x1/USB3/USB2; 1 SATA/PCIe3.0 x1; 1 PCIe3.0 x1/USB2
    Form Factor: 2242/3052/2280, 2242/2280, 2230
    Key: B-Key, M-Key, E-Key
    System BIOS
    BIOS Type32MB AMI UEFI
    BIOS FeaturesACPI 6.4
    SMBIOS 3.3
    UEFI 2.7
    PCI FW3.0
    RTC (Real Time Clock) Wakeup
    PC Health Monitoring
    FAN1x 4-pin fan header (up to 1 fan)
    Operating Environment
    Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)

    Standard Part List

    DC IN Power cable
    Part NumberQuantityDescription
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Audio Cable
    Part NumberQuantityDescription
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    Part NumberQuantityDescription
    CBL-CDAT-06652COM Cable 20cm
    QRG
    Part NumberQuantityDescription
    MNL-2690-QRG1Motherboard Quick Reference Guide
    USB Cable
    Part NumberQuantityDescription
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    DC IN Power Cable (DC Jack)
    Part NumberQuantityDescription
    CBL-PWEX-1110-151DC power jack,vertical to 2x4, 2.0mm, 15cm
    Heatspreader
    Part NumberQuantityDescription
    MCP-350-10105-0B1Aluminum block Heatspreader for A4SAN
    Power Adapter
    Part NumberQuantityDescription
    MCP-250-10134-0N160W Lockable AC to DC power adapter without power cord
